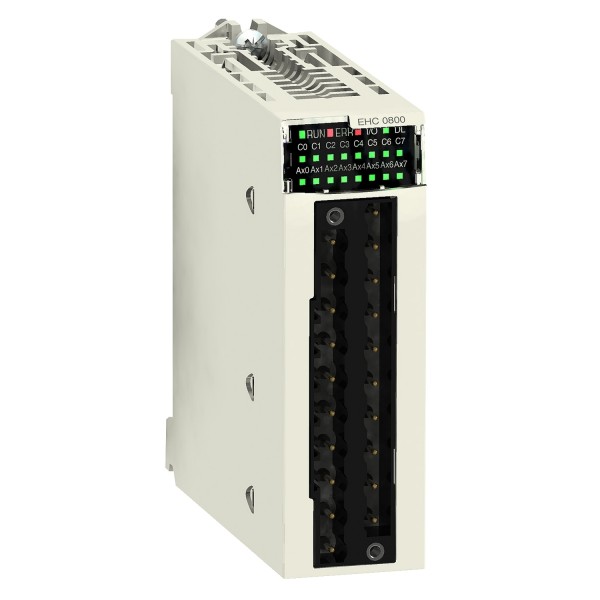

high speed counter module M340 - 8 channels

Ülevaaded: 0

Tootekood: BMXEHC0800

Quick Overview

Saadavus: Tellimisel

958,75 € (ilma KM-ta)

Details

Main
range of product
Modicon M340 automation platform
product or component type
Counter module
number of channels
8
maximum counting frequency
10000 Hz
number of inputs
2 single mode)
3 special dual phase mode)
input compatibility
19,2…30 V 2-wire/3-wire proximity sensor
incremental encoder with push-pull outputs, 10...30 V totem pole
input voltage
24 V DC type 3
Complementary
counter functions
Up/down counter
32-bit counter counting
Frequency meter
Loop (modulo) counting
Count events
Down counting
cycle time
5 ms
isolation voltage
1500 V 60 s
input type
High speed
input voltage limits
30 V
input current
2 mA at 11 V
voltage state 1 guaranteed
11...30 V
current state 1 guaranteed
>= 6 mA
voltage state 0 guaranteed
< 5 V
current state 0 guaranteed
<= 1.5 mA
electrical connection
1 connector 20 pins
current consumption
200 mA 3.3 V DC bus
80 mA 24 V DC sensor
module format
Standard
net weight
0,113 kg
Environment
ambient air temperature for operation
0…60 °C
relative humidity
10…95 % without condensation
IP degree of protection
IP20
directives
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
2012/19/EU - WEEE directive
standards
EN 61131-2
EN 61000-6-4
EN 61000-6-2
EN 61010-2-201
protective treatment
TC
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
