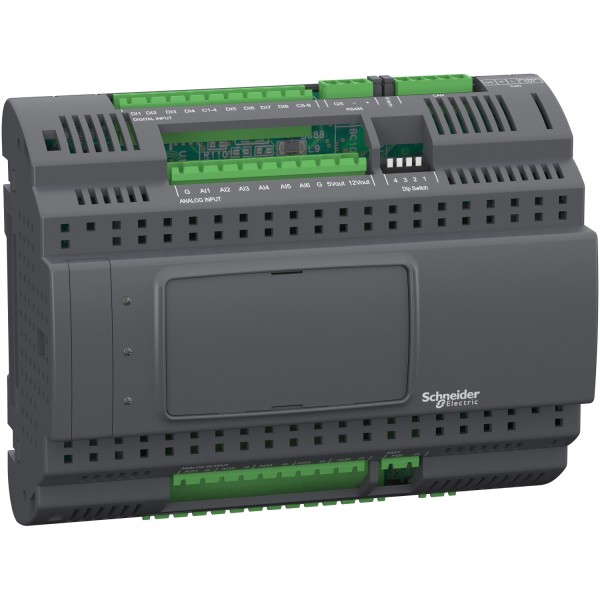

Modicon M171 Performance expansion 27 I/Os

Tootekood: TM171EP27R

Quick Overview

Saadavus: Tellimisel

568,23 € (ilma KM-ta)

Qty:

Details

Main
range of product	Modicon M171/M172
product or component type	Additional I/O module
product specific application	HVAC and pumping solution
Total inputs/outputs	27
discrete input number	8
discrete output number	3 for relay outputs SPST with same common 2 for relay outputs SPST with same common 2 for relay outputs SPDT with independent common
discrete output current	8 A for relay SPDT 5 A for relay SPST
analogue input number	2 analog input NTC 4 configurable
analogue output number	3 voltage/current, range: 4...20 mA or 0...10 V 2 open collector, range: 1 kHz, 12 V, 35 mA

Complementary
number of port	1 CAN port - screw terminal block
input/output number	6 analog input(s) 5 analog output(s) 8 digital input(s) 7 digital output(s) 1 high-speed counter(s)
discrete input logic	Sink or source (positive/negative)
discrete input voltage	24 V AC/DC 48 V DC
discrete input current	2.5 mA
input impedance	20 kOhm
analogue input type	voltage 0...5 V (ratiometric) current 4...20 mA impedance 0...1500 hOhm impedance 0...300 daOhm direct input NTC temperature probe - 50...110 °C - resolution: 0.1 °C (extended) voltage 0...10 V Pt 1000 temperature probe - 200...800 °C - resolution: 0.1 °C NTC temperature probe - 40...150 °C - resolution: 0.1 °C
sensor power supply	5 V DC at 50 mA 12 V DC at 150 mA
[Us] rated supply voltage	24 V AC 48 V
realtime clock	Without clock at -20…55 °C
display type	Without display
overvoltage category	II
mounting support	DIN rail
width	140 mm
height	110 mm
depth	61.6 mm
net weight	0.19 kg

Environment
directives	86/188/EEC - physical agents (noise) directive 1907/2006/EC - REACH directive 2011/65/EU - RoHS directive 2006/95/EC - low voltage directive
standards	EN/IEC 60730
product certifications	CE CURus EAC CSA
ambient air temperature for operation	-20…55 °C conforming to UL 60730-1
ambient air temperature for storage	-40…85 °C
relative humidity	10…90 % non-condensing
IP degree of protection	IP20
pollution degree	2

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
