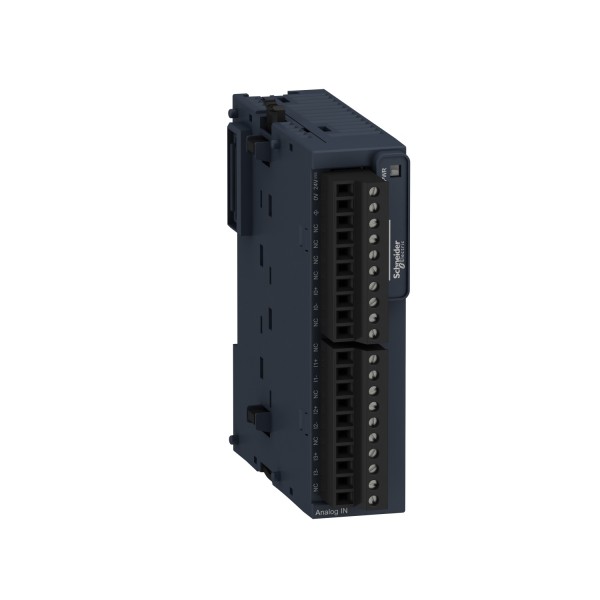

Modicon TM3 - 4 analog inputs (screw) 24Vdc

Ülevaaded: 0

Tootekood: TM3AI4

Quick Overview

Saadavus: Tellimisel

234,46 € (ilma KM-ta)

Details

Main
range of product
Modicon TM3
product or component type
Analog input module
range compatibility
Modicon M241
Modicon M221
Modicon M251
analogue input number
4
analogue input type
current 4...20 mA
current 0...20 mA
voltage 0...10 V
voltage - 10...10 V
Complementary
analogue input resolution
12 bits
11 bits + sign
permissible continuous overload
13 V, analogue input type: voltage
40 mA, analogue input type: current
input impedance
<= 50 Ohm current
>= 1 MOhm voltage
LSB value
2.44 mV 0...10 Vvoltage
4.88 mV - 10...10 Vvoltage
4.88 µA 0...20 mAcurrent
3.91 µA 4...20 mAcurrent
conversion time
1 ms + 1 ms per channel + 1 controller cycle time
sampling duration
1 ms
absolute accuracy error
+/- 0.1 % of full scale at 25 °C
+/- 1 % of full scale
temperature drift
+/- 0.006 %FS/°C
repeat accuracy
+/-0.5 %FS
non-linearity
+/- 0.2 %FS
cross talk
<= 1 LSB
[Us] rated supply voltage
24 V DC
supply voltage limits
20.4…28.8 V
type of cable
Twisted shielded pairs cable <30 m for input circuit
current consumption
35 mA at 5 V DC via bus connector no load
45 mA at 5 V DC via bus connector full load
30 mA at 24 V DC via external supply
local signalling
1 LED (green)PWR:
electrical connection
10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply
10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs
insulation
Between input and supply at 1500 V AC
Between input and internal logic at 500 V AC
marking
CE
surge withstand
1 kV power supply common mode conforming to EN/IEC 61000-4-5
0.5 kV power supply differential mode conforming to EN/IEC 61000-4-5
1 kV input common mode conforming to EN/IEC 61000-4-5
mounting support
Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715
plate or panel with fixing kit
height
90 mm
depth
70 mm
width
23.6 mm
net weight
0.11 kg
Environment
standards
EN/IEC 61131-2
EN/IEC 61010-2-201
resistance to electrostatic discharge
8 kV in air conforming to EN/IEC 61000-4-2
4 kV on contact conforming to EN/IEC 61000-4-2
resistance to electromagnetic fields
10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3
3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3
1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3
resistance to magnetic fields
30 A/m conforming to EN/IEC 61000-4-8
resistance to fast transients
1 kV (I/O) conforming to EN/IEC 61000-4-4
resistance to conducted disturbances
10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6
3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)
electromagnetic emission
Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011
Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011
immunity to microbreaks
10 ms
ambient air temperature for operation
-10…55 °C horizontal installation
-10…35 °C vertical installation
ambient air temperature for storage
-25…70 °C
relative humidity
10…95 %, without condensation (in operation)
10…95 %, without condensation (in storage)
IP degree of protection
IP20
pollution degree
2
operating altitude
0...2000 m
storage altitude
0…3000 m
vibration resistance
3.5 mm at 5…8.4 Hz on DIN rail
3 gn at 8.4…150 Hz on DIN rail
shock resistance
15 gn for 11 ms
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
