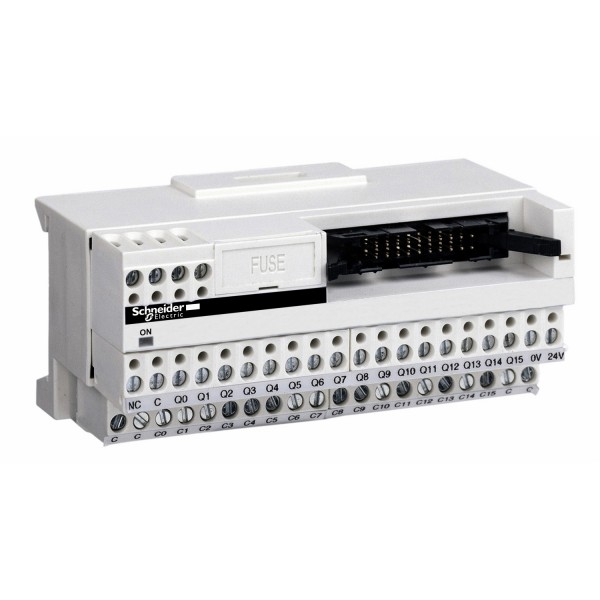

passive connection sub-base ABE7 - 16 inputs or outputs - Led

Tootekood: ABE7H16C11

Quick Overview

Saadavus: Tellimisel

81,86 € (ilma KM-ta)

Qty:

Details

Main
range of product	Modicon ABE7
product or component type	Passive discrete I/O sub-base
sub-base type	Miniature sub-base
[Us] rated supply voltage	19...30 V IEC 61131-2
number of channels	16
number of terminal per channel	1
connections - terminals	Screw type terminals, 1 x 0.09...1 x 1.5 mm², 0,09…1,5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm², 0,14…2,5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm², 0,14…2,5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm², 0,09…0,75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm², 0,2…2,5 mm² AWG 24...AWG 14) solid

Complementary
supply voltage type	DC
number of horizontal rows	1
status LED	Channel status 1 LED per channel green) Power ON 1 LED green)
polarity distribution	No
short-circuit protection	2 A internal fuse, 5 x 20 mm, fast blow PLC end)
fixing mode	By clips 35 mm symmetrical DIN rail) By screws solid plate with fixing kit)
maximum supply current	1,8 A
current per channel	0,5 A
maximum current per output common	1,8 A
voltage drop on power supply fuse	0,3 V
[Ui] rated insulation voltage	2000 V
installation category	II IEC 60664-1
tightening torque	0,6 N.m flat Ø 3.5 mm
net weight	0,16 kg

Environment
product certifications	UL CSA BV LROS (Lloyds register of shipping) DNV GL
IP degree of protection	IP2x IEC 60529
resistance to incandescent wire	750 °C 30 s IEC 60695-2-11
shock resistance	15 gn 11 ms IEC 60068-2-27
vibration resistance	2 gn 10…150 Hz)IEC 60068-2-6
resistance to electrostatic discharge	4 kV contact) level 3 IEC 61000-4-2 8 kV air) level 3 IEC 61000-4-2
resistance to radiated fields	10 V/m 26000000…1000000000 Hz)IEC 61000-4-3 level 3
resistance to fast transients	2 kV level 3 IEC 61000-4-4
ambient air temperature for operation	-5…60 °C IEC 61131-2
ambient air temperature for storage	-40…80 °C IEC 61131-2
pollution degree	2 IEC 60664-1

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
