Details
Characteristics

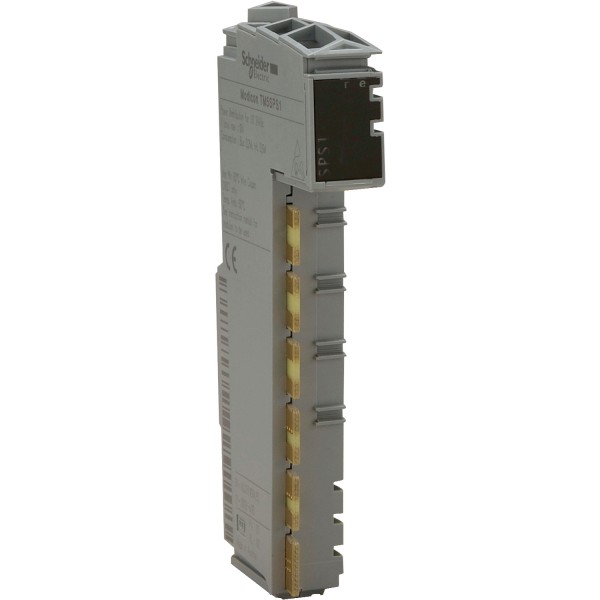

| range of product | Modicon TM5 | |
|---|---|---|
| product or component type | Power distribution module with internal fuse | |
| product specific application | Supply 24 V DC I/O modules |
| range compatibility | Modicon M258Modicon LMC058 | |
|---|---|---|
| product compatibility | Motion controllerLogic controller | |
| [Us] rated supply voltage | 24 V | |
| network type | DC | |
| current supplied | 6.3 A for I/O power segment | |
| maximum power dissipation in W | 1.02 W | |
| colour | Grey | |
| short-circuit protection | 6.3 A internal fuse | |
| current consumption | <= 34 mA 24 V DC | |
| marking | CE |
| standards | IEC 61131-2UL 508CSA C22.2 No 142CSA C22.2 No 213 | |
|---|---|---|
| product certifications | C-TickCSAGOST-RCULus | |
| ambient air temperature for operation | -10…55 °C without (horizontal installation)55…60 °C with derating factor (horizontal installation)-10…50 °C (vertical installation) | |
| ambient air temperature for storage | -25…70 °C | |
| relative humidity | 5…95 % without condensation | |
| operating altitude | 0...2000 m | |
| storage altitude | 0…3000 m | |
| vibration resistance | 1 gn at 8.4…150 Hz on DIN rail3.5 mm at 5…8.4 Hz on DIN rail | |
| shock resistance | 15 gn for 11 ms | |
| resistance to electrostatic discharge | 4 kV on contact conforming to EN/IEC 61000-4-28 kV in air conforming to EN/IEC 61000-4-2 | |
| resistance to electromagnetic fields | 1 V/m 2...2.7 GHz conforming to EN/IEC 61000-4-310 V/m 80...2000 MHz conforming to EN/IEC 61000-4-3 | |
| resistance to fast transients | 1 kV (I/O) conforming to EN/IEC 61000-4-41 kV (shielded cable) conforming to EN/IEC 61000-4-42 kV (power lines) conforming to EN/IEC 61000-4-4 | |
| surge withstand | 0.5 kV differential mode conforming to EN/IEC 61000-4-51 kV common mode conforming to EN/IEC 61000-4-5 | |
| electromagnetic compatibility | EN/IEC 61000-4-6 | |
| disturbance radiated/conducted | CISPR 11 |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
|---|
