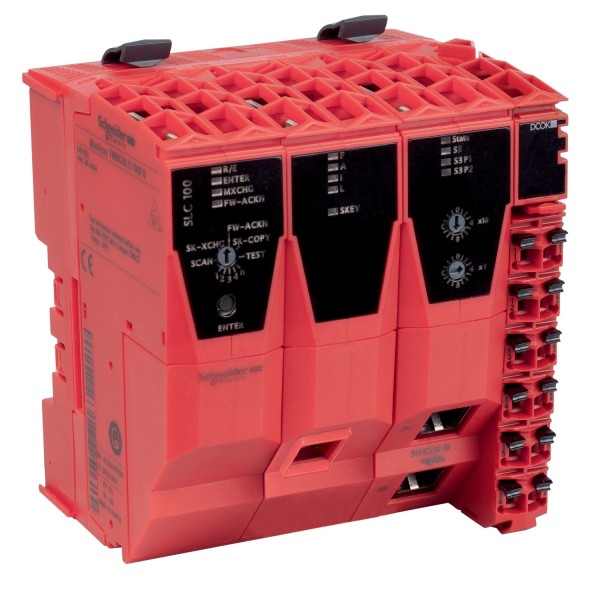

Safe logic controller - CPU standard - SERCOS III interface - 20 nodes - Kontrollerid - Tööstusautomaatika

Details

Main
range of product	Modicon TM5
product or component type	Controller system
device application	Safety logic controller
processor name	Intel Xscale 266 MHz
reverse polarity protection	Yes

Complementary
communication network type	SERCOS III (Ethernet)
transmission rate	100 Mbit/s for full duplex bus length
cycle time	1 ms
realtime clock	With non-volatile memory
number of devices	2 shielded RJ45 1 memory key slot
function available	Support max 20 safety nodes With 2 internal switch
maximum cable distance between devices	100 m between station
rated voltage	24 V -15...20 %
input protection type	Integrated fuse (not interchangeable)
power consumption in W	5.1 W
type of cooling	Fanless
marking	CE
safety level	SIL 3 conforming to IEC 61508 SIL 3 conforming to IEC 62061 PL = e conforming to EN 13849-1
safety reliability data	PFH < 1E-9 MTTFd > 100 years PFD < 1E-5
local signalling	1 LED (green or orange)application run or SoSafe debug mode: 1 LED (green)authorization status: 1 LED (orange)configuration status (Ready): 1 LED (orange)firmware status: 4 LEDs (red)boot status: 1 LED (orange)memory key status:
colour	Red
width	87.5 mm
height	99 mm
depth	75 mm
net weight	0.29 kg

Environment
ambient air temperature for operation	0…45 °C (vertical installation) 0…55 °C (horizontal installation)
ambient air temperature for storage	-25…70 °C
relative humidity	5…95 % without condensation
IP degree of protection	IP20
operating altitude	0...2000 m
standards	IEC 61511 IEC 61131-2 EN 13849-1 IEC 61508 IEC 62061
product certifications	GOST-R CULus

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
