Details
Müüdavad tooted

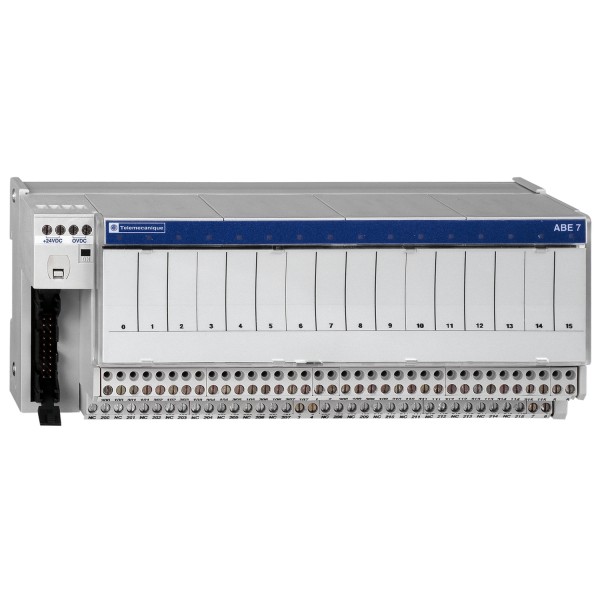

| range of product | Modicon ABE7 | |
|---|---|---|
| product or component type | Sub-base with plug-in electromechanical relay | |
| sub-base type | Output sub-base | |
| [Us] rated supply voltage | 19...30 V IEC 61131-2 | |
| number of channels | 16 |
| supply voltage type | DC | |
|---|---|---|
| product compatibility | ABR7S23 | |
| contacts type and composition | 1 C/O | |
| status LED | Channel status 1 LED per channel green)Power ON 1 LED green) | |
| polarity distribution | Volt-free | |
| short-circuit protection | 1 A internal fuse, 5 x 20 mm, fast blow PLC end) | |
| fixing mode | By clips 35 mm symmetrical DIN rail)By screws solid plate with fixing kit) | |
| maximum supply current | 1 A | |
| voltage drop on power supply fuse | 0,3 V | |
| [Ui] rated insulation voltage | 2000 V terminals/mounting rails300 V coil circuit/contact circuits IEC 60947-1 | |
| [Uimp] rated impulse withstand voltage | 2,5 kV | |
| installation category | II IEC 60664-1 | |
| tightening torque | 0,6 N.m flat Ø 3.5 mm | |
| net weight | 0,775 kg |
| product certifications | ULBVGLDNVLROS (Lloyds register of shipping)CSA | |
|---|---|---|
| IP degree of protection | IP2x IEC 60529 | |
| resistance to incandescent wire | 750 °C IEC 60695-2-11 | |
| shock resistance | 15 gn 11 ms IEC 60068-2-27 | |
| vibration resistance | 2 gn 10…150 Hz)IEC 60068-2-6 | |
| resistance to electrostatic discharge | 4 kV contact) level 3 IEC 61000-4-28 kV air) level 3 IEC 61000-4-2 | |
| resistance to radiated fields | 10 V/m 26000000…1000000000 Hz)IEC 61000-4-3 level 3 | |
| resistance to fast transients | 2 kV level 3 IEC 61000-4-4 | |
| ambient air temperature for operation | -5…60 °C IEC 61131-2 | |
| ambient air temperature for storage | -40…80 °C IEC 61131-2 | |
| pollution degree | 2 IEC 60664-1 |
| Jätkusuutliku pakkumise olek | Green Premium toode | |
|---|---|---|
| REACh-määrus | ||
| Ilma SVHC REACh-ta | Jah | |
| ELi RoHS direktiiv | Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon | |
| Elavhõbedavaba | Jah | |
| RoHS eranditeave | ||
| Hiina EoHS regulatsioon | ||
| Keskkonnaalane avaldus | ||
| Ringlusprofiil | ||
| WEEE | Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka. |
| Garantii | 18 months |
|---|
