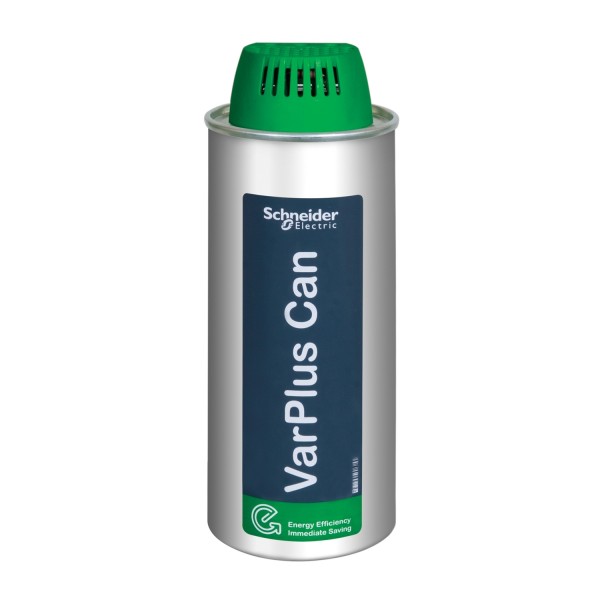

VarPlus Can Capacitor 31.5/37.8 kvar - 440V - 50/60Hz

Tootekood: BLRCH315A378B44

Quick Overview

Saadavus: Tellimisel

90,31 € (ilma KM-ta)

Details

Main
range of product
VarPlus Can
product or component type
Capacitor
network frequency
50/60 Hz
series name
HDuty
network harmonic content
<= 20 %
Electrical parameters
31.5 kvar 440 V 50 Hz
37.8 kvar 440 V 60 Hz
maximum permissible voltage
1.1 x Un (8 hours over 24 hours)
continuous overcurrent capacity
1.8 x In
rated voltage
440 V AC 50/60 Hz
Complementary
dielectric losses
< 0.2 W/kvar
power losses
< 0.5 W/kVAr
capacitance tolerance
- 5 % to 10 %
voltage test
2.15 x Un AC between terminals for 10 s
<= 660 V - 3 kV AC between terminal and container for 10 s
>= 660 V - 6 kV AC between terminal and container for 10 s
inrush current
250 x In
maximum switching operation per year
7000
service life in hours
130000 h
dielectric material
Metallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut)
impregnation material
Non-PCB dry PUR resin
Biodegradable
type of installation
Indoor installation
connections - terminals
ClampTite terminal
mounting mode
Upright/horizontal
diameter
136 mm
height
242 mm
net weight
3.2 kg
Environment
standards
IEC 60831-2
IEC 60831-1
IP degree of protection
IP20
operating altitude
2000 m
temperature class
D
ambient air temperature for operation
-25…55 °C
relative humidity
95 %
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
