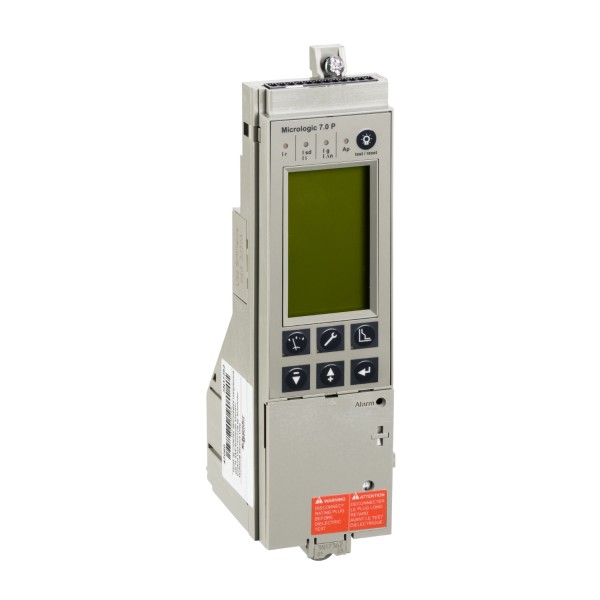

control unit Micrologic 7.0 P, Compact NS 630b to 1600 drawout, LSIV protections

Details

Main
range	Compact
product name	Micrologic
product or component type	Control unit
range compatibility	Compact NS630b...1600
device application	Distribution
poles description	3P 4P
protected poles description	4t 3t 3t + N/2
network type	AC
network frequency	50/60 Hz
trip unit name	Micrologic 7.0 P
trip unit technology	Electronic
trip unit protection functions	Selective + earth-leakage protection
protection type	Earth leakage Short time short-circuit protection Overload protection (long time) Instantaneous short-circuit protection
trip unit rating	630 A 50 °C 800 A 50 °C 1000 A 50 °C 1250 A 50 °C 1600 A 50 °C
earth-leakage protection	With

Complementary
mounting mode	Drawout
long time pick-up adjustment type Ir	Adjustable 9 settings
long time pick-up adjustment range	0.4...1 x In
long time delay adjustment type	Adjustable 9 settings
[tr] long-time delay adjustment range	0,7…16,6 s 7.2 x Ir 0,7…24 s 6 x Ir 12,5…600 s 1.5 x Ir
thermal memory	20 mn
short-time pick-up adjustment type Isd	Adjustable 9 settings
[Isd] short-time pick-up adjustment range	1.5...10 x Ir
short-time delay adjustment type	Adjustable
[tsd] short-time delay adjustment range	0…0,4 s I²t=off 0,1…0,4 s I²t=on
instantaneous pick-up adjustment type Ii	Adjustable 9 settings
instantaneous pick-up adjustment range	Off 2...15 x In
zone selective interlocking ZSI	With
residual earth-leakage sensitity adjustment type	Adjustable 9 settings
[IΔn] residual earth-leakage sensitive adjustment	0,5…30 A
residual earth-leakage time delay adjustment type	Adjustable 5 settings
[Δt] residual earth-leakage time delay adjustment	60…800 ms
earth-leakage sensitivity	10 A class A 30 A class AC
communication of data	Measurement readout Protection and alarm settings Maintenance indicators
display type	Digital display
type of measurement	Power meter

Environment
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-25…85 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
