chassis rear connection dowside - for NW UL 489 - 3 poles - 800 - 2000A

Previous

breaker ULP cord, Compact NS, Masterpact NT/NW, length 3 m

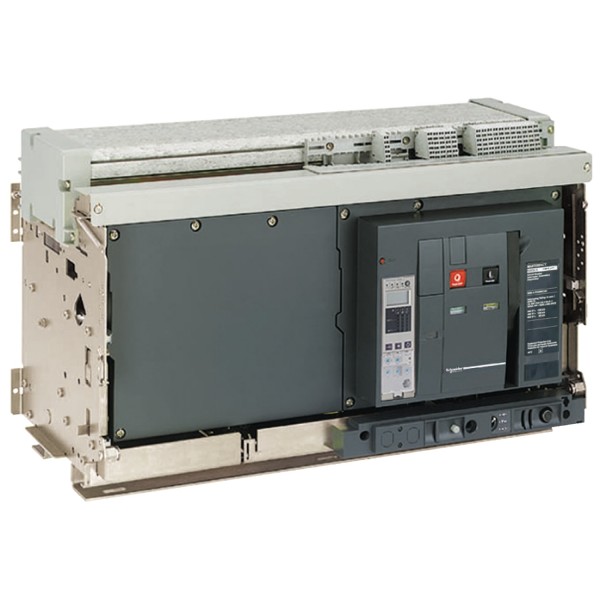

switch-disconnector Masterpact NW40HF - 4000 A - 600 V - 3 poles - draw - UL 489

Ülevaaded: 0

Tootekood: 64783

Quick Overview

Saadavus: Tellimisel

21 786,67 € (ilma KM-ta)

Details

Main
range
Masterpact
product name
Masterpact NW UL 489
product or component type
Switch disconnector
device short name
Masterpact NW40
switch-disconnector name
Masterpact NW40HF
device application
Protection
poles description
3P
network type
AC
network frequency
50/60 Hz
[Ie] rated operational current
4000 A AC
[Ue] rated operational voltage
240...600 V AC 50/60 Hz
breaking capacity code
HF
suitability for isolation
Yes IEC 60947-3
Complementary
control type
Push-button
mounting mode
Drawout
mounting support
Chassis
operating rate
10 cyc/h maximum
[Icw] rated short-time withstand current
100 kA 220 V
100 kA 480 V
85 kA 600 V
mechanical durability
10000 cycles with maintenance
5000 cycles without maintenance
electrical durability
1000 cycles without maintenance
connection pitch
115 mm
height
479 mm
width
786 mm
depth
395 mm
net weight
225 kg
integral instant protection
75 kA
Environment
standards
UL 489
IP degree of protection
IP30
Contractual warranty
Garantii
18 months
