Dual IR flame detector, for outdoor use

Previous

Detector base sounder, BSO-PP-N33, without isolator

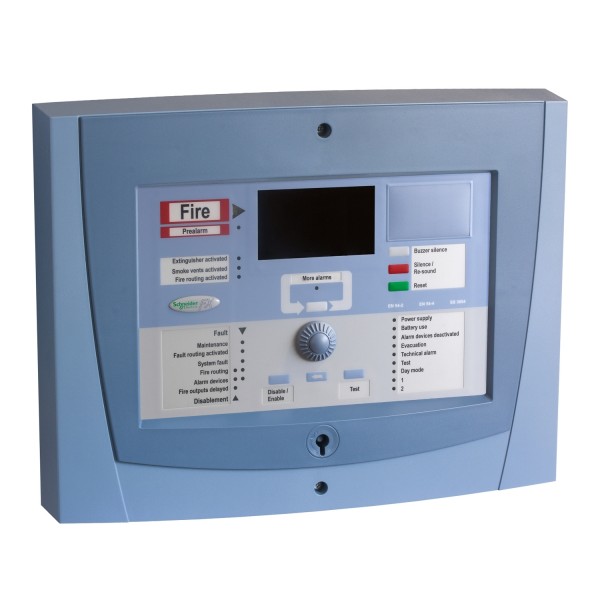

Fire detection panel, FXM 3NET, EE

Ülevaaded: 0

Tootekood: FFS00703800EE

Quick Overview

Saadavus: Tellimisel

2 540,13 € (ilma KM-ta)

Details

Main
range of product
Esmi fire detection panels
product or component type
Control panel
number of batteries
2 x 12 V 12 Ah
colour
Cover light blue/grey NCS S 4020-R80B)
Collar dark blue/grey NCS S 5020-R80B)
Frame dark grey NCS S 7502-B)
Maximum allowed current consumption
0.5 A 24 V DC standby
2.2 A 24 V DC alarm
Complementary
mains supply power
80 VA
mains supply voltage
230 V AC +/- 10 % 50...60 Hz
operating voltage range
19...30 V DC
device composition
cover plastic
frame sheet steel/plastic
back frame sheet steel
height
328,0 mm
width
425,0 mm
depth
130,0 mm
net weight
6,0 kg without batteries
addressable loop controller
ALC/SLC
number of loops
4 addressable
number of addresses
0…159 addressable detectors and call points for SLC
0…159 other modules for SLC
0…126 addressable devices for ALC
optional circuit board slots
2 optional circuit board
product compatibility
Fireman's panel FMPX/FMP2
Protocol repeater REPX/REPX-OB
Delay alarm panel DAPX/DAP2
Logical controller MCOX/MCOX-OB
LED panels for fire zones ZLPX
Environment
standards
EN 54-2
EN 54-4
relative humidity
0…95 % non-condensing
ambient air temperature for operation
5…40 °C
ambient air temperature for storage
0…50 °C
IP degree of protection
IP30
Offer Sustainability
REACh-määrus
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
24 months
