Base sounder, ESI-20, integrated, short circuit isolator

Previous

Conventional heat detector, EDC-50/A1R

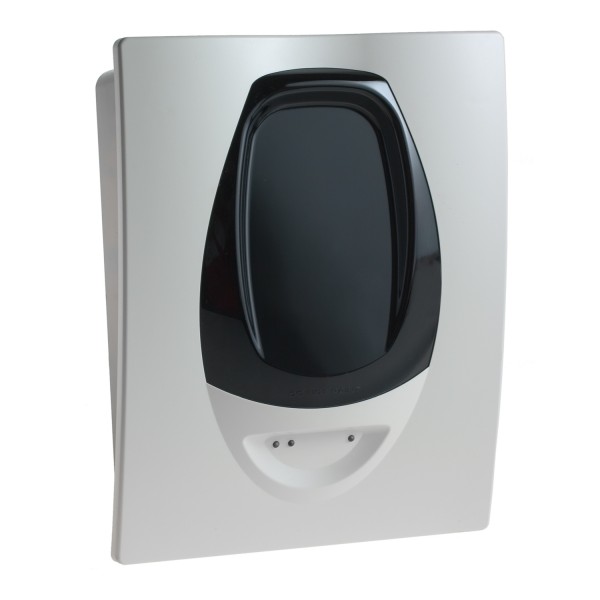

Intelligent beam detector, EB-6500SA, with self test

Ülevaaded: 0

Tootekood: FFS06716505

Quick Overview

Saadavus: Ei saa enam tellida

817,69 € (ilma KM-ta)

Details

Main
range of product
Esmi special detection application
product or component type
Beam detector
detection type
Smoke
Complementary
[Ue] rated operational voltage
15...32 V DC
15...28.5 V DC with isolator
current consumption
2 mA at 24 V DC standby
8.5 mA at 24 V DC alarm LED on
2.5 mA at 24 V DC fault LED on
20 mA at 24 V DC alignment mode
material
Lid: PC/ABS FR
Lens cover: lexan
Backbox: noryl
output type
Alarm output 15...32 V 6...15 mA DC
load current
0.5 A at 15...32 V DC for power supply
operating distance
5...70 m
70...100 m with long range reflector
operating position
+/- 0.5° maximum misalignment angle detector
+/- 10° maximum misalignment angle reflector
+/- 10° adjustment angle horizontal
+/- 10° adjustment angle vertical
colour
Lid: white
Lens cover: black
cable cross section
0.3…3.2 mm²
width
193 mm
height
253 mm
depth
84 mm
net weight
1.77 kg
Environment
standards
EN 54-12
EN 54-17
product certifications
CPD
LPCB
IP degree of protection
IP54
relative humidity
10…95 % non-condensing
ambient air temperature for operation
-30…55 °C
Offer Sustainability
REACh Regulation
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
 Pro-active China RoHS declaration (out of China RoHS legal scope)
