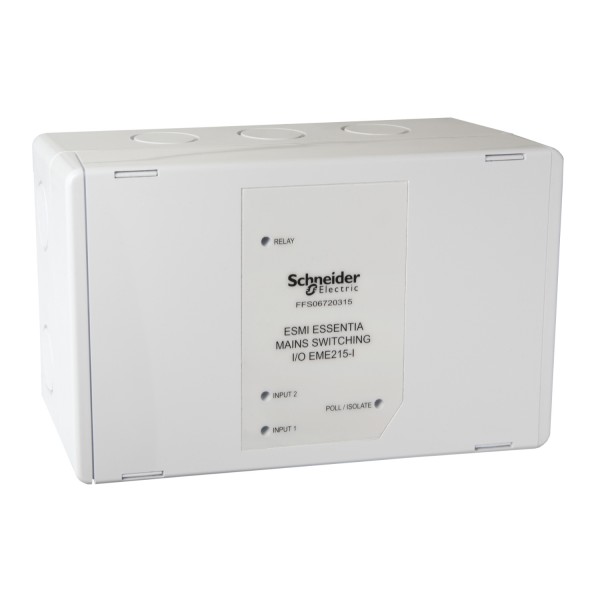

Mains switching input/output unit, Essentia EME215-I

Ülevaaded: 0

Tootekood: FFS06720315

Quick Overview

Saadavus: Tellimisel

226,90 € (ilma KM-ta)

Details

Main
range of product
Esmi addressable components for ALC range
product or component type
Input/output module
Complementary
[Ue] rated operational voltage
17...35 V DC
current consumption
700 µA at 24 V DC standby
1.1 mA at 24 V DC power-up surge
5.2 mA at 24 V DC maximum LED on
700 µA at 24 V DC maximum LED disabled
load current
5 A at 30 V DC for relay output
5 A at 250 V AC for relay output
colour
White
local signalling
LED red for relay active
LED yellow for relay fault
LED flashing green for polling
LED yellow for isolation
LED yellow for input fault
LED red for input active
height
60 mm
width
150 mm
depth
90 mm
net weight
301 g
Environment
standards
EN 54-17
EN 54-18
product certifications
LPCB
CPR
IP degree of protection
IP54
relative humidity
0…95 % non-condensing
ambient air temperature for operation
-40…70 °C
Offer Sustainability
REACh Regulation
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
 Pro-active China RoHS declaration (out of China RoHS legal scope)
