Multi-criteria detector, Esmi 22051TLE, smoke heat, infrared, without isolator

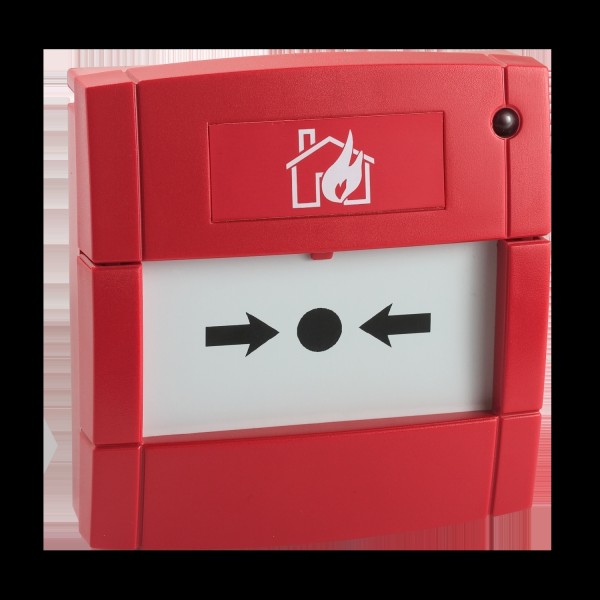

Manual call point, MCP5A-RP02FG-01, glass, with isolator

Ülevaaded: 0

Tootekood: FFS06423732EN

Quick Overview

Saadavus: Tellimisel

105,96 € (ilma KM-ta)

Details

Main
range of product
Esmi addressable components for SLC range
product or component type
Manual call point
colour tint
Red (RAL 3001)
Complementary
material
PC/ABS
control type
Breakable glass
[Ue] rated operational voltage
30 V DC maximum
current consumption
500 µA at 24 V DC standby
7.6 mA at 24 V DC alarm
cable cross section
0.5…2.5 mm² cable
height
93 mm
width
89 mm
depth
27.5 mm
net weight
130 g
Environment
IP degree of protection
IP24D
ambient air temperature for operation
-10…55 °C
standards
EN 54-11
product certifications
CPD
LPCB
relative humidity
0…96 % non-condensing
Offer Sustainability
REACh Regulation
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
 Pro-active China RoHS declaration (out of China RoHS legal scope)
