Conventional manual call point, MCP4A-Y000FF-11, yellow

Previous

Conventional optical smoke detector, ED2351E

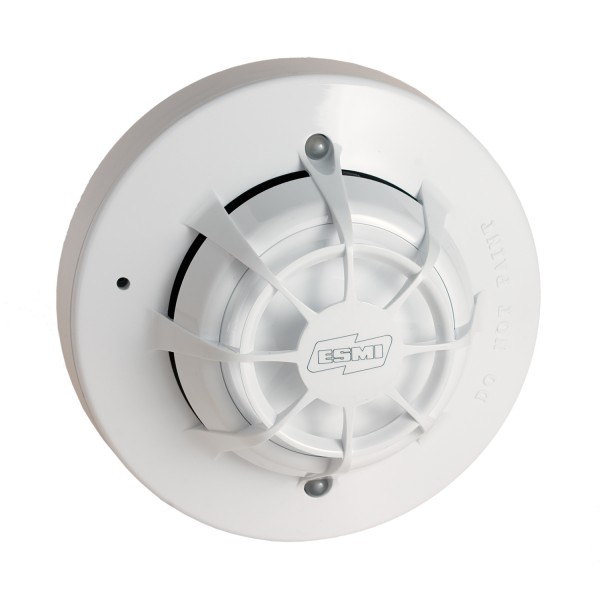

Multi-criteria detector, Intellia EDI-30, smoke, heat

Ülevaaded: 0

Tootekood: FFS06720230

Quick Overview

Saadavus: Tellimisel

70,66 € (ilma KM-ta)

Details

Main
range of product
Esmi addressable components for ALC range
product or component type
Multisensor detector
detection type
Smoke
Heat
Complementary
[Ue] rated operational voltage
17...28 V DC polarity insensitive
current consumption
400 µA at 24 V DC standby
3.5 mA at 24 V DC alarm LED on
1 mA at 24 V DC power-up surge
5 mA at 24 V DC remote LED
material
Body: PC (polycarbonate) FR
Terminal: nickel plated stainless steel
local signalling
2 LED (red) for alarm
output type
Remote LED optional
colour
White
diameter
100 mm
height
50 mm
net weight
105 g
Environment
standards
EN 54-5
EN 54-7
product certifications
CPR
LPCB
IP degree of protection
IP44
relative humidity
0…95 % non-condensing
ambient air temperature for operation
-40…70 °C
ambient air temperature for storage
-40…80 °C
Offer Sustainability
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
 Pro-active China RoHS declaration (out of China RoHS legal scope)
