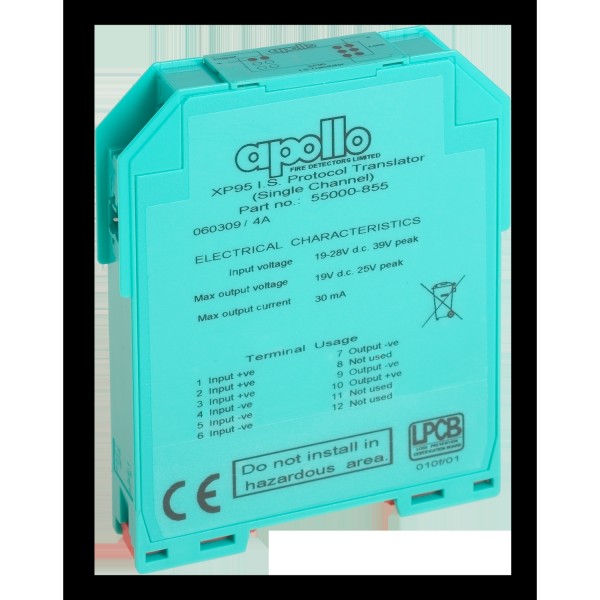

Protocol translator, single channel

Ülevaaded: 0

Tootekood: FFS06725201

Quick Overview

Saadavus: Tellimisel

386,72 € (ilma KM-ta)

Details

Main
range of product
Esmi addressable components for ALC range
product or component type
Protocol translator
Complementary
product certifications
LPCB
CPR
colour
Green
[Us] rated supply voltage
19...28 V DC polarity sensitive
output voltage
16.5...19 V DC
5...6.5 V DC modulation
input current
1 mA maximum
8...12 mA pulse
output current
0.2...30 mA
17...23 mA pulse
material
PC (polycarbonate)
height
110 mm
width
92.5 mm
depth
20 mm
net weight
100 g
Environment
relative humidity
10…95 % non-condensing
ambient air temperature for operation
-20…60 °C
environmental characteristic
Flame retardant
Offer Sustainability
REACh Regulation
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
 Pro-active China RoHS declaration (out of China RoHS legal scope)
