IS conventional manual call point, ECC201N9

Previous

Wireless optical detector, with base

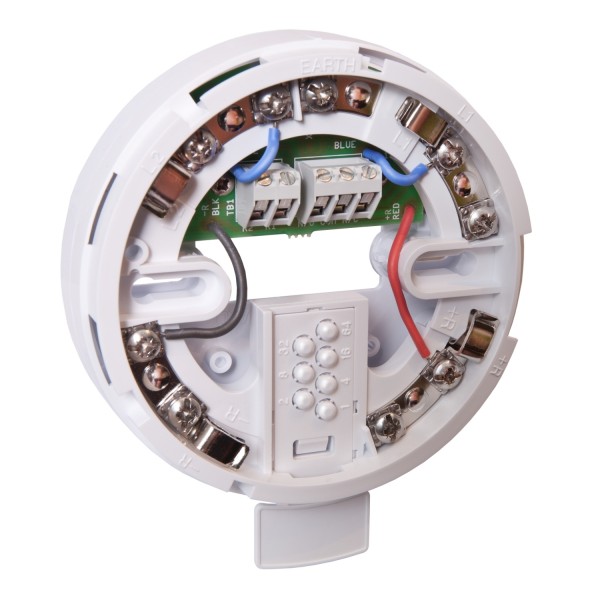

Relay base, Intellia EBI-20

Ülevaaded: 0

Tootekood: FFS06720020

Quick Overview

Saadavus: Ei saa enam tellida

45,25 € (ilma KM-ta)

Details

Main
range of product
Esmi addressable components for ALC range
product or component type
Mounting base
Complementary
colour
White
device composition
body in PC (polycarbonate)
[Ue] rated operational voltage
17...28 V DC
current consumption
5 mA at 24 V DC power-up surge < 250 ms
< 1 µA at 24 V DC relay reset
40 µA at 24 V DC relay set
local signalling
Output, LED optional
load current
1 A at 30 V AC/DC contact rating
diameter
100 mm
height
24 mm
net weight
100 g
Environment
product certifications
LPCB
CPD
relative humidity
0…95 % non-condensing
ambient air temperature for operation
-20…70 °C
Offer Sustainability
REACh Regulation
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
