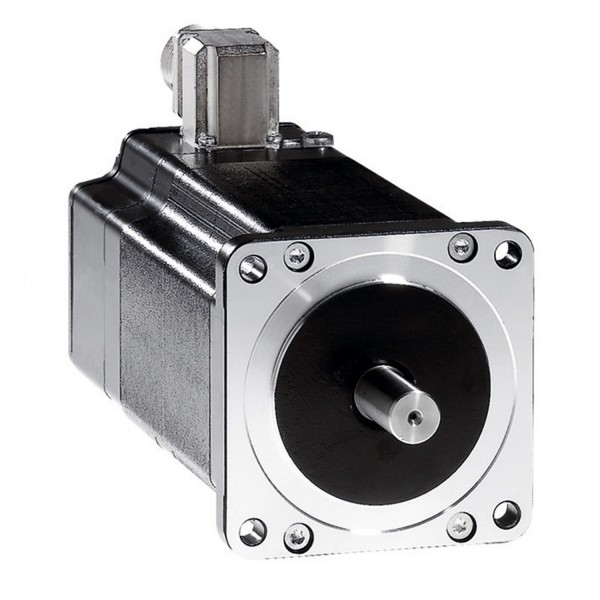

3-phase stepper motor - 6.78 Nm - shaft Ø 14mm - L=128mm - w/o brake - conn - Mootorid - Tööstusautomaatika

Details

Complementary
centring collar depth	2 mm
number of mounting holes	4
mounting holes diameter	6,5 mm
circle diameter of the mounting holes	98,99 mm
electrical connection	Connector
feedback type	Single turn encoder
speed feedback resolution	10000 points/turn
holding brake	Without
shaft end	Woodruff key
second shaft	Without second shaft end
shaft diameter	14 mm
shaft length	30 mm
nominal torque	6 N.m
peak stall torque	5,78 N.m
continuous stall torque	5,78 N.m
holding torque	6,78 N.m
rotor inertia	3,3 kg.cm²
resolution	1000 points/turn 1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution
accuracy error	+/- 6 arc min
maximum starting frequency	5,3 kHz
[In] rated current	2,25 A
resistance	6,5 Ohm winding)
time constant	10 ms
maximum radial force Fr	110 N first shaft end) 50 N second shaft end)
maximum axial force Fa	175 N tensile force) 30 N force pressure)
service life in hours	20000 h bearing)
angular acceleration	200000 rad/s²
net weight	4,3 kg

Environment
standards	IEC 60072-1 EN 50347
type of cooling	Natural convection
ambient air temperature for operation	-25…40 °C
ambient air temperature for storage	-25…70 °C
operating altitude	<= 1000 m without power derating
relative humidity	15…85 % without condensation
vibration resistance	20 m/s² maximum A EN/IEC 60034-14
IP degree of protection	Shaft bushing IP41 EN/IEC 60034-5 Total except shaft bushing IP56 EN/IEC 60034-5
temperature class	F winding IEC/EN 60034-1
