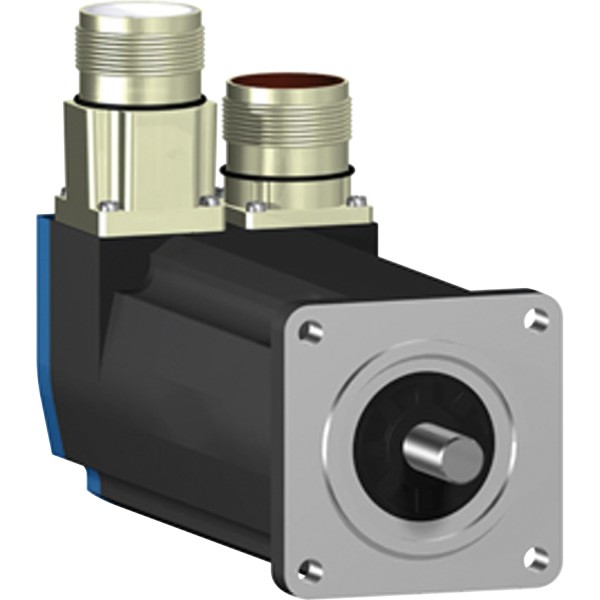

AC servo motor BSH - 0.5 N.m - 8000 rpm - keyed shaft - with brake - IP65

Ülevaaded: 0

Tootekood: BSH0551T32F1A

Quick Overview

Saadavus: Tellimisel

1 923,94 € (ilma KM-ta)

Details

Main
product or component type
Servo motor
device short name
BSH
maximum mechanical speed
9000 rpm
continuous stall torque
0,5 N.m LXM32.U90M2 3 A, 115 V, single phase
0,5 N.m LXM32.U45M2 1,5 A, 230 V, single phase
0,5 N.m LXM05CU70M2, 200...240 V, single phase
0,5 N.m LXM05AD10F1, 110...120 V, single phase
0,5 N.m LXM05AD10M2, 200...240 V, single phase
0,5 N.m LXM05BD10F1, 110...120 V, single phase
0,5 N.m LXM05BD10M2, 200...240 V, single phase
0,5 N.m LXM05CD10F1, 110...120 V, single phase
0,5 N.m LXM05CD10M2, 200...240 V, single phase
0,5 N.m LXM15LD13M3, 230 V, three phase
0,5 N.m LXM05AD10M3X, 200...240 V, three phase
0,5 N.m LXM05BD10M3X, 200...240 V, three phase
0,5 N.m LXM05CD10M3X, 200...240 V, three phase
peak stall torque
1,5 N.m LXM32.U90M2 3 A, 115 V, single phase
1,4 N.m LXM32.U45M2 1,5 A, 230 V, single phase
1,08 N.m LXM05CU70M2, 200...240 V, single phase
1,4 N.m LXM05AD10F1, 110...120 V, single phase
1,4 N.m LXM05AD10M2, 200...240 V, single phase
1,4 N.m LXM05BD10F1, 110...120 V, single phase
1,4 N.m LXM05BD10M2, 200...240 V, single phase
1,4 N.m LXM05CD10F1, 110...120 V, single phase
1,4 N.m LXM05CD10M2, 200...240 V, single phase
1,24 N.m LXM15LD13M3, 230 V, three phase
1,4 N.m LXM05AD10M3X, 200...240 V, three phase
1,4 N.m LXM05BD10M3X, 200...240 V, three phase
1,4 N.m LXM05CD10M3X, 200...240 V, three phase
nominal output power
150 W LXM32.U90M2 3 A, 115 V, single phase
300 W LXM32.U45M2 1,5 A, 230 V, single phase
150 W LXM05AD10F1, 110...120 V, single phase
150 W LXM05BD10F1, 110...120 V, single phase
150 W LXM05CD10F1, 110...120 V, single phase
150 W LXM05CU70M2, 200...240 V, single phase
270 W LXM05AD10M2, 200...240 V, single phase
270 W LXM05BD10M2, 200...240 V, single phase
270 W LXM05CD10M2, 200...240 V, single phase
270 W LXM05AD10M3X, 200...240 V, three phase
270 W LXM05BD10M3X, 200...240 V, three phase
270 W LXM05CD10M3X, 200...240 V, three phase
340 W LXM15LD13M3, 230 V, three phase
nominal torque
0,49 N.m LXM32.U90M2 3 A, 115 V, single phase
0,45 N.m LXM32.U45M2 1,5 A, 230 V, single phase
0,43 N.m LXM05AD10M2, 200...240 V, single phase
0,43 N.m LXM05BD10M2, 200...240 V, single phase
0,43 N.m LXM05CD10M2, 200...240 V, single phase
0,46 N.m LXM05AD10F1, 110...120 V, single phase
0,46 N.m LXM05BD10F1, 110...120 V, single phase
0,46 N.m LXM05CD10F1, 110...120 V, single phase
0,46 N.m LXM05CU70M2, 200...240 V, single phase
0,41 N.m LXM15LD13M3, 230 V, three phase
0,43 N.m LXM05AD10M3X, 200...240 V, three phase
0,43 N.m LXM05BD10M3X, 200...240 V, three phase
0,43 N.m LXM05CD10M3X, 200...240 V, three phase
nominal speed
3000 rpm LXM32.U90M2 3 A, 115 V, single phase
6000 rpm LXM32.U45M2 1,5 A, 230 V, single phase
3000 rpm LXM05AD10F1, 110...120 V, single phase
3000 rpm LXM05BD10F1, 110...120 V, single phase
3000 rpm LXM05CD10F1, 110...120 V, single phase
3000 rpm LXM05CU70M2, 200...240 V, single phase
6000 rpm LXM05AD10M2, 200...240 V, single phase
6000 rpm LXM05BD10M2, 200...240 V, single phase
6000 rpm LXM05CD10M2, 200...240 V, single phase
6000 rpm LXM05AD10M3X, 200...240 V, three phase
6000 rpm LXM05BD10M3X, 200...240 V, three phase
6000 rpm LXM05CD10M3X, 200...240 V, three phase
8000 rpm LXM15LD13M3, 230 V, three phase
product compatibility
LXM05AD10F1 110...120 V single phase
LXM05AD10M2 200...240 V single phase
LXM05BD10F1 110...120 V single phase
LXM05BD10M2 200...240 V single phase
LXM05CD10F1 110...120 V single phase
LXM05CD10M2 200...240 V single phase
LXM05CU70M2 200...240 V single phase
LXM32.U90M2 115 V single phase
LXM32.U45M2 230 V single phase
LXM05AD10M3X 200...240 V three phase
LXM05BD10M3X 200...240 V three phase
LXM05CD10M3X 200...240 V three phase
LXM15LD13M3 230 V three phase
shaft end
Keyed
IP degree of protection
IP65 standard
IP67 with IP67 kit
speed feedback resolution
131072 points/turn x 4096 turns
holding brake
With
mounting support
International standard flange
electrical connection
Straight connectors
Complementary
range compatibility
Lexium 05
Lexium 32
Lexium 15
supply voltage max
480 V
network number of phases
Three phase
continuous stall current
1,4 A
maximum continuous power
0,45 W
maximum current Irms
6,2 A LXM15LD13M3
5,4 A LXM05AD10F1
5,4 A LXM05CU70M2
5,4 A LXM05AD10M2
5,4 A LXM05AD10M3X
5,4 A LXM05BD10F1
5,4 A LXM05BD10M2
5,4 A LXM05BD10M3X
5,4 A LXM05CD10F1
5,4 A LXM05CD10M2
5,4 A LXM05CD10M3X
5,4 A LXM32.U90M2
4,5 A LXM32.U45M2
maximum permanent current
5,4 A
switching frequency
8 kHz
second shaft
Without second shaft end
shaft diameter
9 mm
shaft length
20 mm
key width
12 mm
feedback type
Multiturn SinCos Hiperface
holding torque
0,8 N.m holding brake
motor flange size
55 mm
number of motor stacks
1
torque constant
0,36 N.m/A 120 °C
back emf constant
22 V/krpm 120 °C
number of motor poles
6
rotor inertia
0,0803 kg.cm²
stator resistance
12,2 Ohm 20 °C
stator inductance
20,8 mH 20 °C
stator electrical time constant
1,7 ms 20 °C
maximum radial force Fr
170 N 8000 rpm
180 N 7000 rpm
190 N 6000 rpm
200 N 5000 rpm
220 N 4000 rpm
240 N 3000 rpm
270 N 2000 rpm
340 N 1000 rpm
maximum axial force Fa
0.2 x Fr
brake pull-in power
10 W
type of cooling
Natural convection
length
159 mm
centring collar diameter
40 mm
centring collar depth
2 mm
number of mounting holes
4
mounting holes diameter
5,5 mm
circle diameter of the mounting holes
63 mm
net weight
1,3 kg
Contractual warranty
Garantii
18 months
