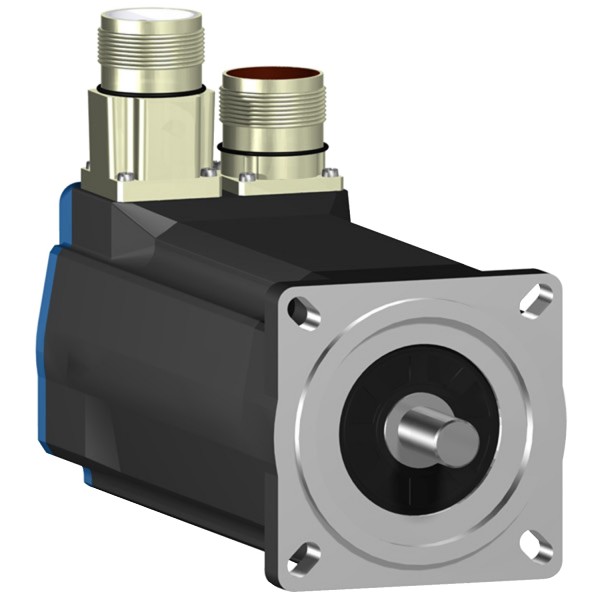

AC servo motor BSH - 2.7 N.m - 3000 rpm - keyed shaft - without brake - IP50

Previous

AC servo motor BSH - 0.9 N.m - 6000 rpm - untapped shaft - without brake - IP50

AC servo motor BSH - 0.7 N.m - 8000 rpm - untapped shaft - with brake - IP65

Tootekood: BSH0701T22F2A

Quick Overview

Saadavus: Tellimisel

2 299,19 € (ilma KM-ta)

Details

Main
product or component type
Servo motor
device short name
BSH
maximum mechanical speed
8000 rpm
continuous stall torque
1,3 N.m LXM32.U90M2 3 A, 230 V, single phase
1,4 N.m LXM05AD10M3X, 200...240 V, three phase
1,4 N.m LXM05BD10M3X, 200...240 V, three phase
1,4 N.m LXM05CD10M3X, 200...240 V, three phase
1,4 N.m LXM15LD13M3, 230 V, single phase
1,4 N.m LXM05AD10F1, 110...120 V, single phase
1,4 N.m LXM05AD17M2, 200...240 V, single phase
1,4 N.m LXM05BD10F1, 110...120 V, single phase
1,4 N.m LXM05BD17M2, 200...240 V, single phase
1,4 N.m LXM05CD10F1, 110...120 V, single phase
1,4 N.m LXM05CD17M2, 200...240 V, single phase
1,4 N.m LXM32.D18M2 6 A, 115 V, single phase
0,7 N.m LXM15LU60N4, 400 V, three phase
0,7 N.m LXM15LU60N4, 480 V, three phase
0,91 N.m LXM15LU60N4, 230 V, three phase
1,4 N.m LXM15LD10N4, 230 V, three phase
1,4 N.m LXM15LD10N4, 400 V, three phase
1,4 N.m LXM15LD10N4, 480 V, three phase
1,4 N.m LXM15LD13M3, 230 V, three phase
1,4 N.m LXM15LD21M3, 230 V, three phase
1,4 N.m LXM05AD17M3X, 200...240 V, three phase
1,4 N.m LXM05BD17M3X, 200...240 V, three phase
1,4 N.m LXM05CD17M3X, 200...240 V, three phase
peak stall torque
3,5 N.m LXM32.U90M2 3 A, 230 V, single phase
3,19 N.m LXM15LD13M3, 230 V, single phase
2,42 N.m LXM05AD10F1, 110...120 V, single phase
3,19 N.m LXM05AD17M2, 200...240 V, single phase
2,42 N.m LXM05BD10F1, 110...120 V, single phase
3,19 N.m LXM05BD17M2, 200...240 V, single phase
2,42 N.m LXM05CD10F1, 110...120 V, single phase
3,19 N.m LXM05CD17M2, 200...240 V, single phase
3,5 N.m LXM32.D18M2 6 A, 115 V, single phase
1,9 N.m LXM15LU60N4, 400 V, three phase
1,9 N.m LXM15LU60N4, 480 V, three phase
1,9 N.m LXM15LU60N4, 230 V, three phase
2,91 N.m LXM15LD10N4, 230 V, three phase
2,91 N.m LXM15LD10N4, 400 V, three phase
2,91 N.m LXM15LD10N4, 480 V, three phase
3,19 N.m LXM15LD13M3, 230 V, three phase
3,19 N.m LXM15LD21M3, 230 V, three phase
2,42 N.m LXM05AD10M3X, 200...240 V, three phase
3,19 N.m LXM05AD17M3X, 200...240 V, three phase
2,42 N.m LXM05BD10M3X, 200...240 V, three phase
3,19 N.m LXM05BD17M3X, 200...240 V, three phase
2,42 N.m LXM05CD10M3X, 200...240 V, three phase
3,19 N.m LXM05CD17M3X, 200...240 V, three phase
nominal output power
500 W LXM32.U90M2 3 A, 230 V, single phase
350 W LXM32.D18M2 6 A, 115 V, single phase
400 W LXM05AD10M3X, 200...240 V, three phase
400 W LXM05BD10M3X, 200...240 V, three phase
400 W LXM05CD10M3X, 200...240 V, three phase
380 W LXM05AD10F1, 110...120 V, single phase
380 W LXM05BD10F1, 110...120 V, single phase
380 W LXM05CD10F1, 110...120 V, single phase
400 W LXM05AD17M2, 200...240 V, single phase
400 W LXM05BD17M2, 200...240 V, single phase
400 W LXM05CD17M2, 200...240 V, single phase
654 W LXM15LD13M3, 230 V, single phase
1000 W LXM15LD10N4, 400 V, three phase
1000 W LXM15LD10N4, 480 V, three phase
400 W LXM05AD17M3X, 200...240 V, three phase
400 W LXM05BD17M3X, 200...240 V, three phase
400 W LXM05CD17M3X, 200...240 V, three phase
440 W LXM15LU60N4, 230 V, three phase
564 W LXM15LD10N4, 230 V, three phase
586 W LXM15LU60N4, 400 V, three phase
586 W LXM15LU60N4, 480 V, three phase
654 W LXM15LD13M3, 230 V, three phase
654 W LXM15LD21M3, 230 V, three phase
nominal torque
0,94 N.m LXM32.U90M2 3 A, 230 V, single phase
1,25 N.m LXM15LD13M3, 230 V, single phase
1,36 N.m LXM32.D18M2 6 A, 115 V, single phase
0,7 N.m LXM15LU60N4, 230 V, three phase
0,7 N.m LXM15LU60N4, 400 V, three phase
0,7 N.m LXM15LU60N4, 480 V, three phase
1,23 N.m LXM15LD10N4, 400 V, three phase
1,23 N.m LXM15LD10N4, 480 V, three phase
1,25 N.m LXM15LD10N4, 230 V, three phase
1,25 N.m LXM15LD13M3, 230 V, three phase
1,25 N.m LXM15LD21M3, 230 V, three phase
nominal speed
5000 rpm LXM32.U90M2 3 A, 230 V, single phase
3000 rpm LXM05AD10F1, 110...120 V, single phase
3000 rpm LXM05BD10F1, 110...120 V, single phase
3000 rpm LXM05CD10F1, 110...120 V, single phase
3000 rpm LXM05AD10M3X, 200...240 V, three phase
3000 rpm LXM05BD10M3X, 200...240 V, three phase
3000 rpm LXM05CD10M3X, 200...240 V, three phase
8000 rpm LXM15LD10N4, 400 V, three phase
3000 rpm LXM05AD17M2, 200...240 V, single phase
3000 rpm LXM05BD17M2, 200...240 V, single phase
3000 rpm LXM05CD17M2, 200...240 V, single phase
3000 rpm LXM05AD17M3X, 200...240 V, three phase
3000 rpm LXM05BD17M3X, 200...240 V, three phase
3000 rpm LXM05CD17M3X, 200...240 V, three phase
5000 rpm LXM15LD13M3, 230 V, single phase
2500 rpm LXM32.D18M2 6 A, 115 V, single phase
5000 rpm LXM15LD10N4, 230 V, three phase
5000 rpm LXM15LD13M3, 230 V, three phase
5000 rpm LXM15LD21M3, 230 V, three phase
6000 rpm LXM15LU60N4, 230 V, three phase
8000 rpm LXM15LD10N4, 480 V, three phase
8000 rpm LXM15LU60N4, 400 V, three phase
8000 rpm LXM15LU60N4, 480 V, three phase
product compatibility
LXM05AD10F1 110...120 V single phase
LXM05AD17M2 200...240 V single phase
LXM05BD10F1 110...120 V single phase
LXM05BD17M2 200...240 V single phase
LXM05CD10F1 110...120 V single phase
LXM05CD17M2 200...240 V single phase
LXM15LD13M3 230 V single phase
LXM32.U90M2 230 V single phase
LXM32.D18M2 115 V single phase
LXM15LU60N4 230 V three phase
LXM05AD10M3X 200...240 V three phase
LXM05BD10M3X 200...240 V three phase
LXM05CD10M3X 200...240 V three phase
LXM15LD13M3 230 V three phase
LXM15LU60N4 400 V three phase
LXM15LU60N4 480 V three phase
LXM15LD10N4 400 V three phase
LXM05AD17M3X 200...240 V three phase
LXM05BD17M3X 200...240 V three phase
LXM05CD17M3X 200...240 V three phase
LXM15LD10N4 230 V three phase
LXM15LD10N4 480 V three phase
LXM15LD21M3 230 V three phase
shaft end
Untapped
IP degree of protection
IP65 standard
IP67 with IP67 kit
speed feedback resolution
131072 points/turn x 4096 turns
holding brake
With
mounting support
International standard flange
electrical connection
Rotatable right-angled connectors
Complementary
range compatibility
Lexium 05
Lexium 32
Lexium 15
supply voltage max
480 V
network number of phases
Three phase
continuous stall current
3,2 A
maximum continuous power
1,06 W
maximum current Irms
10 A LXM32.D18M2
9 A LXM32.U90M2
9,9 A LXM15LD13M3
9,9 A LXM15LD21M3
9,9 A LXM15LU60N4
9,9 A LXM15LD10N4
maximum permanent current
10,1 A
switching frequency
8 kHz
second shaft
Without second shaft end
shaft diameter
11 mm
shaft length
23 mm
feedback type
Multiturn SinCos Hiperface
holding torque
2 N.m holding brake
motor flange size
70 mm
number of motor stacks
1
torque constant
0,44 N.m/A 120 °C
back emf constant
26 V/krpm 120 °C
number of motor poles
6
rotor inertia
0,322 kg.cm²
stator resistance
3,3 Ohm 20 °C
stator inductance
12,3 mH 20 °C
stator electrical time constant
3,73 ms 20 °C
maximum radial force Fr
360 N 6000 rpm
380 N 5000 rpm
410 N 4000 rpm
460 N 3000 rpm
520 N 2000 rpm
660 N 1000 rpm
maximum axial force Fa
0.2 x Fr
brake pull-in power
10 W
type of cooling
Natural convection
length
179,5 mm
centring collar diameter
60 mm
centring collar depth
2,5 mm
number of mounting holes
4
mounting holes diameter
5,5 mm
circle diameter of the mounting holes
82 mm
net weight
2,3 kg
