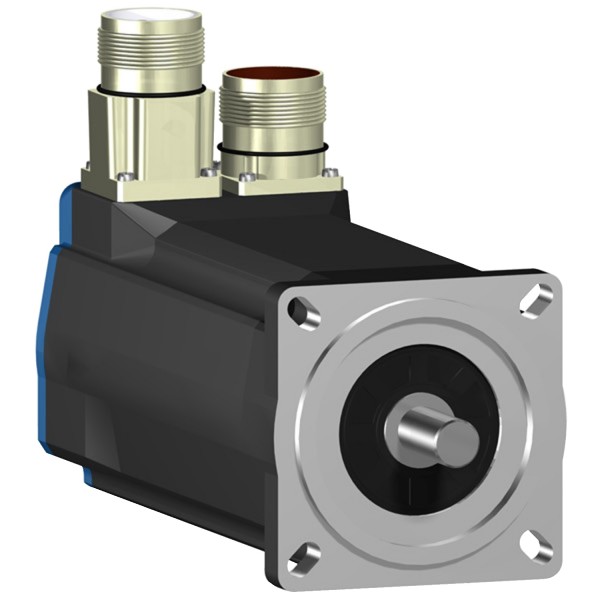

AC servo motor BSH - 5.5 N.m - 4000 rpm - untapped shaft - without brake - IP65

Previous

AC servo motor BSH - 1.4 N.m - 3000 rpm - keyed shaft - with brake - IP50

AC servo motor BSH - 1.1 N.m - 3000 rpm - keyed shaft - without brake - IP65

Ülevaaded: 0

Tootekood: BSH0703P32A2A

Quick Overview

Saadavus: Tellimisel

1 832,46 € (ilma KM-ta)

Details

Main
product or component type
Servo motor
device short name
BSH
maximum mechanical speed
8000 rpm
continuous stall torque
2,83 N.m LXM15LD21M3, 230 V, single phase
1,1 N.m LXM15LU60N4, 480 V, three phase
1,1 N.m LXM15LU60N4, 400 V, three phase
1,5 N.m LXM15LU60N4, 230 V, three phase
2,23 N.m LXM15LD13M3, 230 V, three phase
2,4 N.m LXM15LD10N4, 230 V, three phase
2,4 N.m LXM15LD10N4, 400 V, three phase
2,4 N.m LXM15LD10N4, 480 V, three phase
2,83 N.m LXM15LD17N4, 230 V, three phase
2,83 N.m LXM15LD17N4, 400 V, three phase
2,83 N.m LXM15LD17N4, 480 V, three phase
2,83 N.m LXM15LD21M3, 230 V, three phase
2,8 N.m LXM05AD17M2, 200...240 V, single phase
2,8 N.m LXM05AD17M3X, 200...240 V, three phase
2,8 N.m LXM05AD22N4, 380...480 V, three phase
2,8 N.m LXM05AD28M2, 200...240 V, single phase
2,8 N.m LXM05BD17M2, 200...240 V, single phase
2,8 N.m LXM05BD17M3X, 200...240 V, three phase
2,8 N.m LXM05BD22N4, 380...480 V, three phase
2,8 N.m LXM05BD28M2, 200...240 V, single phase
2,8 N.m LXM05CD17M2, 200...240 V, single phase
2,8 N.m LXM05CD17M3X, 200...240 V, three phase
2,8 N.m LXM05CD22N4, 380...480 V, three phase
2,8 N.m LXM05CD28M2, 200...240 V, single phase
3,1 N.m LXM32.D18N4 6 A, 400 V, three phase
3,1 N.m LXM32.D18N4 6 A, 480 V, three phase
peak stall torque
5,99 N.m LXM15LD21M3, 230 V, single phase
7,16 N.m LXM05AD17M2, 200...240 V, single phase
10,3 N.m LXM05AD28M2, 200...240 V, single phase
7,16 N.m LXM05BD17M2, 200...240 V, single phase
10,3 N.m LXM05BD28M2, 200...240 V, single phase
7,16 N.m LXM05CD17M2, 200...240 V, single phase
10,3 N.m LXM05CD28M2, 200...240 V, single phase
3,3 N.m LXM15LU60N4, 480 V, three phase
3,3 N.m LXM15LU60N4, 400 V, three phase
3,3 N.m LXM15LU60N4, 230 V, three phase
6 N.m LXM15LD13M3, 230 V, three phase
5,3 N.m LXM15LD10N4, 230 V, three phase
5,3 N.m LXM15LD10N4, 400 V, three phase
5,3 N.m LXM15LD10N4, 480 V, three phase
7,71 N.m LXM15LD17N4, 230 V, three phase
7,71 N.m LXM15LD17N4, 400 V, three phase
7,71 N.m LXM15LD17N4, 480 V, three phase
9,28 N.m LXM15LD21M3, 230 V, three phase
7,16 N.m LXM05AD17M3X, 200...240 V, three phase
8,75 N.m LXM05AD22N4, 380...480 V, three phase
7,16 N.m LXM05BD17M3X, 200...240 V, three phase
8,75 N.m LXM05BD22N4, 380...480 V, three phase
7,16 N.m LXM05CD17M3X, 200...240 V, three phase
8,75 N.m LXM05CD22N4, 380...480 V, three phase
11,3 N.m LXM32.D18N4 6 A, 400 V, three phase
11,3 N.m LXM32.D18N4 6 A, 480 V, three phase
nominal output power
750 W LXM05AD17M2, 200...240 V, single phase
750 W LXM05AD28M2, 200...240 V, single phase
750 W LXM05BD17M2, 200...240 V, single phase
750 W LXM05BD28M2, 200...240 V, single phase
750 W LXM05CD17M2, 200...240 V, single phase
750 W LXM05CD28M2, 200...240 V, single phase
750 W LXM15LD21M3, 230 V, single phase
1250 W LXM15LD10N4, 400 V, three phase
1300 W LXM15LD17N4, 400 V, three phase
1400 W LXM15LD17N4, 480 V, three phase
1500 W LXM15LD10N4, 480 V, three phase
350 W LXM15LU60N4, 230 V, three phase
700 W LXM15LD13M3, 230 V, three phase
700 W LXM15LU60N4, 400 V, three phase
750 W LXM05AD17M3X, 200...240 V, three phase
750 W LXM05AD22N4, 380...480 V, three phase
750 W LXM05BD17M3X, 200...240 V, three phase
750 W LXM05BD22N4, 380...480 V, three phase
750 W LXM05CD17M3X, 200...240 V, three phase
750 W LXM05CD22N4, 380...480 V, three phase
750 W LXM15LD10N4, 230 V, three phase
750 W LXM15LD17N4, 230 V, three phase
750 W LXM15LD21M3, 230 V, three phase
950 W LXM15LU60N4, 480 V, three phase
1300 W LXM32.D18N4 6 A, 400 V, three phase
1300 W LXM32.D18N4 6 A, 480 V, three phase
nominal torque
2,4 N.m LXM05AD17M2, 200...240 V, single phase
2,4 N.m LXM05AD28M2, 200...240 V, single phase
2,4 N.m LXM05BD17M2, 200...240 V, single phase
2,4 N.m LXM05BD28M2, 200...240 V, single phase
2,4 N.m LXM05CD17M2, 200...240 V, single phase
2,4 N.m LXM05CD28M2, 200...240 V, single phase
2,4 N.m LXM15LD21M3, 230 V, single phase
1,12 N.m LXM15LU60N4, 230 V, three phase
1,12 N.m LXM15LU60N4, 400 V, three phase
1,12 N.m LXM15LU60N4, 480 V, three phase
1,8 N.m LXM15LD10N4, 480 V, three phase
1,96 N.m LXM15LD17N4, 480 V, three phase
2 N.m LXM15LD10N4, 400 V, three phase
2 N.m LXM15LD17N4, 400 V, three phase
2,23 N.m LXM15LD13M3, 230 V, three phase
2,4 N.m LXM05AD17M3X, 200...240 V, three phase
2,4 N.m LXM05AD22N4, 380...480 V, three phase
2,4 N.m LXM05BD17M3X, 200...240 V, three phase
2,4 N.m LXM05BD22N4, 380...480 V, three phase
2,4 N.m LXM05CD17M3X, 200...240 V, three phase
2,4 N.m LXM05CD22N4, 380...480 V, three phase
2,4 N.m LXM15LD10N4, 230 V, three phase
2,4 N.m LXM15LD17N4, 230 V, three phase
2,4 N.m LXM15LD21M3, 230 V, three phase
2,44 N.m LXM32.D18N4 6 A, 400 V, three phase
2,44 N.m LXM32.D18N4 6 A, 480 V, three phase
nominal speed
3000 rpm LXM15LD13M3, 230 V, three phase
3000 rpm LXM05AD17M2, 200...240 V, single phase
3000 rpm LXM05BD17M2, 200...240 V, single phase
3000 rpm LXM05CD17M2, 200...240 V, single phase
3000 rpm LXM05AD17M3X, 200...240 V, three phase
3000 rpm LXM05BD17M3X, 200...240 V, three phase
3000 rpm LXM05CD17M3X, 200...240 V, three phase
3000 rpm LXM15LU60N4, 230 V, three phase
8000 rpm LXM15LD10N4, 480 V, three phase
8000 rpm LXM15LU60N4, 480 V, three phase
3000 rpm LXM15LD10N4, 230 V, three phase
6000 rpm LXM15LD10N4, 400 V, three phase
3000 rpm LXM05AD28M2, 200...240 V, single phase
3000 rpm LXM05BD28M2, 200...240 V, single phase
3000 rpm LXM05CD28M2, 200...240 V, single phase
3000 rpm LXM15LD21M3, 230 V, single phase
3000 rpm LXM05AD22N4, 380...480 V, three phase
3000 rpm LXM05BD22N4, 380...480 V, three phase
3000 rpm LXM05CD22N4, 380...480 V, three phase
3000 rpm LXM15LD17N4, 230 V, three phase
3000 rpm LXM15LD21M3, 230 V, three phase
6000 rpm LXM15LD17N4, 400 V, three phase
6000 rpm LXM15LU60N4, 400 V, three phase
7000 rpm LXM15LD17N4, 480 V, three phase
5000 rpm LXM32.D18N4 6 A, 400 V, three phase
5000 rpm LXM32.D18N4 6 A, 480 V, three phase
product compatibility
LXM05AD17M2 200...240 V single phase
LXM05AD28M2 200...240 V single phase
LXM05BD17M2 200...240 V single phase
LXM05BD28M2 200...240 V single phase
LXM05CD17M2 200...240 V single phase
LXM05CD28M2 200...240 V single phase
LXM15LD21M3 230 V single phase
LXM15LU60N4 230 V three phase
LXM15LD13M3 230 V three phase
LXM15LU60N4 400 V three phase
LXM15LU60N4 480 V three phase
LXM15LD10N4 400 V three phase
LXM05AD17M3X 200...240 V three phase
LXM05BD17M3X 200...240 V three phase
LXM05CD17M3X 200...240 V three phase
LXM15LD10N4 230 V three phase
LXM15LD10N4 480 V three phase
LXM15LD21M3 230 V three phase
LXM15LD17N4 230 V three phase
LXM05AD22N4 380...480 V three phase
LXM05BD22N4 380...480 V three phase
LXM05CD22N4 380...480 V three phase
LXM15LD17N4 400 V three phase
LXM15LD17N4 480 V three phase
LXM32.D18N4 400 V three phase
LXM32.D18N4 480 V three phase
shaft end
Keyed
IP degree of protection
IP65 standard
IP67 with IP67 kit
speed feedback resolution
131072 points/turn x 4096 turns
holding brake
Without
mounting support
International standard flange
electrical connection
Rotatable right-angled connectors
Complementary
range compatibility
Lexium 15
Lexium 05
Lexium 32
supply voltage max
480 V
network number of phases
Three phase
continuous stall current
4,1 A
maximum continuous power
1,7 W
maximum current Irms
15,2 A LXM15LD13M3
15,2 A LXM15LD21M3
15,2 A LXM15LD17N4
15,2 A LXM15LU60N4
15,2 A LXM15LD10N4
17 A LXM05AD17M2
17 A LXM05AD28M2
17 A LXM05AD17M3X
17 A LXM05AD22N4
17 A LXM05BD17M2
17 A LXM05BD28M2
17 A LXM05BD17M3X
17 A LXM05BD22N4
17 A LXM05CD17M2
17 A LXM05CD28M2
17 A LXM05CD17M3X
17 A LXM05CD22N4
17 A LXM32.D18N4
maximum permanent current
17 A
switching frequency
8 kHz
second shaft
Without second shaft end
shaft diameter
14 mm
shaft length
30 mm
key width
20 mm
feedback type
Multiturn SinCos Hiperface
motor flange size
70 mm
number of motor stacks
3
torque constant
0,78 N.m/A 120 °C
back emf constant
49 V/krpm 120 °C
number of motor poles
6
rotor inertia
0,58 kg.cm²
stator resistance
2,7 Ohm 20 °C
stator inductance
13 mH 20 °C
stator electrical time constant
4,82 ms 20 °C
maximum radial force Fr
400 N 6000 rpm
430 N 5000 rpm
460 N 4000 rpm
510 N 3000 rpm
580 N 2000 rpm
730 N 1000 rpm
maximum axial force Fa
0.2 x Fr
type of cooling
Natural convection
length
220 mm
centring collar diameter
60 mm
centring collar depth
2,5 mm
number of mounting holes
4
mounting holes diameter
5,5 mm
circle diameter of the mounting holes
82 mm
net weight
3,62 kg
