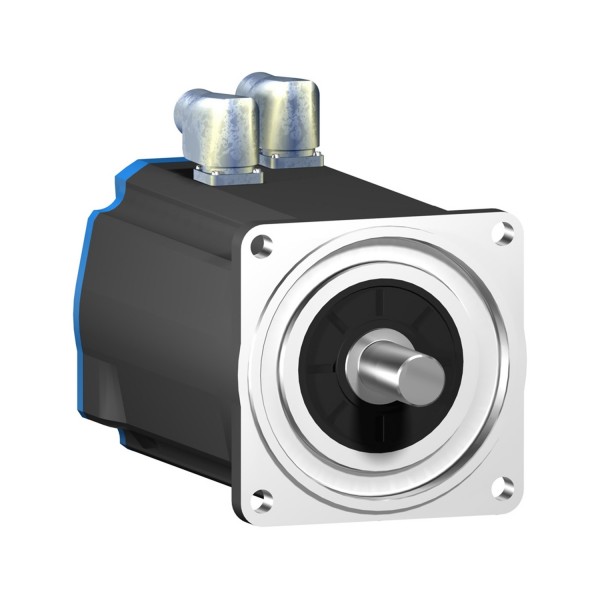

AC servo motor BSH - 11.1 N.m - 2500 rpm - keyed shaft - without brake - IP50

Ülevaaded: 0

Tootekood: BSH1401T12A2A

Quick Overview

Saadavus: Tellimisel

2 402,01 € (ilma KM-ta)

Details

Main
product or component type
Servo motor
device short name
BSH
maximum mechanical speed
4000 rpm
continuous stall torque
11.1 N.m for LXM15MD56N4, 230 V, three phase
11.4 N.m for LXM05AD42M3X, 200...240 V, three phase
11.4 N.m for LXM05BD42M3X, 200...240 V, three phase
11.4 N.m for LXM05CD42M3X, 200...240 V, three phase
peak stall torque
23.33 N.m for LXM15MD56N4, 230 V, three phase
23.33 N.m for LXM05AD42M3X, 200...240 V, three phase
23.33 N.m for LXM05BD42M3X, 200...240 V, three phase
23.33 N.m for LXM05CD42M3X, 200...240 V, three phase
nominal output power
2000 W for LXM15MD56N4, 230 V, three phase
2200 W for LXM05AD42M3X, 200...240 V, three phase
2200 W for LXM05BD42M3X, 200...240 V, three phase
2200 W for LXM05CD42M3X, 200...240 V, three phase
nominal torque
6.9 N.m for LXM05AD42M3X, 200...240 V, three phase
6.9 N.m for LXM05BD42M3X, 200...240 V, three phase
6.9 N.m for LXM05CD42M3X, 200...240 V, three phase
7.63 N.m for LXM15MD56N4, 230 V, three phase
nominal speed
3000 rpm for LXM05AD42M3X, 200...240 V, three phase
3000 rpm for LXM05BD42M3X, 200...240 V, three phase
3000 rpm for LXM05CD42M3X, 200...240 V, three phase
2500 rpm for LXM15MD56N4, 230 V, three phase
product compatibility
LXM05AD42M3X at 200...240 V three phase
LXM05BD42M3X at 200...240 V three phase
LXM05CD42M3X at 200...240 V three phase
LXM15MD56N4 at 230 V three phase
shaft end
Keyed
IP degree of protection
IP50 standard
speed feedback resolution
131072 points/turn x 4096 turns
holding brake
Without
mounting support
International standard flange
electrical connection
Rotatable right-angled connectors
Complementary
range compatibility
Lexium 05
Lexium 15
supply voltage max
480 V
network number of phases
Three phase
continuous stall current
13.9 A
maximum continuous power
3.6 W
maximum current Irms
37.1 A for LXM15MD56N4
37.1 A for LXM05AD42M3X
37.1 A for LXM05BD42M3X
37.1 A for LXM05CD42M3X
maximum permanent current
37.1 A
switching frequency
4 kHz
second shaft
Without second shaft end
shaft diameter
24 mm
shaft length
50 mm
key width
40 mm
feedback type
Multiturn SinCos Hiperface
motor flange size
140 mm
number of motor stacks
1
torque constant
0.83 N.m/A at 120 °C
back emf constant
56 V/krpm at 120 °C
number of motor poles
10
rotor inertia
7.41 kg.cm²
stator resistance
0.4 Ohm at 20 °C
0.44 Ohm at 20 °C
stator inductance
4.9 mH at 20 °C
5.15 mH at 20 °C
stator electrical time constant
11.14 ms at 20 °C
12.88 ms at 20 °C
maximum radial force Fr
1530 N at 3000 rpm
1760 N at 2000 rpm
2210 N at 1000 rpm
maximum axial force Fa
0.2 x Fr
type of cooling
Natural convection
length
217.5 mm
centring collar diameter
130 mm
centring collar depth
3.5 mm
number of mounting holes
4
mounting holes diameter
11 mm
circle diameter of the mounting holes
165 mm
net weight
11.9 kg
Contractual warranty
Warranty
18 months
