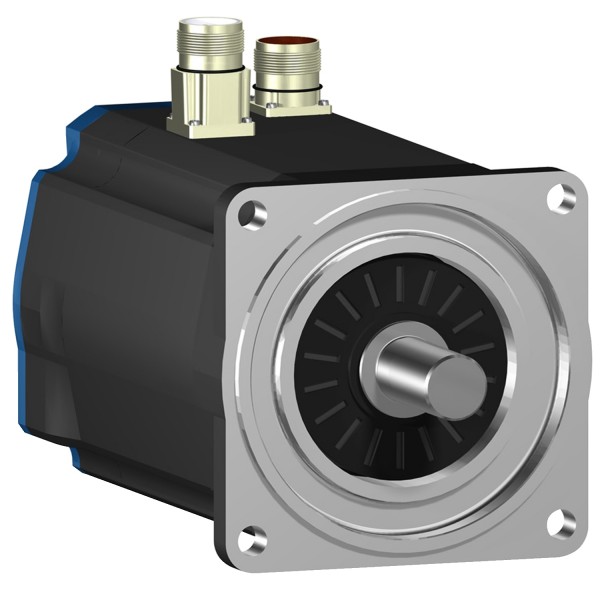

AC servo motor BSH - 11.1 N.m - 2500 rpm - keyed shaft - without brake - IP50

Previous

AC servo motor BSH - 1.1 N.m - 3000 rpm - untapped shaft - with brake - IP50

AC servo motor BSH - 3.4 N.m - 2500 rpm - keyed shaft - with brake - IP65

Ülevaaded: 0

Tootekood: BSH1002P31F1A

Quick Overview

Saadavus: Tellimisel

1 968,21 € (ilma KM-ta)

Details

Main
product or component type
Servo motor
device short name
BSH
maximum mechanical speed
6000 rpm
continuous stall torque
4,5 N.m LXM15LD21M3, 230 V, single phase
3,4 N.m LXM15LD13M3, 230 V, three phase
3,4 N.m LXM15LD10N4, 230 V, three phase
3,4 N.m LXM15LD10N4, 400 V, three phase
3,4 N.m LXM15LD10N4, 480 V, three phase
5,8 N.m LXM15LD17N4, 400 V, three phase
5,8 N.m LXM15LD17N4, 480 V, three phase
5,8 N.m LXM15LD21M3, 230 V, three phase
5,5 N.m LXM05AD17M3X, 200...240 V, three phase
5,5 N.m LXM05AD22N4, 380...480 V, three phase
5,5 N.m LXM05AD28M2, 200...240 V, single phase
5,5 N.m LXM05BD17M3X, 200...240 V, three phase
5,5 N.m LXM05BD22N4, 380...480 V, three phase
5,5 N.m LXM05BD28M2, 200...240 V, single phase
5,5 N.m LXM05CD17M3X, 200...240 V, three phase
5,5 N.m LXM05CD22N4, 380...480 V, three phase
5,5 N.m LXM05CD28M2, 200...240 V, single phase
5,8 N.m LXM32.D18N4 6 A, 400 V, three phase
5,8 N.m LXM32.D18N4 6 A, 480 V, three phase
peak stall torque
9,39 N.m LXM15LD21M3, 230 V, single phase
5,6 N.m LXM15LD13M3, 230 V, three phase
8 N.m LXM15LD10N4, 230 V, three phase
8 N.m LXM15LD10N4, 400 V, three phase
8 N.m LXM15LD10N4, 480 V, three phase
12,13 N.m LXM15LD17N4, 400 V, three phase
12,13 N.m LXM15LD17N4, 480 V, three phase
14,79 N.m LXM15LD21M3, 230 V, three phase
11,23 N.m LXM05AD17M3X, 200...240 V, three phase
13,92 N.m LXM05AD22N4, 380...480 V, three phase
16 N.m LXM05AD28M2, 200...240 V, single phase
11,23 N.m LXM05BD17M3X, 200...240 V, three phase
13,92 N.m LXM05BD22N4, 380...480 V, three phase
16 N.m LXM05BD28M2, 200...240 V, single phase
11,23 N.m LXM05CD17M3X, 200...240 V, three phase
13,92 N.m LXM05CD22N4, 380...480 V, three phase
16 N.m LXM05CD28M2, 200...240 V, single phase
18,3 N.m LXM32.D18N4 6 A, 400 V, three phase
18,3 N.m LXM32.D18N4 6 A, 480 V, three phase
nominal output power
950 W LXM15LD21M3, 230 V, single phase
950 W LXM15LD21M3, 230 V, three phase
780 W LXM05AD28M2, 200...240 V, single phase
780 W LXM05BD28M2, 200...240 V, single phase
780 W LXM05CD28M2, 200...240 V, single phase
1400 W LXM05AD22N4, 380...480 V, three phase
1400 W LXM05BD22N4, 380...480 V, three phase
1400 W LXM05CD22N4, 380...480 V, three phase
1600 W LXM15LD10N4, 400 V, three phase
1700 W LXM15LD17N4, 400 V, three phase
1950 W LXM15LD17N4, 480 V, three phase
2150 W LXM15LD10N4, 480 V, three phase
780 W LXM05AD17M3X, 200...240 V, three phase
780 W LXM05BD17M3X, 200...240 V, three phase
780 W LXM05CD17M3X, 200...240 V, three phase
840 W LXM15LD13M3, 230 V, three phase
890 W LXM15LD10N4, 230 V, three phase
1700 W LXM32.D18N4 6 A, 400 V, three phase
1700 W LXM32.D18N4 6 A, 480 V, three phase
nominal torque
4,5 N.m LXM15LD21M3, 230 V, single phase
4,96 N.m LXM05AD28M2, 200...240 V, single phase
4,96 N.m LXM05BD28M2, 200...240 V, single phase
4,96 N.m LXM05CD28M2, 200...240 V, single phase
3,4 N.m LXM15LD10N4, 230 V, three phase
3,4 N.m LXM15LD10N4, 400 V, three phase
3,4 N.m LXM15LD10N4, 480 V, three phase
3,4 N.m LXM15LD13M3, 230 V, three phase
3,7 N.m LXM15LD17N4, 480 V, three phase
4 N.m LXM15LD17N4, 400 V, three phase
4,4 N.m LXM05AD22N4, 380...480 V, three phase
4,4 N.m LXM05BD22N4, 380...480 V, three phase
4,4 N.m LXM05CD22N4, 380...480 V, three phase
4,96 N.m LXM05AD17M3X, 200...240 V, three phase
4,96 N.m LXM05BD17M3X, 200...240 V, three phase
4,96 N.m LXM05CD17M3X, 200...240 V, three phase
5,8 N.m LXM15LD21M3, 230 V, three phase
4 N.m LXM32.D18N4 6 A, 400 V, three phase
4 N.m LXM32.D18N4 6 A, 480 V, three phase
nominal speed
3000 rpm LXM05AD22N4, 380...480 V, three phase
3000 rpm LXM05BD22N4, 380...480 V, three phase
3000 rpm LXM05CD22N4, 380...480 V, three phase
1500 rpm LXM05AD17M3X, 200...240 V, three phase
1500 rpm LXM05BD17M3X, 200...240 V, three phase
1500 rpm LXM05CD17M3X, 200...240 V, three phase
4500 rpm LXM15LD10N4, 400 V, three phase
6000 rpm LXM15LD10N4, 480 V, three phase
4000 rpm LXM32.D18N4 6 A, 400 V, three phase
4000 rpm LXM32.D18N4 6 A, 480 V, three phase
1500 rpm LXM05AD28M2, 200...240 V, single phase
1500 rpm LXM05BD28M2, 200...240 V, single phase
1500 rpm LXM05CD28M2, 200...240 V, single phase
2000 rpm LXM15LD21M3, 230 V, single phase
2000 rpm LXM15LD21M3, 230 V, three phase
2500 rpm LXM15LD10N4, 230 V, three phase
2500 rpm LXM15LD13M3, 230 V, three phase
4000 rpm LXM15LD17N4, 400 V, three phase
5000 rpm LXM15LD17N4, 480 V, three phase
product compatibility
LXM05AD28M2 200...240 V single phase
LXM05BD28M2 200...240 V single phase
LXM05CD28M2 200...240 V single phase
LXM15LD21M3 230 V single phase
LXM15LD13M3 230 V three phase
LXM15LD10N4 400 V three phase
LXM05AD17M3X 200...240 V three phase
LXM05BD17M3X 200...240 V three phase
LXM05CD17M3X 200...240 V three phase
LXM15LD10N4 230 V three phase
LXM15LD10N4 480 V three phase
LXM15LD21M3 230 V three phase
LXM05AD22N4 380...480 V three phase
LXM05BD22N4 380...480 V three phase
LXM05CD22N4 380...480 V three phase
LXM15LD17N4 400 V three phase
LXM15LD17N4 480 V three phase
LXM32.D18N4 400 V three phase
LXM32.D18N4 480 V three phase
shaft end
Keyed
IP degree of protection
IP65 standard
IP67 with IP67 kit
speed feedback resolution
131072 points/turn
holding brake
With
mounting support
International standard flange
electrical connection
Straight connectors
Complementary
range compatibility
Lexium 15
Lexium 05
Lexium 32
supply voltage max
480 V
network number of phases
Three phase
continuous stall current
4,8 A
maximum continuous power
2,51 W
maximum current Irms
17,1 A LXM15LD13M3
17,1 A LXM15LD21M3
17,1 A LXM15LD10N4
17,1 A LXM15LD17N4
17,1 A LXM05AD28M2
17,1 A LXM05AD17M3X
17,1 A LXM05AD22N4
17,1 A LXM05BD28M2
17,1 A LXM05BD17M3X
17,1 A LXM05BD22N4
17,1 A LXM05CD28M2
17,1 A LXM05CD17M3X
17,1 A LXM05CD22N4
17,1 A LXM32.D18N4
maximum permanent current
17,1 A
switching frequency
8 kHz
second shaft
Without second shaft end
shaft diameter
19 mm
shaft length
40 mm
key width
30 mm
feedback type
Single turn SinCos Hiperface
holding torque
9 N.m holding brake
motor flange size
100 mm
number of motor stacks
2
torque constant
1,21 N.m/A 120 °C
back emf constant
77 V/krpm 120 °C
number of motor poles
8
rotor inertia
2,928 kg.cm²
stator resistance
2,4 Ohm 20 °C
stator inductance
12,7 mH 20 °C
stator electrical time constant
5,29 ms 20 °C
maximum radial force Fr
620 N 4000 rpm
690 N 3000 rpm
790 N 2000 rpm
990 N 1000 rpm
maximum axial force Fa
0.2 x Fr
brake pull-in power
18 W
type of cooling
Natural convection
length
235,5 mm
centring collar diameter
95 mm
centring collar depth
3,5 mm
number of mounting holes
4
mounting holes diameter
9 mm
circle diameter of the mounting holes
115 mm
net weight
6,3 kg
