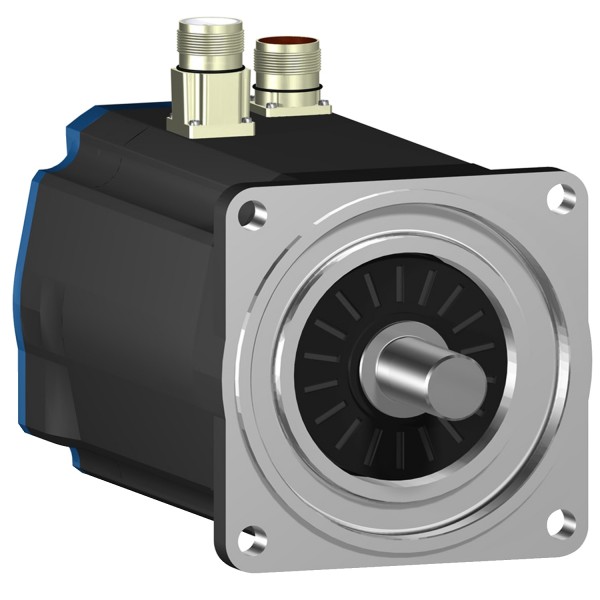

| product or component type | Servo motor | |
|---|---|---|
| device short name | BSH | |
| maximum mechanical speed | 6000 rpm | |
| continuous stall torque | 8 N.m LXM32.D30N4 10 A, 400 V, three phase8 N.m LXM32.D30N4 10 A, 480 V, three phase7,8 N.m LXM05CD28M2, 200...240 V, single phase7,8 N.m LXM05AD28M2, 200...240 V, single phase7,8 N.m LXM05BD28M2, 200...240 V, single phase7,8 N.m LXM05BD34N4, 380...480 V, three phase7,8 N.m LXM05BD42M3X, 200...240 V, three phase7,8 N.m LXM05CD34N4, 380...480 V, three phase7,8 N.m LXM05CD42M3X, 200...240 V, three phase6,7 N.m LXM15LD21M3, 230 V, three phase6,7 N.m LXM15LD17N4, 230 V, three phase6,7 N.m LXM15LD17N4, 400 V, three phase6,7 N.m LXM15LD17N4, 480 V, three phase7,8 N.m LXM15LD28M3, 230 V, three phase7,8 N.m LXM15MD28N4, 400 V, three phase7,8 N.m LXM15MD28N4, 480 V, three phase7,8 N.m LXM15MD40N4, 400 V, three phase7,8 N.m LXM15MD40N4, 480 V, three phase7,8 N.m LXM05AD34N4, 380...480 V, three phase7,8 N.m LXM05AD42M3X, 200...240 V, three phase | |
| peak stall torque | 28,3 N.m LXM32.D30N4 10 A, 400 V, three phase28,3 N.m LXM32.D30N4 10 A, 480 V, three phase19,69 N.m LXM05AD28M2, 200...240 V, single phase19,69 N.m LXM05BD28M2, 200...240 V, single phase19,69 N.m LXM05CD28M2, 200...240 V, single phase15,5 N.m LXM15LD21M3, 230 V, three phase12,5 N.m LXM15LD17N4, 230 V, three phase12,5 N.m LXM15LD17N4, 400 V, three phase12,5 N.m LXM15LD17N4, 480 V, three phase19,69 N.m LXM15LD28M3, 230 V, three phase19,69 N.m LXM15MD28N4, 400 V, three phase19,69 N.m LXM15MD28N4, 480 V, three phase23,17 N.m LXM15MD40N4, 400 V, three phase23,17 N.m LXM15MD40N4, 480 V, three phase23,01 N.m LXM05AD34N4, 380...480 V, three phase23,17 N.m LXM05AD42M3X, 200...240 V, three phase23,01 N.m LXM05BD34N4, 380...480 V, three phase23,17 N.m LXM05BD42M3X, 200...240 V, three phase23,01 N.m LXM05CD34N4, 380...480 V, three phase23,17 N.m LXM05CD42M3X, 200...240 V, three phase | |
| nominal output power | 2000 W LXM32.D30N4 10 A, 400 V, three phase2600 W LXM32.D30N4 10 A, 480 V, three phase1100 W LXM05AD28M2, 200...240 V, single phase1100 W LXM05BD28M2, 200...240 V, single phase1100 W LXM05CD28M2, 200...240 V, single phase1100 W LXM05AD42M3X, 200...240 V, three phase1100 W LXM05BD42M3X, 200...240 V, three phase1100 W LXM05CD42M3X, 200...240 V, three phase1300 W LXM15LD28M3, 230 V, three phase1700 W LXM15LD17N4, 230 V, three phase1700 W LXM15LD21M3, 230 V, three phase1800 W LXM05AD34N4, 380...480 V, three phase1800 W LXM05BD34N4, 380...480 V, three phase1800 W LXM05CD34N4, 380...480 V, three phase2000 W LXM15MD28N4, 400 V, three phase2000 W LXM15MD40N4, 400 V, three phase2200 W LXM15LD17N4, 400 V, three phase2200 W LXM15MD28N4, 480 V, three phase2200 W LXM15MD40N4, 480 V, three phase2300 W LXM15LD17N4, 480 V, three phase | |
| nominal torque | 6,3 N.m LXM32.D30N4 10 A, 400 V, three phase6,3 N.m LXM32.D30N4 10 A, 480 V, three phase3,7 N.m LXM15LD17N4, 480 V, three phase6,73 N.m LXM05AD28M2, 200...240 V, single phase6,73 N.m LXM05BD28M2, 200...240 V, single phase6,73 N.m LXM05CD28M2, 200...240 V, single phase4,6 N.m LXM15MD28N4, 480 V, three phase4,6 N.m LXM15MD40N4, 480 V, three phase4,7 N.m LXM15LD17N4, 400 V, three phase5 N.m LXM15MD28N4, 400 V, three phase5 N.m LXM15MD40N4, 400 V, three phase5,7 N.m LXM05AD34N4, 380...480 V, three phase5,7 N.m LXM05BD34N4, 380...480 V, three phase5,7 N.m LXM05CD34N4, 380...480 V, three phase6 N.m LXM15LD17N4, 230 V, three phase6 N.m LXM15LD21M3, 230 V, three phase6,3 N.m LXM15LD28M3, 230 V, three phase6,73 N.m LXM05AD42M3X, 200...240 V, three phase6,73 N.m LXM05BD42M3X, 200...240 V, three phase6,73 N.m LXM05CD42M3X, 200...240 V, three phase | |
| nominal speed | 3000 rpm LXM32.D30N4 10 A, 400 V, three phase4000 rpm LXM32.D30N4 10 A, 480 V, three phase4500 rpm LXM15LD17N4, 400 V, three phase6000 rpm LXM15LD17N4, 480 V, three phase1500 rpm LXM05AD28M2, 200...240 V, single phase1500 rpm LXM05BD28M2, 200...240 V, single phase1500 rpm LXM05CD28M2, 200...240 V, single phase1500 rpm LXM05AD42M3X, 200...240 V, three phase1500 rpm LXM05BD42M3X, 200...240 V, three phase1500 rpm LXM05CD42M3X, 200...240 V, three phase2000 rpm LXM15LD28M3, 230 V, three phase2500 rpm LXM15LD17N4, 230 V, three phase2500 rpm LXM15LD21M3, 230 V, three phase3000 rpm LXM05AD34N4, 380...480 V, three phase3000 rpm LXM05BD34N4, 380...480 V, three phase3000 rpm LXM05CD34N4, 380...480 V, three phase4000 rpm LXM15MD28N4, 400 V, three phase4000 rpm LXM15MD40N4, 400 V, three phase4500 rpm LXM15MD28N4, 480 V, three phase4500 rpm LXM15MD40N4, 480 V, three phase | |
| product compatibility | LXM05AD28M2 200...240 V single phaseLXM05BD28M2 200...240 V single phaseLXM05CD28M2 200...240 V single phaseLXM15LD21M3 230 V three phaseLXM05AD42M3X 200...240 V three phaseLXM05BD42M3X 200...240 V three phaseLXM05CD42M3X 200...240 V three phaseLXM15LD17N4 230 V three phaseLXM15LD17N4 400 V three phaseLXM15LD17N4 480 V three phaseLXM15LD28M3 230 V three phaseLXM05AD34N4 380...480 V three phaseLXM05BD34N4 380...480 V three phaseLXM05CD34N4 380...480 V three phaseLXM15MD28N4 400 V three phaseLXM15MD28N4 480 V three phaseLXM15MD40N4 400 V three phaseLXM15MD40N4 480 V three phaseLXM32.D30N4 400 V three phaseLXM32.D30N4 480 V three phase | |
| shaft end | Untapped | |
| IP degree of protection | IP65 standardIP67 with IP67 kit | |
| speed feedback resolution | 131072 points/turn x 4096 turns | |
| holding brake | With | |
| mounting support | International standard flange | |
| electrical connection | Straight connectors |
| range compatibility | Lexium 05Lexium 32Lexium 15 | |
|---|---|---|
| supply voltage max | 480 V | |
| network number of phases | Three phase | |
| continuous stall current | 6,6 A | |
| maximum continuous power | 3,14 W | |
| maximum current Irms | 28,3 A LXM15LD21M328,3 A LXM15LD28M328,3 A LXM15LD17N428,3 A LXM15MD28N428,3 A LXM15MD40N428,3 A LXM05AD28M228,3 A LXM05AD42M3X28,3 A LXM05AD34N428,3 A LXM05BD28M228,3 A LXM05BD42M3X28,3 A LXM05BD34N428,3 A LXM05CD28M228,3 A LXM05CD42M3X28,3 A LXM05CD34N428,3 A LXM32.D30N4 | |
| maximum permanent current | 28,3 A | |
| switching frequency | 8 kHz | |
| second shaft | Without second shaft end | |
| shaft diameter | 19 mm | |
| shaft length | 40 mm | |
| feedback type | Multiturn SinCos Hiperface | |
| holding torque | 9 N.m holding brake | |
| motor flange size | 100 mm | |
| number of motor stacks | 3 | |
| torque constant | 1,22 N.m/A 120 °C | |
| back emf constant | 77 V/krpm 120 °C | |
| number of motor poles | 8 | |
| rotor inertia | 3,838 kg.cm² | |
| stator resistance | 1,43 Ohm 20 °C | |
| stator inductance | 8,8 mH 20 °C | |
| stator electrical time constant | 6,15 ms 20 °C | |
| maximum radial force Fr | 1050 N 1000 rpm660 N 4000 rpm730 N 3000 rpm830 N 2000 rpm | |
| maximum axial force Fa | 0.2 x Fr | |
| brake pull-in power | 18 W | |
| type of cooling | Natural convection | |
| length | 271,5 mm | |
| centring collar diameter | 95 mm | |
| centring collar depth | 3,5 mm | |
| number of mounting holes | 4 | |
| mounting holes diameter | 9 mm | |
| circle diameter of the mounting holes | 115 mm | |
| net weight | 8 kg |
