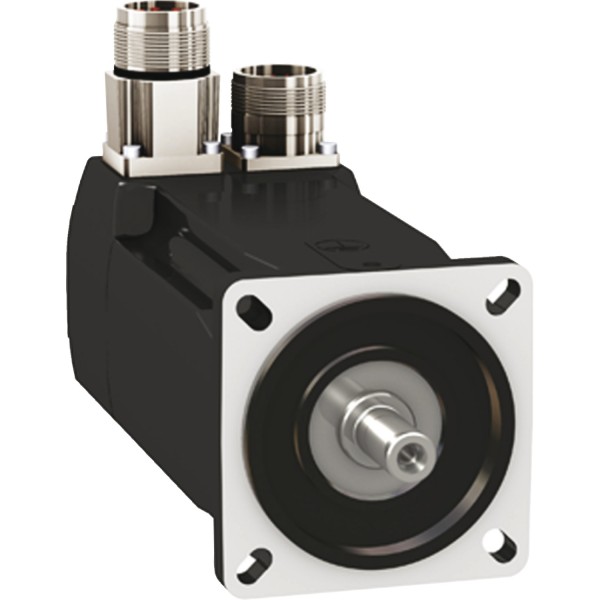

servo motor BMH - 2.5 Nm - 8000 rpm - keyed shaft - with brake - IP65/IP67 - Mootorid - Tööstusautomaatika

Details

Main
product or component type	Servo motor
device short name	BMH
maximum mechanical speed	8000 rpm
continuous stall torque	2.5 N.m for LXM32.D30M2 at 10 A, 115 V, single phase 2.5 N.m for LXM32.D18M2 at 6 A, 230 V, single phase
peak stall torque	6.4 N.m for LXM32.D30M2 at 10 A, 115 V, single phase 7.4 N.m for LXM32.D18M2 at 6 A, 230 V, single phase
nominal output power	600 W for LXM32.D30M2 at 10 A, 115 V, single phase 900 W for LXM32.D18M2 at 6 A, 230 V, single phase
nominal torque	2.3 N.m for LXM32.D30M2 at 10 A, 115 V, single phase 2.1 N.m for LXM32.D18M2 at 6 A, 230 V, single phase
nominal speed	2500 rpm for LXM32.D30M2 at 10 A, 115 V, single phase 4000 rpm for LXM32.D18M2 at 6 A, 230 V, single phase
product compatibility	LXM32.D30M2 at 115 V single phase LXM32.D18M2 at 230 V single phase
shaft end	Keyed
IP degree of protection	IP65 standard IP67 with IP67 kit
speed feedback resolution	32768 points/turn
holding brake	With
mounting support	International standard flange
electrical connection	Straight connectors

Complementary
range compatibility	Lexium 32
[Us] rated supply voltage	240 V
network number of phases	Three phase
continuous stall current	5.38 A
continuous power	1.51 W
maximum current Irms	15 A for LXM32.D30M2 17.5 A for LXM32.D18M2
maximum permanent current	17.71 A
second shaft	Without second shaft end
shaft diameter	11 mm
shaft length	23 mm
key width	18 mm
feedback type	Single turn SinCos Hiperface
holding torque	3 N.m holding brake
motor flange size	70 mm
number of motor stacks	2
torque constant	0.46 N.m/A at 120 °C
back emf constant	29.6 V/krpm at 120 °C
number of motor poles	10
rotor inertia	1.24 kg.cm²
stator resistance	1.15 Ohm at 20 °C
stator inductance	3.6 mH at 20 °C
stator electrical time constant	3.1 ms at 20 °C
maximum radial force Fr	710 N at 1000 rpm 560 N at 2000 rpm 490 N at 3000 rpm 450 N at 4000 rpm 410 N at 5000 rpm 390 N at 6000 rpm
maximum axial force Fa	0.2 x Fr
brake pull-in power	7 W
type of cooling	Natural convection
length	193 mm
centring collar diameter	60 mm
centring collar depth	2.5 mm
number of mounting holes	4
mounting holes diameter	5.5 mm
circle diameter of the mounting holes	82 mm
net weight	3.3 kg

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
