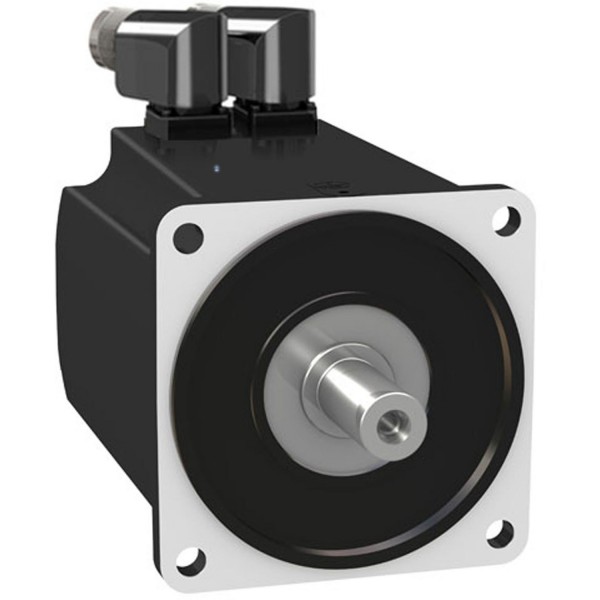

servo motor BMH - 24 Nm - 4000 rpm - untapped shaft - without brake - IP65/IP67 - Mootorid - Tööstusautomaatika

Details

Main
product or component type	Servo motor
device short name	BMH
maximum mechanical speed	4000 rpm
continuous stall torque	24 N.m for LXM32.D72N4 at 24 A, 400 V, three phase 24 N.m for LXM32.D72N4 at 24 A, 480 V, three phase
peak stall torque	71.8 N.m for LXM32.D72N4 at 24 A, 400 V, three phase 71.8 N.m for LXM32.D72N4 at 24 A, 480 V, three phase
nominal output power	4700 W for LXM32.D72N4 at 24 A, 400 V, three phase 4700 W for LXM32.D72N4 at 24 A, 480 V, three phase
nominal torque	14.3 N.m for LXM32.D72N4 at 24 A, 400 V, three phase 14.3 N.m for LXM32.D72N4 at 24 A, 480 V, three phase
nominal speed	3000 rpm for LXM32.D72N4 at 24 A, 400 V, three phase 3000 rpm for LXM32.D72N4 at 24 A, 480 V, three phase
product compatibility	LXM32.D72N4 at 400...480 V three phase
shaft end	Smooth shaft
IP degree of protection	IP65 standard IP67 with IP67 kit
speed feedback resolution	32768 points/turn
holding brake	Without
mounting support	International standard flange
electrical connection	Rotatable right-angled connectors

Complementary
range compatibility	Lexium 32
[Us] rated supply voltage	480 V
network number of phases	Three phase
continuous stall current	18 A
continuous power	4.8 W
maximum current Irms	62.3 A for LXM32.D72N4
maximum permanent current	62.3 A
second shaft	Without second shaft end
shaft diameter	24 mm
shaft length	50 mm
feedback type	Single turn SinCos Hiperface
motor flange size	140 mm
number of motor stacks	3
torque constant	1.34 N.m/A at 120 °C
back emf constant	85.9 V/krpm at 120 °C
number of motor poles	10
rotor inertia	47.5 kg.cm²
stator resistance	0.22 Ohm at 20 °C
stator inductance	3 mH at 20 °C
stator electrical time constant	13.6 ms at 20 °C
maximum radial force Fr	2420 N at 1000 rpm 1920 N at 2000 rpm 1680 N at 3000 rpm
maximum axial force Fa	0.2 x Fr
type of cooling	Natural convection
length	232 mm
centring collar diameter	130 mm
centring collar depth	3.5 mm
number of mounting holes	4
mounting holes diameter	11 mm
circle diameter of the mounting holes	165 mm
net weight	16 kg

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
