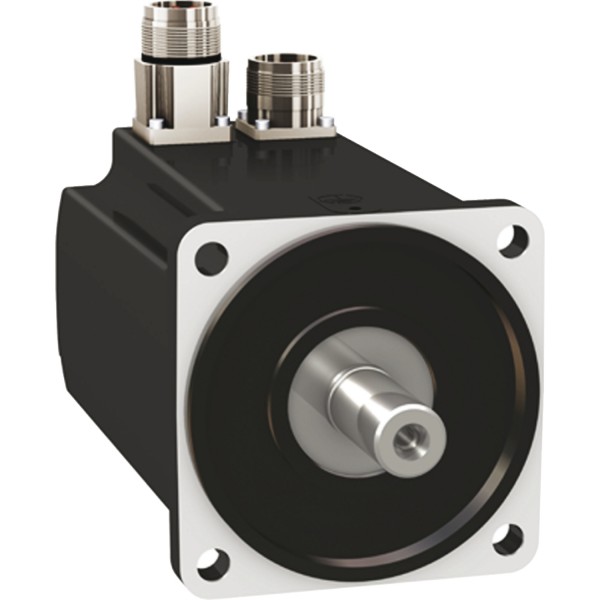

servo motor BMH - 6 Nm - 6000 rpm - keyed shaft - without brake - IP54 - Mootorid - Tööstusautomaatika

Details

Main
product or component type	Servo motor
device short name	BMH
maximum mechanical speed	6000 rpm
continuous stall torque	6 N.m for LXM32.D30M2 at 10 A, 115 V, single phase 6 N.m for LXM32.D30M2 at 10 A, 230 V, single phase
peak stall torque	10.3 N.m for LXM32.D30M2 at 10 A, 115 V, single phase 18.4 N.m for LXM32.D30M2 at 10 A, 230 V, single phase
nominal output power	750 W for LXM32.D30M2 at 10 A, 115 V, single phase 1450 W for LXM32.D30M2 at 10 A, 230 V, single phase
nominal torque	3.5 N.m for LXM32.D30M2 at 10 A, 115 V, single phase 4.6 N.m for LXM32.D30M2 at 10 A, 230 V, single phase
nominal speed	2000 rpm for LXM32.D30M2 at 10 A, 115 V, single phase 3000 rpm for LXM32.D30M2 at 10 A, 230 V, single phase
product compatibility	LXM32.D30M2 at 115 V single phase LXM32.D30M2 at 230 V single phase
shaft end	Keyed
IP degree of protection	IP54 standard
speed feedback resolution	131072 points/turn x 4096 turns
holding brake	Without
mounting support	International standard flange
electrical connection	Straight connectors

Complementary
range compatibility	Lexium 32
[Us] rated supply voltage	240 V
network number of phases	Three phase
continuous stall current	8.65 A
continuous power	2.39 W
maximum current Irms	15 A for LXM32.D30M2 at 115 V 30 A for LXM32.D30M2 at 230 V
maximum permanent current	30.24 A
second shaft	Without second shaft end
shaft diameter	19 mm
shaft length	40 mm
key width	30 mm
feedback type	Multiturn SinCos Hiperface
motor flange size	100 mm
number of motor stacks	2
torque constant	0.72 N.m/A at 120 °C
back emf constant	46.2 V/krpm at 120 °C
number of motor poles	10
rotor inertia	6.28 kg.cm²
stator resistance	0.54 Ohm at 20 °C
stator inductance	2.7 mH at 20 °C
stator electrical time constant	5 ms at 20 °C
maximum radial force Fr	990 N at 1000 rpm 790 N at 2000 rpm 690 N at 3000 rpm 620 N at 4000 rpm 580 N at 5000 rpm
maximum axial force Fa	0.2 x Fr
type of cooling	Natural convection
length	160.6 mm
centring collar diameter	95 mm
centring collar depth	3.5 mm
number of mounting holes	4
mounting holes diameter	9 mm
circle diameter of the mounting holes	115 mm
net weight	4.92 kg

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
