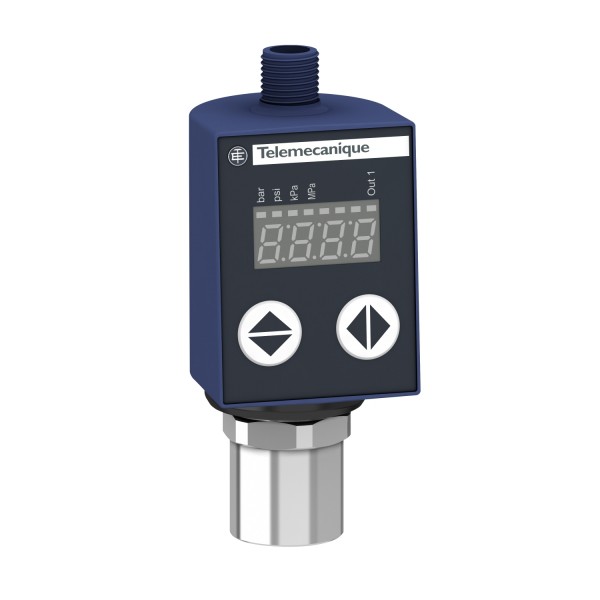

Pressure sensors XMLR 10bar - 1/4" 18 NPT - 24VDC - 4..20 mA - PNP - M12

Ülevaaded: 0

Tootekood: XMLR010G1P26

Quick Overview

Saadavus: Tellimisel

286,37 € (ilma KM-ta)

Details

Main
range of product
OsiSense XM
product or component type
Electronic pressure sensors
pressure sensor type
Pressure transmitter
pressure switch type of operation
Pressure transmitter with 1 switching output
device short name
XMLR
pressure sensor size
999.74 kPa
10 bar
maximum permissible accidental pressure
4 MPa
3998.96 kPa
40 bar
destruction pressure
3998.96 kPa
40 bar
4 MPa
controlled fluid
Fresh water (0…80 °C)
Air (-20…80 °C)
Hydraulic oil (-20…80 °C)
Refrigeration fluid (-20…80 °C)
fluid connection type
1/4" - 18 NPT (female)
[Us] rated supply voltage
24 V DC SELV (voltage limits: 17…33 V)
Complementary
current consumption
<= 50 mA
electrical connection
Male connector M12, 4 pins
analogue output function
4...20 mA
type of output signal
Analogue + discrete
analogue output function
4...20 mA
discrete output type
Solid state PNP, NO/NC programmable
maximum switching current
250 mA
contacts type and composition
NO/NC programmable
scale type
Fixed differential
maximum voltage drop
2 V
adjustable range of switching point on rising pressure
79.98…999.74 kPa
0.8…10 bar
0.08…1 MPa
adjustable range of switching point on falling pressure
0.5…9.7 bar
0.05…0.97 MPa
49.99…972.16 kPa
minimum differential travel
29.99 kPa
30 kPa
0.3 bar
materials in contact with fluid
316L stainless steel
Ceramic
Fluorocarbon FKM (Viton)
front material
Polyester
housing material
316L stainless steel
Polyacrylamide
operating position
Any position, but disposals can falsified the measurement in case of upside down mounting
protection type
Overvoltage protection
Overload protection
Reverse polarity
Short-circuit protection
response time on output
<= 10 ms for analog output
<= 5 ms for discrete output
switching output time delay
0...50 s in steps of 1 second
display type
4 digits 7 segments
local signalling
1 LED (yellow)light ON when switch is actuated:
display response time type
Fast 50 ms
Normal 200 ms
Slow 600 ms
maximum delay first up
300 ms
overall accuracy
<= 1 % of the measuring range
linearity error on analogue output
<= 0.5 % of the measuring range
hysteresis on analogue output
<= 0.2 % of the measuring range
measurement accuracy on switching output
<= 0.6 % of the measuring range
repeat accuracy
<= 0.2 % of the measuring range
drift of the sensitivity
+/- 0.03 % of measuring range/°C
drift of the zero point
+/- 0.1 % of measuring range/°C
display accuracy
<= 1 % of the measuring range
mechanical durability
10000000 cycles
depth
42 mm
height
100 mm
width
41 mm
net weight
0.212 kg
[Uimp] rated impulse withstand voltage
0.5 kV DC
electromagnetic compatibility
Susceptibility to electromagnetic fields: 10 V/m 80...2000 MHz conforming to EN/IEC 61000-4-3
Immunity to conducted RF disturbances: 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6
Surge immunity test: 1 kV conforming to EN/IEC 61000-4-5
Electrical fast transient/burst immunity test: 2 kV conforming to EN/IEC 61000-4-4
Electrostatic discharge immunity test: 8 kV air, 4 kV contact conforming to EN/IEC 61000-4-2
Environment
marking
CE
product certifications
EAC
CULus
standards
EN/IEC 61326-2-3
UL 61010-1
ambient air temperature for operation
-20…80 °C
ambient air temperature for storage
-40…80 °C
IP degree of protection
IP65 conforming to EN/IEC 60529
IP67 conforming to EN/IEC 60529
vibration resistance
20 gn (f= 10…2000 Hz) conforming to EN/IEC 60068-2-6
shock resistance
50 gn conforming to EN/IEC 60068-2-27
Offer Sustainability
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
