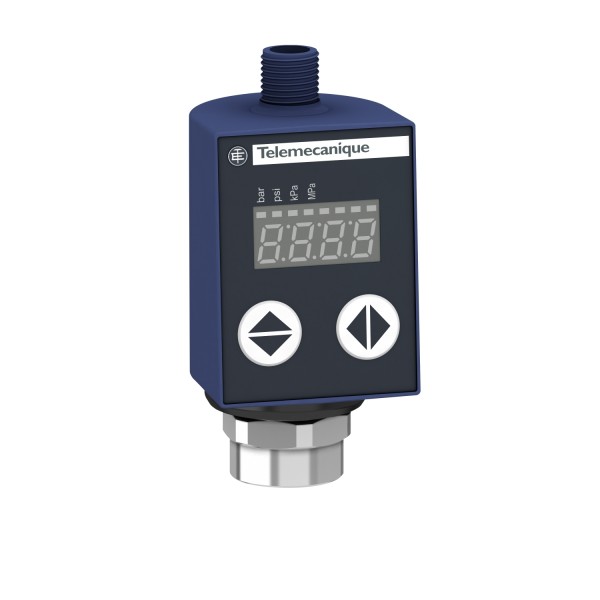

Pressure sensors XMLR 160bar - G 1/4 - 24VDC - 0..10 V - M12

Ülevaaded: 0

Tootekood: XMLR160M0T75

Quick Overview

Saadavus: Ei saa enam tellida

269,43 € (ilma KM-ta)

Details

Main
range of product
OsiSense XM
product or component type
Electronic pressure sensors
pressure sensor type
Pressure transmitter
pressure switch type of operation
Pressure transmitter
device short name
XMLR
pressure sensor size
160 bar
15995.84 kPa
maximum permissible accidental pressure
47987.51 kPa
480 bar
48 MPa
destruction pressure
95975.02 kPa
960 bar
96 MPa
controlled fluid
Fresh water (0…80 °C)
Air (-20…80 °C)
Hydraulic oil (-20…80 °C)
Refrigeration fluid (-20…80 °C)
fluid connection type
G 1/4 (female) conforming to DIN 3852-Y
[Us] rated supply voltage
24 V DC SELV (voltage limits: 17…33 V)
Complementary
current consumption
<= 50 mA
electrical connection
Male connector M12, 4 pins
analogue output function
0...10 V
type of output signal
Analogue
analogue output function
0...10 V
scale type
Fixed differential
materials in contact with fluid
316L stainless steel
front material
Polyester
housing material
Polyacrylamide
316L stainless steel
operating position
Any position, but disposals can falsified the measurement in case of upside down mounting
protection type
Overload protection
Reverse polarity
Short-circuit protection
Overvoltage protection
response time on output
<= 10 ms for analog output
display type
4 digits 7 segments
display response time type
Fast 50 ms
Normal 200 ms
Slow 600 ms
maximum delay first up
300 ms
overall accuracy
<= 1 % of the measuring range
linearity error on analogue output
<= 0.5 % of the measuring range
hysteresis on analogue output
<= 0.2 % of the measuring range
measurement accuracy on switching output
<= 0.6 % of the measuring range
repeat accuracy
<= 0.2 % of the measuring range
drift of the sensitivity
+/- 0.03 % of measuring range/°C
drift of the zero point
+/- 0.1 % of measuring range/°C
display accuracy
<= 1 % of the measuring range
mechanical durability
10000000 cycles
depth
42 mm
height
88 mm
width
41 mm
net weight
0.186 kg
[Uimp] rated impulse withstand voltage
0.5 kV DC
electromagnetic compatibility
Susceptibility to electromagnetic fields: 10 V/m 80...2000 MHz conforming to EN/IEC 61000-4-3
Immunity to conducted RF disturbances: 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6
Surge immunity test: 1 kV conforming to EN/IEC 61000-4-5
Electrical fast transient/burst immunity test: 2 kV conforming to EN/IEC 61000-4-4
Electrostatic discharge immunity test: 8 kV air, 4 kV contact conforming to EN/IEC 61000-4-2
Environment
marking
CE
product certifications
EAC
CULus
standards
UL 61010-1
EN/IEC 61326-2-3
ambient air temperature for operation
-20…80 °C
ambient air temperature for storage
-40…80 °C
IP degree of protection
IP65 conforming to EN/IEC 60529
IP67 conforming to EN/IEC 60529
vibration resistance
20 gn (f= 10…2000 Hz) conforming to EN/IEC 60068-2-6
shock resistance
50 gn conforming to EN/IEC 60068-2-27
Offer Sustainability
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
