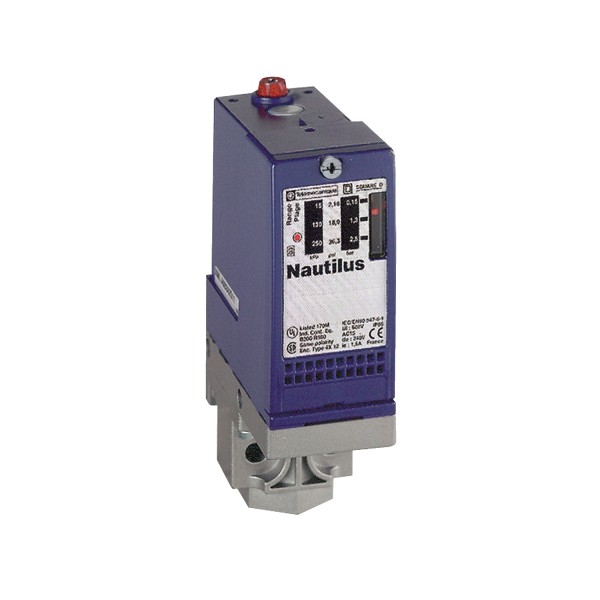

pressure switch XMLA 35 bar - fixed scale 1 threshold - 1 C/O - Rõhureleed ja -andurid - Tööstusautomaatika

Details

Main
range of product	OsiSense XM
product or component type	Electromechanical pressure sensor
pressure sensor type	Electromechanical pressure sensor
device short name	XMLA
pressure sensor size	35 bar
controlled fluid	Corrosive fluid (0…160 °C)
fluid connection type	G 1/4 (female) conforming to ISO 228
electrical connection	Screw-clamps terminals, 1 x 0.5...2 x 2.5 mm² 1 connector Pg 13
AWG gauge	AWG 20...AWG 14
cable entry	Cable gland 9…13 mm
contacts type and composition	1 C/O
product specific application	-
pressure switch type of operation	Detection of 1 single threshold
electrical circuit type	Control circuit
scale type	Fixed differential
local display	With
adjustable range of switching point on rising pressure	1.5…35 bar
adjustable range of switching point on falling pressure	0.25…33.75 bar
maximum permissible accidental pressure	80 bar
destruction pressure	160 bar
pressure actuator	Diaphragm
materials in contact with fluid	PTFE 316L stainless steel
enclosure material	Zinc alloy
[In] rated current	3 A, B300, AC-15 (Ue = 120 V) conforming to EN/IEC 60947-5-1 1.5 A, B300, AC-15 (Ue = 240 V) conforming to EN/IEC 60947-5-1 0.1 A, R300, DC-13 (Ue = 250 V) conforming to EN/IEC 60947-5-1

Complementary
natural differential at low setting	1.25 bar (+/- 0.25 bar)
natural differential at high setting	1.25 bar (+/- 0.25 bar)
maximum permissible pressure - per cycle	45 bar
terminal block type	4 terminals
maximum operating rate	120 cyc/mn
repeat accuracy	2 %
[Ui] rated insulation voltage	300 V conforming to UL 508 500 V conforming to EN/IEC 60947-1 300 V conforming to CSA C22.2 No 14
[Uimp] rated impulse withstand voltage	EN/IEC 60947-1 6 kV
auxiliary contacts operation	Snap action
contacts material	Silver contacts
maximum resistance across terminals	25 mOhm conforming to IEC 255-7 category 3 25 mOhm conforming to NF C 93-050 method A
short-circuit protection	10 A cartridge fuse, type gG (gl)
mechanical durability	5000000 cycles
setting	External
height	113 mm
depth	75 mm
width	35 mm
net weight	0.695 kg

Environment
standards	UL 508 EN/IEC 60947-5-1 CSA C22.2 No 14 CE
product certifications	BV LROS (Lloyds register of shipping) CCC UL EAC CSA
protective treatment	TC standard version
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…70 °C
operating position	Any position
vibration resistance	4 gn conforming to IEC 60068-2-6 (f = 30…500 Hz)
shock resistance	50 gn conforming to IEC 60068-2-27
electrical shock protection class	Class I conforming to IEC 1140 Class I conforming to IEC 536 Class I conforming to NF C 20-030
IP degree of protection	IP66 conforming to EN/IEC 60529

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
Environmental Disclosure	Product Environmental Profile

Contractual warranty
Warranty	18 months
