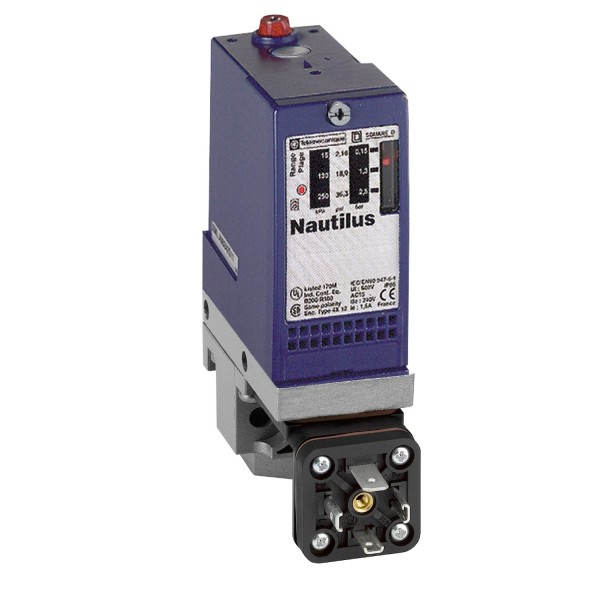

pressure switch XMLA 500 bar - fixed scale 1 threshold - 1 C/O - Rõhureleed ja -andurid - Tööstusautomaatika

Details

Main
range of product	OsiSense XM
product or component type	Electromechanical pressure sensor
pressure sensor type	Electromechanical pressure sensor
device short name	XMLA
pressure sensor size	500 bar
controlled fluid	Hydraulic oil 0…160 °C)
fluid connection type	G 1/4 (female) ISO 228
electrical connection	1 male connector EN 175301-803-A (ex DIN43650), 4 pins
contacts type and composition	1 C/O
product specific application	-
pressure switch type of operation	Detection of 1 single threshold
electrical circuit type	Control circuit
scale type	Fixed differential
local display	With
adjustable range of switching point on rising pressure	30…500 bar
adjustable range of switching point on falling pressure	10…455 bar
maximum permissible accidental pressure	1125 bar
destruction pressure	2250 bar
pressure actuator	Piston
materials in contact with fluid	PTFE Steel Stainless steel FPM, FKM Brass
enclosure material	Zinc alloy
[In] rated current	3 A, B300, AC-15 (Ue = 120 V)EN/IEC 60947-5-1 1,5 A, B300, AC-15 (Ue = 240 V)EN/IEC 60947-5-1 0,1 A, R300, DC-13 (Ue = 250 V)EN/IEC 60947-5-1

Complementary
natural differential at low setting	20 bar +/- 6 bar)
natural differential at high setting	45 bar +/- 10 bar)
maximum permissible pressure - per cycle	625 bar
terminal block type	4 terminals
maximum operating rate	60 cyc/mn
repeat accuracy	2 %
[Ui] rated insulation voltage	300 V UL 508 500 V EN/IEC 60947-1 300 V CSA C22.2 No 14
[Uimp] rated impulse withstand voltage	6 kV EN/IEC 60947-1
auxiliary contacts operation	Snap action
contacts material	Silver contacts
maximum resistance across terminals	25 mOhm IEC 255-7 category 3 25 mOhm NF C 93-050 method A
short-circuit protection	10 A cartridge fuse gG (gl)
mechanical durability	3000000 cycles
setting	External
height	113 mm
depth	75 mm
width	35 mm
net weight	0,78 kg

Environment
standards	UL 508 CE EN/IEC 60947-5-1 CSA C22.2 No 14
product certifications	CSA CCC EAC LROS (Lloyds register of shipping) UL BV
protective treatment	TC standard version
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…70 °C
operating position	Any position
vibration resistance	4 gn 30…500 Hz)IEC 60068-2-6
shock resistance	50 gn IEC 60068-2-27
electrical shock protection class	Class I IEC 1140 Class I IEC 536 Class I NF C 20-030
IP degree of protection	IP65 EN/IEC 60529

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil

Contractual warranty
Garantii	18 months
