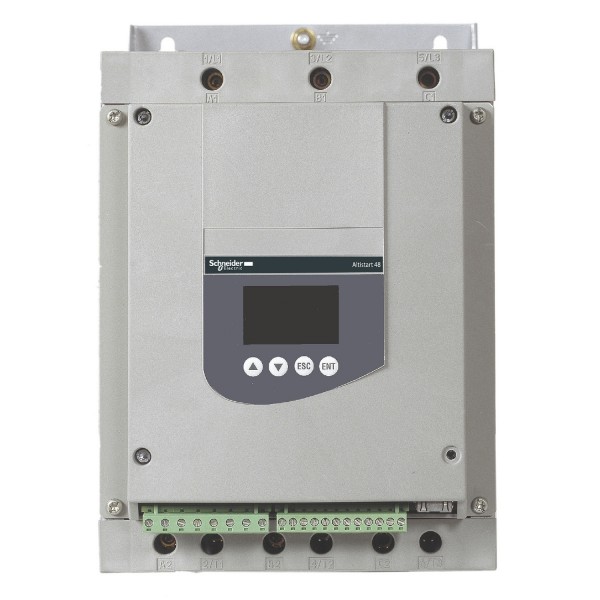

soft starter for asynchronous motor - ATS48 - 14 A - 208..690 V - 4..15 KW

Ülevaaded: 0

Tootekood: ATS48D17Y

Quick Overview

Saadavus: Ei saa enam tellida

660,64 € (ilma KM-ta)

Details

Main
range of product
Altistart 48
product or component type
Soft starter
product destination
Asynchronous motors
product specific application
Heavy duty industry and pumps
device short name
ATS48
power supply voltage
208...690 V - 15...10 %
motor power kW
11 kW 660 V for standard applications
11 kW 690 V for severe applications
15 kW 690 V for standard applications
3 kW 230 V for severe applications
4 kW 230 V for standard applications
9 kW 500 V for standard applications
9 kW 525 V for standard applications
9 kW 660 V for severe applications
7,5 kW 400 V for standard applications
7,5 kW 440 V for standard applications
7,5 kW 500 V for severe applications
7,5 kW 525 V for severe applications
5,5 kW 400 V for severe applications
5,5 kW 440 V for severe applications
motor power hp
10 hp 460 V for standard applications
10 hp 575 V for severe applications
15 hp 575 V for standard applications
2 hp 208 V for severe applications
3 hp 208 V for standard applications
3 hp 230 V for severe applications
5 hp 230 V for standard applications
7,5 hp 460 V for severe applications
power dissipation in W
46 W for standard applications
59 W for standard applications
utilisation category
AC-53A
type of start
Start with torque control (current limited to 5 In)
Icl nominal current
17 A connection in the motor supply line for severe applications
17 A connection in the motor supply line for standard applications
IP degree of protection
IP20
Complementary
assembly style
With heat sink
function available
External bypass (optional)
power supply voltage limits
177…759 V
power supply frequency
50...60 Hz - 5...5 %
power supply frequency limits
47.5...63 Hz
device connection
In the motor supply line
factory setting current
14 A
[Uc] control circuit voltage
110 - 15 % to 230 + 10 %, 50/60 Hz
control circuit consumption
30 W
discrete output number
2
discrete output type
LO1) logic output 0 V common configurable
LO2) logic output 0 V common configurable
R1) relay outputs fault relay NO
R2) relay outputs end of starting relay NO
R3) relay outputs motor powered NO
output absolute accuracy precision
+/- 5 %
minimum switching current
10 mA 6 V DC relay outputs
maximum switching current
Logic output 0,2 A 30 V DC
Relay outputs 1,8 A 230 V AC inductive, cos phi = 0.5 20 ms
Relay outputs 1,8 A 30 V DC inductive, cos phi = 0.5 20 ms
discrete input number
5
discrete input type
PTC, 750 Ohm 25 °C
Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm
discrete input voltage
24 V <= 30 V
discrete input logic
Positive logic Stop, Run, LI3, LI4 < 5 V <= 2 mA > 11 V, >= 5 mA
starting current
0.4...1.3 Icl adjustable
analogue output type
Current output AO 0-20 mA or 4-20 mA 500 Ohm
communication port protocol
Modbus
connector type
1 RJ45
communication data link
Serial
physical interface
RS485 multidrop
transmission rate
4800, 9600 or 19200 bps
max nodes number
31
protection type
Phase failure line
Thermal protection motor
Thermal protection starter
marking
CE
type of cooling
Natural convection
operating position
Vertical +/- 10 degree
height
275 mm
width
160 mm
depth
190 mm
net weight
4,9 kg
Motor power range AC-3
2,2…3 kW 200…240 V 3 phases
4…6 kW 200…240 V 3 phases
7…11 kW 480…500 V 3 phases
motor starter type
Soft starter
Environment
electromagnetic compatibility
Conducted and radiated emissions level A IEC 60947-4-2
Conducted and radiated emissions level B IEC 60947-4-2
Damped oscillating waves level 3 IEC 61000-4-12
Electrostatic discharge level 3 IEC 61000-4-2
Immunity to electrical transients level 4 IEC 61000-4-4
Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3
Voltage/current impulse level 3 IEC 61000-4-5
standards
EN/IEC 60947-4-2
product certifications
TCF
DNV
CSA
UL
CCC
C-Tick
GOST
SEPRO
NOM 117
vibration resistance
1 gn 13…200 Hz)EN/IEC 60068-2-6
1.5 mm 2…13 Hz)EN/IEC 60068-2-6
shock resistance
15 gn 11 ms EN/IEC 60068-2-27
pollution degree
Level 3 IEC 60664-1
relative humidity
0…95 % without condensation or dripping water EN/IEC 60068-2-3
ambient air temperature for operation
40…60 °C with current derating of 2 % per °C)
-10…40 °C without)
ambient air temperature for storage
-25…70 °C
operating altitude
<= 1000 m without
> 1000...2000 m with current derating of 2.2 % per additional 100 m
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
