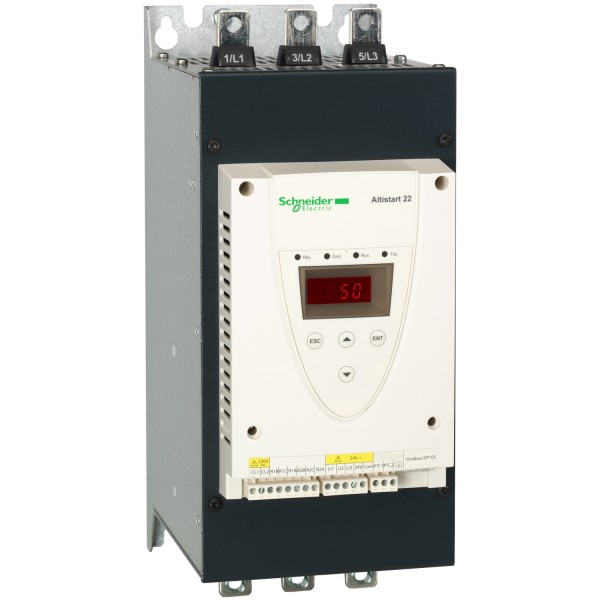

softstarter-ATS22-control110V-power208V(40hp)/230V(40hp)/460V(100hp)/575V(125hp)

Details

Main
range of product	Altistart 22
product or component type	Soft starter
product destination	Asynchronous motors
product specific application	Pumps and fans
component name	ATS22
network number of phases	3 phases
[Us] rated supply voltage	208...600 V - 15...10 %
motor power hp	100 hp 460 V 125 hp 575 V 40 hp 208 V 50 hp 230 V
factory setting current	124 A
power dissipation in W	82 W for standard applications
utilisation category	AC-53A
type of start	Start with torque control (current limited to 3.5 In)
IcL starter rating	140 A connection in the motor supply line for standard applications
IP degree of protection	IP00

Complementary
assembly style	With heat sink
function available	Internal bypass
supply voltage limits	177…660 V
supply frequency	50...60 Hz - 10...10 %
network frequency	45...66 Hz
device connection	In the motor supply line
[Uc] control circuit voltage	110 V - 15...10 % 50/60 Hz
control circuit consumption	20 W
discrete output number	2
discrete output type	Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
minimum switching current	100 mA 12 V DC relay outputs)
maximum switching current	5 A 250 V AC resistive 1 relay outputs 5 A 30 V DC resistive 1 relay outputs 2 A 250 V AC inductive 0,4 20 ms relay outputs 2 A 30 V DC inductive 7 ms relay outputs
discrete input number	3
discrete input type	LI1, LI2, LI3) logic, 5 mA 20 kOhm
discrete input voltage	110 V <= 121 V
discrete input logic	Positive logic LI1, LI2, LI3 < 20 V <= 15 mA > 79 V, <= 2 mA
output current	0.4...1 Icl adjustable
PTC probe input	750 Ohm
communication port protocol	Modbus
connector type	1 RJ45
communication data link	Serial
physical interface	RS485 multidrop
transmission rate	4800, 9600 or 19200 bps
installed device	31
protection type	Phase failure line Thermal protection motor Thermal protection starter
marking	CE
type of cooling	Forced convection
operating position	Vertical +/- 10 degree
height	356 mm
width	150 mm
depth	229,5 mm
net weight	18 kg

Environment
electromagnetic compatibility	Conducted and radiated emissions level A IEC 60947-4-2 Damped oscillating waves level 3 IEC 61000-4-12 Electrostatic discharge level 3 IEC 61000-4-2 Immunity to electrical transients level 4 IEC 61000-4-4 Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3 Voltage/current impulse level 3 IEC 61000-4-5
standards	EN/IEC 60947-4-2
product certifications	C-Tick CCC CSA UL GOST
vibration resistance	1 gn 13…200 Hz)EN/IEC 60068-2-6 1.5 mm 2…13 Hz)EN/IEC 60068-2-6
shock resistance	15 gn 11 ms EN/IEC 60068-2-27
noise level	56 dB
pollution degree	Level 2 IEC 60664-1
relative humidity	0…95 % without condensation or dripping water EN/IEC 60068-2-3
ambient air temperature for operation	-10…40 °C without) 40…60 °C with current derating 2.2 % per °C)
ambient air temperature for storage	-25…70 °C
operating altitude	<= 1000 m without > 1000...< 2000 m with current derating of 2.2 % per additional 100 m

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
