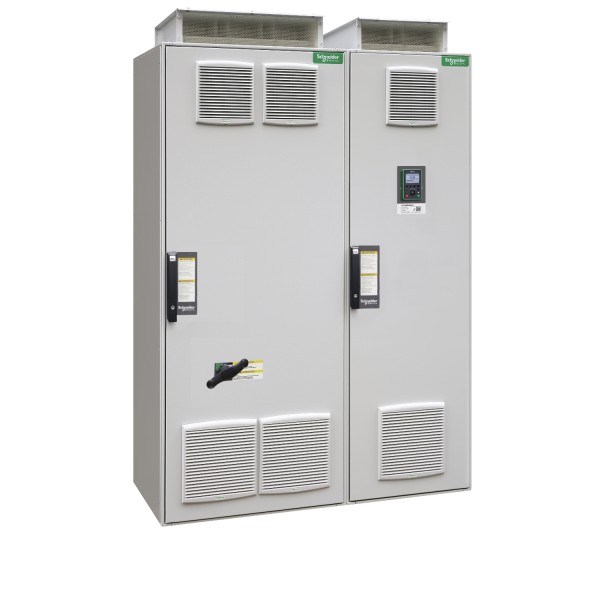

Compact Drive System ATV660 - 800/630kW - 400 V - IP23 - Sagedusmuundurid - Tööstusautomaatika

Details

Main
range of product	Altivar Process ATV600
product or component type	Variable speed drive
product specific application	Process and utilities
device short name	ATV660
product destination	Synchronous motors Asynchronous motors
assembly style	In floor-standing enclosure compact version
provided equipment	Enclosure Spacial SF Graphical operating panel in the enclosure door Frequency inverter Main switch Line choke Terminal block main supply Terminal block motor
cable entry	Bottom
colour of enclosure	Light grey RAL 7035)
IP degree of protection	IP23 IEC 61800-5-1
type of cooling	Forced convection
[Us] rated supply voltage	380...415 V - 10...6 %
supply frequency	50/60 Hz +/-5 %
network number of phases	3 phases
overvoltage category	III
asynchronous motor control profile	Variable torque standard Constant torque standard Optimized torque mode
synchronous motor control profile	Permanent magnet motor
output voltage	<= power supply voltage
permissible temporary current boost	1.1 x In 60 s normal duty) 1.5 x In 60 s heavy duty)
nominal switching frequency	2.5 kHz
switching frequency	2...8 kHz adjustable with derating factor
speed drive output frequency	0,1…500 Hz
motor power kW	800 kW normal duty 630 kW heavy duty
continuous output current	1420 A 2.5 kHz normal duty 1140 A 2.5 kHz heavy duty
maximum transient current	1562 A 60 s per 10 min normal duty) 1710 A 60 s per 10 min heavy duty)
line current	1335 A 400 V normal duty) 1061 A 400 V heavy duty)
apparent power	925 kVA 400 V normal duty) 735 kVA 400 V heavy duty)
maximum THDI	<36 % full load IEC 61000-3-12
short-circuit protection	Internal 400,0 A 5 aR fuse Upstream 1600,0 A gG fuse normal duty) Upstream 1250,0 A gG fuse heavy duty)
energy efficiency ratio	0,98
power dissipation in W	20600 W, total normal duty) 15080 W, total heavy duty) 2300 W, control part normal duty) 1580 W, control part heavy duty)
volume of cooling air	2900 m3/h power 420 m3/h control
noise level	74 dB 86/188/EEC - physical agents (noise) directive
prospective line Isc	50 kA 100 ms
electrical connection	Removable screw terminals 0.5...1.5 mm² control M12 bar main supply M12 bar motor
motor recommanded cable cross section	5 x 3 x 240 mm²)normal duty) 6 x 3 x 185 mm²)normal duty) 4 x 3 x 240 mm²)heavy duty) 5 x 3 x 185 mm²)heavy duty) 6 x 3 x 120 mm²)heavy duty)
width	1400 mm
height	2150 mm
depth	664 mm
net weight	1100 kg
number of preset speeds	16 preset speeds
communication port protocol	Modbus TCP Modbus serial Ethernet/IP
option card	Slot A communication module, Profibus DP V1 Slot A communication module, Profinet Slot A communication module, DeviceNet Slot A communication module, Modbus TCP/EtherNet/IP Slot A communication module, CANopen daisy chain RJ45 Slot A communication module, CANopen SUB-D 9 Slot A communication module, CANopen screw terminals Slot A/slot B digital and analog I/O extension module Slot A/slot B output relay extension module
safety function	STO (safe torque off) SIL 3 <= 100 ms
EMC filter	Integrated EN/IEC 61800-3, category C3, shielded cable 150 m Integrated EN/IEC 61800-3, category C4, unshielded cable 250 m

Complementary
motor slip compensation	Automatic whatever the load Not available in permanent magnet motor law Can be suppressed Adjustable
acceleration and deceleration ramps	S, U or customized Linear adjustable separately from 0.01 to 9000 s
braking to standstill	By DC injection
protection type	Motor thermal protection Motor safe torque off Motor motor phase break Drive thermal protection Drive safe torque off Drive overheating Drive overcurrent between output phases and earth) Drive overload output) Drive short-circuit protection Drive motor phase break Drive overvoltage DC bus) Drive line supply overvoltage Drive line supply undervoltage Drive line supply phase loss Drive overspeed Drive break on the control circuit Drive short-circuit protection semi-conductor fuse main supply) Drive fan monitoring
frequency resolution	Display unit 0.1 Hz Analog input 0.012/50 Hz
connector type	RJ45 on the control block)Modbus serial RJ45 on the control block)Ethernet IP/Modbus TCP
physical interface	2-wire RS 485 Modbus serial
transmission frame	RTU Modbus serial
transmission rate	10/100 Mbit/s Ethernet IP/Modbus TCP 4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial
exchange mode	Half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
data format	8 bits, configurable odd, even or no parity Modbus serial
type of polarization	No impedance Modbus serial
number of addresses	1…247 Modbus serial
method of access	Slave Modbus TCP
supply	External supply for digital inputs 24 V DC 10…30 V), <1,25 mA overload and short-circuit protection Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection Internal supply for digital inputs and STO 24 V DC 21…27 V), <200 mA overload and short-circuit protection
analogue input number	3
analogue input type	AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits
discrete input number	8
discrete input type	DI1...DI6 programmable, 24 V DC <= 30 V)3.5 kOhm DI5, DI6 programmable as pulse input 0…30 kHz, 24 V DC <= 30 V) STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm
input compatibility	DI1...DI6 discrete input level 1 PLC EN/IEC 61131-2 DI5, DI6 discrete input level 1 PLC IEC 65A-68 STOA, STOB discrete input level 1 PLC EN/IEC 61131-2
discrete input logic	Positive logic (source) DI1...DI6), < 5 V, > 11 V Negative logic (sink) DI1...DI6), > 16 V, < 10 V Positive logic (source) DI5, DI6), < 0.6 V, > 2.5 V Positive logic (source) STOA, STOB), < 5 V, > 11 V
analogue output number	2
analogue output type	Software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits Software-configurable current AQ1, AQ2 0...20 mA 10 bits
sampling duration	2 ms +/- 0.5 ms DI1...DI4) - discrete input 5 ms +/- 1 ms DI5, DI6) - discrete input 5 ms +/- 1 ms AI1, AI2, AI3) - analog input 10 ms +/- 1 ms AQ1, AQ2) - analog output
accuracy	+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input +/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output
linearity error	AI1, AI2, AI3 +/- 0.15 % of maximum value analog input AQ1, AQ2 +/- 0.2 % analog output
relay output number	3
relay output type	Configurable relay logic R1 fault relay NO/NC 100000 cycles Configurable relay logic R2 sequence relay NO 100000 cycles Configurable relay logic R3 sequence relay NO 100000 cycles
refresh time	Relay output R1, R2, R3)5 ms +/- 0.5 ms)
minimum switching current	Relay output R1, R2, R3 5 mA 24 V DC
maximum switching current	Relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC Relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC Relay output R1, R2, R3 inductive, cos phi = 0,4 7 ms 2 A 250 V AC Relay output R1, R2, R3 inductive, cos phi = 0,4 7 ms 2 A 30 V DC
isolation	Between power and control terminals

Environment
insulation resistance	> 1 MOhm 500 V DC for 1 minute to earth
operating position	Vertical +/- 10 degree
electromagnetic compatibility	Electrostatic discharge immunity test level 3 IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 Conducted radio-frequency immunity test level 3 IEC 61000-4-6
pollution degree	2 EN/IEC 61800-5-1
vibration resistance	1.5 mm peak to peak 3…10 Hz)IEC 60068-2-6 0.6 gn 10…200 Hz)IEC 60068-2-6 3M3IEC 60721-3-3
shock resistance	4 gn 11 ms IEC 60068-2-27 3M2 IEC 60721-3-3
relative humidity	5…95 % without condensation IEC 60068-2-3
ambient air temperature for operation	-10…0 °C without with option enclosure heating) 0…40 °C without 40…50 °C with derating factor
ambient air temperature for storage	-25…70 °C
operating altitude	< 1000 m without 1000...2000 m with current derating 1 % per 100 m 2000...3800 m with current derating 1 % per 100 m TT 2000...3800 m with current derating 1 % per 100 m TN 2000...3800 m with current derating 1 % per 100 m IT 3800...4800 m with current derating 1 % per 100 m TT 3800...4800 m with current derating 1 % per 100 m TN
environmental characteristic	Chemical pollution resistance class 3C3 EN/IEC 60721-3-3 Dust pollution resistance class 3S3 EN/IEC 60721-3-3 Humidity resistant class 3K3 EN/IEC 60721-3-3
standards	EN/IEC 60204-1 EN/IEC 61800-2 EN/IEC 61800-3 EN/IEC 61800-5-1
product certifications	ATEX EAC C-Tick
marking	CE

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
