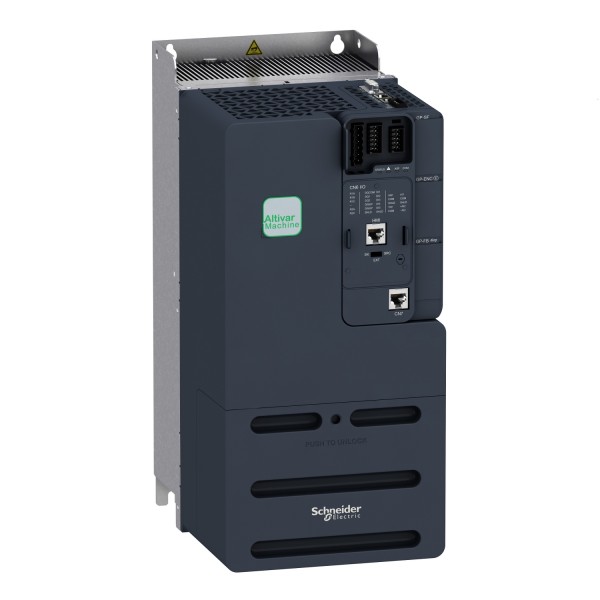

variable speed drive - 15kW- 400V - 3 phases - ATV340 - Sagedusmuundurid - Tööstusautomaatika

Details

Main
range of product	Altivar Machine ATV340
product or component type	Variable speed drive
device application	Machine
device short name	ATV340
variant	Standard version
product destination	Asynchronous motors Synchronous motors
mounting mode	Cabinet mount
EMC filter	Integrated 20 m EN/IEC 61800-3 category C3
IP degree of protection	IP20IEC 61800-5-1 IP20IEC 60529
type of cooling	Forced convection
supply frequency	50...60 Hz +/- 5 %
network number of phases	3 phases
[Us] rated supply voltage	380...480 V - 15...10 %
motor power kW	18,5 kW normal duty 15 kW heavy duty
motor power hp	25 hp normal duty 20 hp heavy duty
line current	44,9 A 380 V without line choke heavy duty) 35,7 A 480 V without line choke heavy duty) 42,4 A 380 V with external line choke normal duty) 34,1 A 480 V with external line choke normal duty) 45,5 A 380 V with external line choke heavy duty) 36,0 A 480 V with external line choke heavy duty)
prospective line Isc	22 kA
apparent power	28,3 kVA 480 V normal duty) 29,7 kVA 480 V heavy duty)
continuous output current	39 A 4 kHz normal duty 32 A 4 kHz heavy duty
maximum transient current	42,9 A 60 s normal duty) 48 A 60 s heavy duty) 52,7 A 2 s normal duty) 58 A 2 s heavy duty)
asynchronous motor control profile	Variable torque standard Optimized torque mode Constant torque standard
synchronous motor control profile	Reluctance motor Permanent magnet motor
speed drive output frequency	0,1…599 Hz
nominal switching frequency	4 kHz
switching frequency	2...16 kHz adjustable 7...16 kHz with derating factor
safety function	STO (safe torque off) SIL 3

Complementary
number of preset speeds	16 preset speeds
communication port protocol	Modbus serial
option card	Slot GP-FB communication module Profibus DP V1 Slot GP-FB communication module Profinet Slot GP-FB communication module DeviceNet Slot GP-FB communication module CANopen daisy chain RJ45 Slot GP-FB communication module CANopen SUB-D 9 Slot GP-FB communication module CANopen screw terminals Slot GP-FB communication module EtherCAT Slot GP-X digital and analog I/O extension module Slot GP-X output relay extension module Slot GP-ENC 5/12 V digital encoder interface module Slot GP-ENC analog encoder interface module Slot GP-ENC resolver encoder interface module
output voltage	<= power supply voltage
permissible temporary current boost	1.1 x In 60 s normal duty) 1.35 x In 2 s normal duty) 1.5 x In 60 s heavy duty) 1.8 x In 2 s heavy duty)
motor slip compensation	Automatic whatever the load Adjustable Not available in permanent magnet motor law Can be suppressed
acceleration and deceleration ramps	Linear adjustable separately from 0.01...9999 s S, U or customized
braking to standstill	By DC injection
protection type	Thermal protection motor Safe torque off motor Motor phase loss motor Thermal protection drive Safe torque off drive Overheating drive Overcurrent drive Output overcurrent between motor phase and earth drive Output overcurrent between motor phases drive Short-circuit between motor phase and earth drive Short-circuit between motor phases drive Motor phase loss drive DC Bus overvoltage drive Line supply overvoltage drive Line supply undervoltage drive Input supply loss drive Exceeding limit speed drive Break on the control circuit drive
frequency resolution	Display unit 0.1 Hz Analog input 0.012/50 Hz
electrical connection	Control screw terminal 0.2...2.5 mm² AWG 24...AWG 12 Line side screw terminal 6...25 mm² AWG 8...AWG 3 DC bus screw terminal 6...25 mm² AWG 8...AWG 3 Motor screw terminal 4...25 mm² AWG 10...AWG 3
connector type	1 x RJ45, Modbus serial on front face 1 x RJ45, Modbus serial HMI on front face
physical interface	2-wire RS 485 Modbus serial
transmission frame	RTU Modbus serial
transmission rate	4800 bps, 9600 bps, 19200 bps, 38.4 Kbps Modbus serial
data format	8 bits, configurable odd, even or no parity Modbus serial
type of polarization	No impedance Modbus serial
number of addresses	1…247 Modbus serial
method of access	Slave Modbus RTU
supply	External supply for digital inputs 24 V DC 19…30 V), <1,25 mA overload and short-circuit protection Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection Internal supply for digital inputs and STO 24 V DC 21…27 V), <200 mA overload and short-circuit protection
local signalling	Local diagnostic 4 LED mono/dual colour) Communication module status 4 LED dual colour)
width	180 mm
height	385 mm
depth	249 mm
net weight	9,5 kg
analogue input number	2
analogue input type	AI1 software-configurable current 0...20 mA 250 Ohm 12 bits AI1 software-configurable temperature probe or water level sensor AI1 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits AI2 software-configurable voltage - 10...10 V DC 20 kOhm 12 bits
discrete input number	8
discrete input type	PTI programmable as pulse input 0…30 kHz, 24 V DC <= 30 V) STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm DI1...DI5 programmable, 24 V DC <= 30 V)4.4 kOhm
input compatibility	DI1...DI5 discrete input level 1 PLC EN/IEC 61131-2 PTI pulse input level 1 PLC IEC 65A-68 STOA, STOB discrete input level 1 PLC EN/IEC 61131-2
discrete input logic	Positive logic (source) DI1...DI5), < 5 V, > 11 V Negative logic (sink) DI1...DI5), > 16 V, < 10 V Positive logic (source) PTI), < 0.6 V, > 2.5 V Positive logic (source) STOA, STOB), < 5 V, > 11 V
analogue output number	1
analogue output type	Software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits Software-configurable current AQ1 0...20 mA 500 Ohm 10 bits
input/output type	Programmable as logic input/output DQ1 0…1 kHz, <= 30 V DC, 100 mA Programmable as logic input/output DQ2 0…1 kHz, <= 30 V DC, 100 mA
sampling duration	2 ms +/- 0.5 ms DI1...DI5) - discrete input 5 ms +/- 1 ms PTI) - pulse input 1 ms +/- 1 ms AI1, AI2) - analog input 5 ms +/- 1 ms AQ1) - analog output 2 ms +/- 0.5 ms DQ1, DQ2) - discrete input/output
accuracy	+/- 0.6 % AI1, AI2 for a temperature variation 60 °C analog input +/- 1 % AQ1 for a temperature variation 60 °C analog output
linearity error	AI1, AI2 +/- 0.15 % of maximum value analog input AQ1 +/- 0.2 % analog output
relay output number	2
relay output type	Configurable relay logic R1 fault relay NO/NC 100000 cycles Configurable relay logic R2 sequence relay NO 100000 cycles
refresh time	Relay output R1, R2)5 ms +/- 0.5 ms)
minimum switching current	Relay output R1, R2 5 mA 24 V DC
maximum switching current	Relay output R1 resistive, cos phi = 1 3 A 250 V AC Relay output R1 resistive, cos phi = 1 3 A 30 V DC Relay output R1 inductive, cos phi = 0,4 7 ms 2 A 250 V AC Relay output R1 inductive, cos phi = 0,4 7 ms 2 A 30 V DC Relay output R2 resistive, cos phi = 1 5 A 250 V AC Relay output R2 resistive, cos phi = 1 5 A 30 V DC Relay output R2 inductive, cos phi = 0,4 7 ms 2 A 250 V AC Relay output R2 inductive, cos phi = 0,4 7 ms 2 A 30 V DC

Environment
isolation	Between power and control terminals
insulation resistance	> 1 MOhm 500 V DC for 1 minute to earth
noise level	55,6 dB 86/188/EEC
power dissipation in W	Natural convection 18 W 380 V 4 kHz heavy duty) Forced convection 346 W 380 V 4 kHz heavy duty) Natural convection 21 W 380 V 4 kHz normal duty) Forced convection 411 W 380 V 4 kHz normal duty)
volume of cooling air	128 m3/h
operating position	Vertical +/- 10 degree
electromagnetic compatibility	Electrostatic discharge immunity test level 3 IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 Conducted radio-frequency immunity test level 3 IEC 61000-4-6
pollution degree	2 EN/IEC 61800-5-1
vibration resistance	1.5 mm peak to peak 2…19 Hz)EN/IEC 60721-3-3 class 3M3 1 gn 9…200 Hz)EN/IEC 60721-3-3 class 3M3
shock resistance	15 gn 11 ms, class 3M3 EN/IEC 60721-3-3
relative humidity	5…95 % without condensation EN/IEC 60721-3-3 class 3K3
ambient air temperature for operation	-15…50 °C without current derating heavy duty) -15…40 °C without current derating normal duty) 50…60 °C with current derating heavy duty) 40…60 °C with current derating normal duty)
ambient air temperature for storage	-40…70 °C
operating altitude	<= 1000 m without 1000...3000 m with current derating 1 % per 100 m
environmental characteristic	Chemical pollution resistance class 3C3 EN/IEC 60721-3-3 Dust pollution resistance class 3S3 EN/IEC 60721-3-3
standards	EN/IEC 61800-3 Environment 1 category C2 EN/IEC 61800-3 Environment 2 category C3 EN/IEC 61800-3 EN/IEC 61800-5-1 IEC 60721-3 IEC 61508 IEC 13849-1 UL 618000-5-1
product certifications	TÜV UL REACH CSA
marking	CE

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
