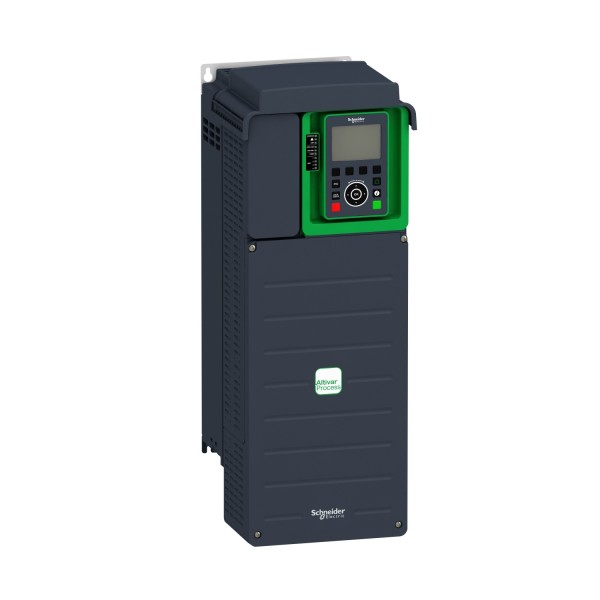

output voltage | <= power supply voltage | |
---|
permissible temporary current boost | 1.1 x In 60 s normal duty)1.5 x In 60 s heavy duty) | |
---|
motor slip compensation | Can be suppressedAdjustableAutomatic whatever the loadNot available in permanent magnet motor law | |
---|
acceleration and deceleration ramps | Linear adjustable separately from 0.01...9999 s | |
---|
braking to standstill | By DC injection | |
---|
protection type | Thermal protection motorSafe torque off motorMotor phase break motorThermal protection driveSafe torque off driveOverheating driveOvercurrent between output phases and earth driveOverload of output voltage driveShort-circuit protection driveMotor phase break driveOvervoltages on the DC bus driveLine supply overvoltage driveLine supply undervoltage driveLine supply phase loss driveOverspeed driveBreak on the control circuit drive | |
---|
frequency resolution | Display unit 0.1 HzAnalog input 0.012/50 Hz | |
---|
electrical connection | Control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16Line side screw terminal 10...16 mm² AWG 8...AWG 6Motor screw terminal 10...16 mm² AWG 8...AWG 6 | |
---|
connector type | RJ45 on the remote graphic terminal)Ethernet/Modbus TCPRJ45 on the remote graphic terminal)Modbus serial | |
---|
physical interface | 2-wire RS 485 Modbus serial | |
---|
transmission frame | RTU Modbus serial | |
---|
transmission rate | 10/100 Mbit/s Ethernet IP/Modbus TCP4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial | |
---|
exchange mode | Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP | |
---|
data format | 8 bits, configurable odd, even or no parity Modbus serial | |
---|
type of polarization | No impedance Modbus serial | |
---|
number of addresses | 1…247 Modbus serial | |
---|
method of access | Slave Modbus TCP | |
---|
supply | External supply for digital inputs 24 V DC 19…30 V), <1,25 mA overload and short-circuit protectionInternal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protectionInternal supply for digital inputs and STO 24 V DC 21…27 V), <200 mA overload and short-circuit protection | |
---|
local signalling | Local diagnostic 3 LEDsEmbedded communication status 3 LEDs dual colour)Communication module status 4 LEDs dual colour)Presence of voltage 1 LED red) | |
---|
width | 211 mm | |
---|
height | 546 mm | |
---|
depth | 232 mm | |
---|
net weight | 13,6 kg | |
---|
analogue input number | 3 | |
---|
analogue input type | AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bitsAI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits | |
---|
discrete input number | 8 | |
---|
discrete input type | DI1...DI6 programmable, 24 V DC <= 30 V)3.5 kOhmDI5, DI6 programmable as pulse input 0…30 kHz, 24 V DC <= 30 V)STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm | |
---|
input compatibility | DI1...DI6 discrete input level 1 PLC EN/IEC 61131-2DI5, DI6 discrete input level 1 PLC IEC 65A-68STOA, STOB discrete input level 1 PLC EN/IEC 61131-2 | |
---|
discrete input logic | Positive logic (source) DI1...DI6), < 5 V, > 11 VNegative logic (sink) DI1...DI6), > 16 V, < 10 VPositive logic (source) DI5, DI6), < 0.6 V, > 2.5 VPositive logic (source) STOA, STOB), < 5 V, > 11 V | |
---|
analogue output number | 2 | |
---|
analogue output type | Software-configurable voltage AO1, AO2 0...10 V DC 470 Ohm 10 bitsSoftware-configurable current AO1, AO2 0...20 mA 10 bits | |
---|
sampling duration | 2 ms +/- 0.5 ms DI1...DI4) - discrete input5 ms +/- 1 ms DI5, DI6) - discrete input5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input10 ms +/- 1 ms AO1) - analog output | |
---|
accuracy | +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input+/- 1 % AO1, AO2 for a temperature variation 60 °C analog output | |
---|
linearity error | AI1, AI2, AI3 +/- 0.15 % of maximum value analog inputAO1, AO2 +/- 0.2 % analog output | |
---|
relay output number | 3 | |
---|
relay output type | Configurable relay logic R1 fault relay NO/NC 100000 cyclesConfigurable relay logic R2 sequence relay NO 100000 cyclesConfigurable relay logic R3 sequence relay NO 100000 cycles | |
---|
refresh time | Relay output R1, R2, R3)5 ms +/- 0.5 ms) | |
---|
minimum switching current | Relay output R1, R2, R3 5 mA 24 V DC | |
---|
maximum switching current | Relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V ACRelay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DCRelay output R1, R2, R3 inductive, cos phi = 0,4 7 ms 2 A 250 V ACRelay output R1, R2, R3 inductive, cos phi = 0,4 7 ms 2 A 30 V DC | |
---|
isolation | Between power and control terminals | |
---|
Variable speed drive application selection | Building - HVAC Compressor centrifugalFood and beverage processing Other applicationMining mineral and metal FanMining mineral and metal PumpOil and gas FanWater and waste water Other applicationBuilding - HVAC Screw compressorFood and beverage processing PumpFood and beverage processing FanFood and beverage processing AtomizationOil and gas Electro submersible pump (ESP)Oil and gas Water injection pumpOil and gas Jet fuel pumpOil and gas Compressor for refineryWater and waste water Centrifuge pumpWater and waste water Positive displacement pumpWater and waste water Electro submersible pump (ESP)Water and waste water Screw pumpWater and waste water Lobe compressorWater and waste water Screw compressorWater and waste water Compressor centrifugalWater and waste water FanWater and waste water ConveyorWater and waste water Mixer | |
---|
Motor power range AC-3 | 15…25 kW 380…440 V 3 phases15…25 kW 480…500 V 3 phases | |
---|
mounting mode | Wall mount | |
---|
