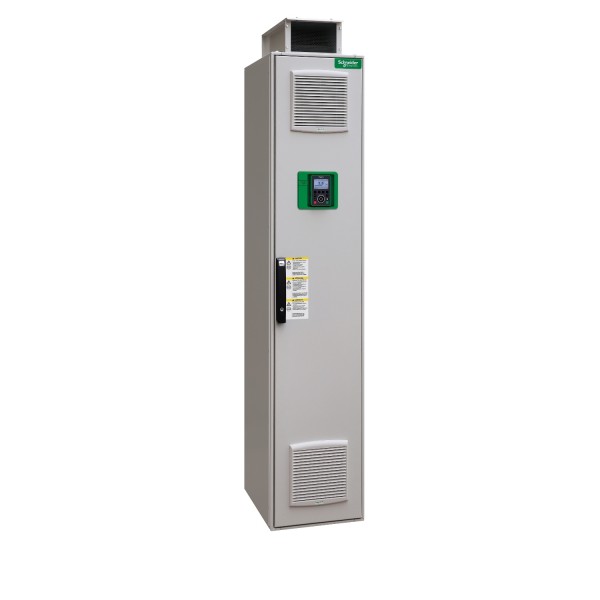

variable speed drive ATV630 - 160kW - 380...440V - IP21

Altivar Process ATV600

Variable speed drive

Process and utilities

ATV630

Standard version

Synchronous motors
Asynchronous motors

Integrated conforming to EN/IEC 61800-3 category C3

IP21 conforming to IEC 61800-5-1
IP21 conforming to IEC 60529

Forced convection

50...60 Hz - 5...5 %

3 phases

380...440 V - 15...10 %

160 kW (normal duty)
132 kW (heavy duty)

277 A at 400 V (normal duty)
232 A at 400 V (heavy duty)
291 A at 380 V (normal duty)
244 A at 380 V (heavy duty)

50 kA

192 kVA at 440 V (normal duty)
161 kVA at 440 V (heavy duty)

302 A at 2.5 kHz for normal duty
250 A at 2.5 kHz for heavy duty

332.2 A during 60 s (normal duty)
375 A during 60 s (heavy duty)

Constant torque standard
Variable torque standard
Optimized torque mode

Permanent magnet motor
Synchronous reluctance motor

0.0001…0.5 kHz

0.1…599 Hz

2.5 kHz

2.5...8 kHz with derating factor
2...8 kHz adjustable

STO (safe torque off) SIL 3

16 preset speeds

Ethernet
Modbus TCP
Modbus serial

Slot A: communication module, Profibus DP V1
Slot A: communication module, Profinet
Slot A: communication module, DeviceNet
Slot A: communication module, Modbus TCP/EtherNet/IP
Slot A: communication module, CANopen daisy chain RJ45
Slot A: communication module, CANopen SUB-D 9
Slot A: communication module, CANopen screw terminals
Slot A/slot B: digital and analog I/O extension module
Slot A/slot B: output relay extension module
Slot A: communication module, Ethernet IP/Modbus TCP/MD-Link
Communication module, BACnet MS/TP
Communication module, Ethernet Powerlink

<= power supply voltage

1.1 x In during 60 s (normal duty)
1.5 x In during 60 s (heavy duty)

Adjustable
Can be suppressed
Not available in permanent magnet motor law
Automatic whatever the load

Linear adjustable separately from 0.01...9999 s

By DC injection

Thermal protection: motor
Safe torque off: motor
Motor phase break: motor
Thermal protection: drive
Safe torque off: drive
Overheating: drive
Overcurrent between output phases and earth: drive
Overload of output voltage: drive
Short-circuit protection: drive
Motor phase break: drive
Overvoltages on the DC bus: drive
Line supply overvoltage: drive
Line supply undervoltage: drive
Line supply phase loss: drive
Overspeed: drive
Break on the control circuit: drive

Display unit: 0.1 Hz
Analog input: 0.012/50 Hz

Control: removable screw terminals0.5...1.5 mm²
Line side: M12 bar - 1 cables 3 x 185 mm² maximum per phase (normal duty)
Line side: M12 bar - 2 cables 3 x 120 mm² maximum per phase (normal duty)
Motor: M12 bar - 2 cables 3 x 185 mm² maximum per phase (normal duty)
Line side: M12 bar - 2 cables 3 x 70 mm² minimum per phase (heavy duty)
Line side: M12 bar - 1 cables 3 x 185 mm² maximum per phase (heavy duty)
Line side: M12 bar - 2 cables 3 x 120 mm² maximum per phase (heavy duty)
Motor: M12 bar - 2 cables 3 x 185 mm² maximum per phase (heavy duty)
Line side: M12 bar - 1 cables 3 x 185 mm² minimum per phase (normal duty)
Line side: M12 bar - 1 cables 3 x 185 mm² minimum per phase (heavy duty)
Line side: M12 bar - 2 cables 3 x 95 mm² minimum per phase (normal duty)
Motor: M12 bar - 1 cables 3 x 185 mm² minimum per phase (normal duty)
Motor: M12 bar - 2 cables 3 x 95 mm² minimum per phase (normal duty)
Motor: M12 bar - 1 cables 3 x 150 mm² minimum per phase (heavy duty)
Motor: M12 bar - 2 cables 3 x 70 mm² minimum per phase (heavy duty)

RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP
RJ45 (on the remote graphic terminal) for Modbus serial

2-wire RS 485 for Modbus serial

RTU for Modbus serial

10/100 Mbit/s for Ethernet IP/Modbus TCP
4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial

Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP

8 bits, configurable odd, even or no parity for Modbus serial

No impedance for Modbus serial

1…247 for Modbus serial

Slave Modbus TCP

External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection
Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection
Internal supply for digital inputs and STO: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection

3 LEDslocal diagnostic:
3 LEDs (dual colour)embedded communication status:
4 LEDs (dual colour)communication module status:
1 LED (red)presence of voltage:

400 mm

2150 mm

605 mm

300 kg

3

AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 30 kOhm, resolution 12 bits
AI1, AI2, AI3 software-configurable current: 0...20 mA/4...20 mA, impedance: 250 Ohm, resolution 12 bits

8

DI1...DI6 programmable, 24 V DC (<= 30 V), impedance: 3.5 kOhm
DI5, DI6 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V)
STOA, STOB safe torque off, 24 V DC (<= 30 V), impedance: > 2.2 kOhm

DI1...DI6: discrete input level 1 PLC conforming to EN/IEC 61131-2
DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68
STOA, STOB: discrete input level 1 PLC conforming to EN/IEC 61131-2

Positive logic (source) (DI1...DI6), < 5 V (state 0), > 11 V (state 1)
Negative logic (sink) (DI1...DI6), > 16 V (state 0), < 10 V (state 1)
Positive logic (source) (DI5, DI6), < 0.6 V (state 0), > 2.5 V (state 1)
Positive logic (source) (STOA, STOB), < 5 V (state 0), > 11 V (state 1)

2

Software-configurable voltage AO1, AO2: 0...10 V DC impedance 470 Ohm, resolution 10 bits
Software-configurable current AO1, AO2: 0...20 mA, resolution 10 bits

2 ms +/- 0.5 ms (DI1...DI4) - discrete input
5 ms +/- 1 ms (DI5, DI6) - discrete input
5 ms +/- 0.1 ms (AI1, AI2, AI3) - analog input
10 ms +/- 1 ms (AO1) - analog output

+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input
+/- 1 % AO1, AO2 for a temperature variation 60 °C analog output

AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input
AO1, AO2: +/- 0.2 % for analog output

3

Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles
Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles
Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles

Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)

Relay output R1, R2, R3: 5 mA at 24 V DC

Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC
Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC
Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC
Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC

Between power and control terminals

Building - HVAC Compressor centrifugal
Food and beverage processing Other application
Mining mineral and metal Fan
Mining mineral and metal Pump
Oil and gas Fan
Water and waste water Other application
Building - HVAC Screw compressor
Food and beverage processing Pump
Food and beverage processing Fan
Food and beverage processing Atomization
Oil and gas Electro submersible pump (ESP)
Oil and gas Water injection pump
Oil and gas Jet fuel pump
Oil and gas Compressor for refinery
Water and waste water Centrifuge pump
Water and waste water Positive displacement pump
Water and waste water Electro submersible pump (ESP)
Water and waste water Screw pump
Water and waste water Lobe compressor
Water and waste water Screw compressor
Water and waste water Compressor centrifugal
Water and waste water Fan
Water and waste water Conveyor
Water and waste water Mixer

110…220 kW at 380…440 V 3 phases

Floor-standing

> 1 MOhm 500 V DC for 1 minute to earth

69 dB conforming to 86/188/EEC

3120 W, switching frequency 2.5 kHz (normal duty)
4030 W, switching frequency 2.5 kHz (heavy duty)

720 m3/h

Vertical +/- 10 degree

<48 % full load conforming to IEC 61000-3-12

Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6

2 conforming to EN/IEC 61800-5-1

1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6
1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6

15 gn for 11 ms conforming to IEC 60068-2-27

5…95 % without condensation conforming to IEC 60068-2-3

-15…40 °C (without)
40…50 °C (with derating factor)

-40…70 °C

<= 1000 m without
1000...4800 m with current derating 1 % per 100 m

Chemical pollution resistance class 3C3 conforming to EN/IEC 60721-3-3
Dust pollution resistance class 3S3 conforming to EN/IEC 60721-3-3

UL 508C
EN/IEC 61800-3
Environment 2 category C3 EN/IEC 61800-3
EN/IEC 61800-5-1
IEC 61000-3-12
IEC 60721-3
IEC 61508
IEC 13849-1

ATEX INERIS
ATEX zone 2/22
CSA
TÜV
REACH

CE

Green Premium product

Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration

Yes

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
