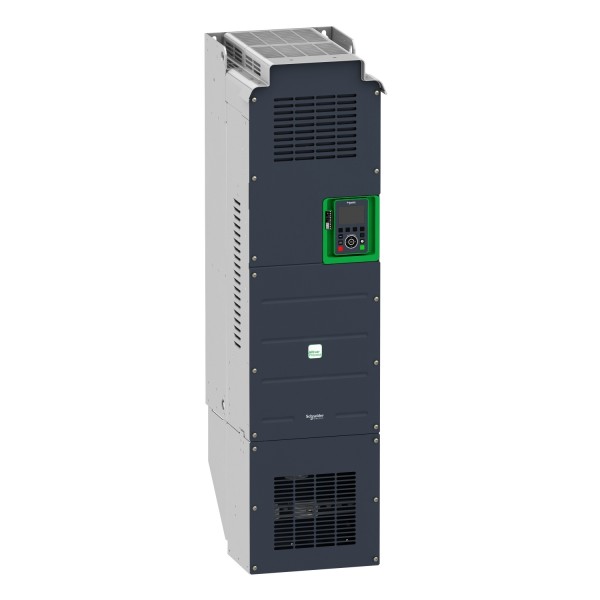

variable speed drive ATV630 - 55kW/75HP - 200...240V - IP00 - Sagedusmuundurid - Tööstusautomaatika

Details

Main
range of product	Altivar Process ATV600
product or component type	Variable speed drive
product specific application	Process and utilities
device short name	ATV630
variant	Standard version
product destination	Synchronous motors Asynchronous motors
EMC filter	Without EMC filter
IP degree of protection	IP00IEC 61800-5-1 IP00IEC 60529 IP21 with kit VW3A9704)IEC 61800-5-1 IP21 with kit VW3A9704)IEC 60529
type of cooling	Forced convection
supply frequency	50...60 Hz - 5...5 %
network number of phases	3 phases
[Us] rated supply voltage	200...240 V - 15...10 %
motor power kW	55 kW normal duty) 45 kW heavy duty)
motor power hp	75 hp normal duty 60 hp heavy duty
line current	189 A 200 V normal duty) 161 A 240 V normal duty) 156 A 200 V heavy duty) 134 A 240 V heavy duty)
prospective line Isc	50 kA
apparent power	61,1 kVA 240 V normal duty) 50 kVA 240 V heavy duty)
continuous output current	211 A 2.5 kHz normal duty 176 A 2.5 kHz heavy duty
maximum transient current	232,1 A 60 s normal duty) 264 A 60 s heavy duty)
asynchronous motor control profile	Variable torque standard Optimized torque mode Constant torque standard
synchronous motor control profile	Permanent magnet motor Synchronous reluctance motor
output frequency	0,0001…0,5 kHz
speed drive output frequency	0,1…599 Hz
nominal switching frequency	2.5 kHz
switching frequency	2.5...8 kHz with derating factor 2...8 kHz adjustable
safety function	STO (safe torque off) SIL 3
discrete input logic	16 preset speeds
communication port protocol	Modbus TCP Ethernet Modbus serial
option card	Slot A communication module, Profibus DP V1 Slot A communication module, Profinet Slot A communication module, DeviceNet Slot A communication module, Modbus TCP/EtherNet/IP Slot A communication module, CANopen daisy chain RJ45 Slot A communication module, CANopen SUB-D 9 Slot A communication module, CANopen screw terminals Slot A/slot B digital and analog I/O extension module Slot A/slot B output relay extension module Slot A communication module, Ethernet IP/Modbus TCP/MD-Link communication module, BACnet MS/TP communication module, Ethernet Powerlink

Complementary
output voltage	<= power supply voltage
permissible temporary current boost	1.1 x In 60 s normal duty) 1.5 x In 60 s heavy duty)
motor slip compensation	Not available in permanent magnet motor law Automatic whatever the load Adjustable Can be suppressed
acceleration and deceleration ramps	Linear adjustable separately from 0.01...9999 s
braking to standstill	By DC injection
protection type	Thermal protection motor Safe torque off motor Motor phase break motor Thermal protection drive Safe torque off drive Overheating drive Overcurrent between output phases and earth drive Overload of output voltage drive Short-circuit protection drive Motor phase break drive Overvoltages on the DC bus drive Line supply overvoltage drive Line supply undervoltage drive Line supply phase loss drive Overspeed drive Break on the control circuit drive
frequency resolution	Display unit 0.1 Hz Analog input 0.012/50 Hz
electrical connection	Control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 Line side screw terminal 2 x 70...3 x 120 mm² 2 x AWG 2/0...2 x 300 kcmil Motor screw terminal 2 x 70...3 x 120 mm² 2 x AWG 2/0...2 x 300 kcmil
connector type	RJ45 on the remote graphic terminal)Ethernet/Modbus TCP RJ45 on the remote graphic terminal)Modbus serial
physical interface	2-wire RS 485 Modbus serial
transmission frame	RTU Modbus serial
transmission rate	10/100 Mbit/s Ethernet IP/Modbus TCP 4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial
exchange mode	Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
data format	8 bits, configurable odd, even or no parity Modbus serial
type of polarization	No impedance Modbus serial
number of addresses	1…247 Modbus serial
method of access	Slave Modbus TCP
supply	External supply for digital inputs 24 V DC 19…30 V), <1,25 mA overload and short-circuit protection Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection Internal supply for digital inputs and STO 24 V DC 21…27 V), <200 mA overload and short-circuit protection
local signalling	Local diagnostic 3 LEDs Embedded communication status 3 LEDs dual colour) Communication module status 4 LEDs dual colour) Presence of voltage 1 LED red)
width	320 mm
height	852 mm
depth	390 mm
net weight	84 kg
analogue input number	3
analogue input type	AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits
discrete input number	8
discrete input type	DI1...DI6 programmable, 24 V DC <= 30 V)3.5 kOhm DI5, DI6 programmable as pulse input 0…30 kHz, 24 V DC <= 30 V) STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm
input compatibility	DI1...DI6 discrete input level 1 PLC EN/IEC 61131-2 DI5, DI6 discrete input level 1 PLC IEC 65A-68 STOA, STOB discrete input level 1 PLC EN/IEC 61131-2
discrete input logic	Positive logic (source) DI1...DI6), < 5 V, > 11 V Negative logic (sink) DI1...DI6), > 16 V, < 10 V Positive logic (source) DI5, DI6), < 0.6 V, > 2.5 V Positive logic (source) STOA, STOB), < 5 V, > 11 V
analogue output number	2
analogue output type	Software-configurable voltage AO1, AO2 0...10 V DC 470 Ohm 10 bits Software-configurable current AO1, AO2 0...20 mA 10 bits
sampling duration	2 ms +/- 0.5 ms DI1...DI4) - discrete input 5 ms +/- 1 ms DI5, DI6) - discrete input 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input 10 ms +/- 1 ms AO1) - analog output
accuracy	+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
linearity error	AI1, AI2, AI3 +/- 0.15 % of maximum value analog input AO1, AO2 +/- 0.2 % analog output
relay output number	3
relay output type	Configurable relay logic R1 fault relay NO/NC 100000 cycles Configurable relay logic R2 sequence relay NO 100000 cycles Configurable relay logic R3 sequence relay NO 100000 cycles
refresh time	Relay output R1, R2, R3)5 ms +/- 0.5 ms)
minimum switching current	Relay output R1, R2, R3 5 mA 24 V DC
maximum switching current	Relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC Relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC Relay output R1, R2, R3 inductive, cos phi = 0,4 7 ms 2 A 250 V AC Relay output R1, R2, R3 inductive, cos phi = 0,4 7 ms 2 A 30 V DC
isolation	Between power and control terminals
Variable speed drive application selection	Compressor centrifugal Building - HVAC Other application Food and beverage processing Fan Mining mineral and metal Pump Mining mineral and metal Fan Oil and gas Other application Water and waste water Screw compressor Building - HVAC Pump Food and beverage processing Fan Food and beverage processing Atomization Food and beverage processing Electro submersible pump (ESP) Oil and gas Water injection pump Oil and gas Jet fuel pump Oil and gas Compressor for refinery Oil and gas Centrifuge pump Water and waste water Positive displacement pump Water and waste water Electro submersible pump (ESP) Water and waste water Screw pump Water and waste water Lobe compressor Water and waste water Screw compressor Water and waste water Compressor centrifugal Water and waste water Fan Water and waste water Conveyor Water and waste water Mixer Water and waste water
Motor power range AC-3	55…100 kW 200…240 V 3 phases
mounting mode	Wall mount

Environment
insulation resistance	> 1 MOhm 500 V DC for 1 minute to earth
noise level	69,9 dB 86/188/EEC
volume of cooling air	600 m3/h
operating position	Vertical +/- 10 degree
maximum THDI	<48 % full load IEC 61000-3-12
electromagnetic compatibility	Electrostatic discharge immunity test level 3 IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 Conducted radio-frequency immunity test level 3 IEC 61000-4-6
pollution degree	2 EN/IEC 61800-5-1
vibration resistance	1.5 mm peak to peak 2…13 Hz)IEC 60068-2-6 1 gn 13…200 Hz)IEC 60068-2-6
shock resistance	15 gn 11 ms IEC 60068-2-27
relative humidity	5…95 % without condensation IEC 60068-2-3
ambient air temperature for operation	-15…50 °C without) 50…60 °C with derating factor)
ambient air temperature for storage	-40…70 °C
operating altitude	<= 1000 m without 1000...4800 m with current derating 1 % per 100 m
environmental characteristic	Chemical pollution resistance class 3C3 EN/IEC 60721-3-3 Dust pollution resistance class 3S3 EN/IEC 60721-3-3
standards	UL 508C EN/IEC 61800-3 Environment 1 category C2 EN/IEC 61800-3 Environment 2 category C3 EN/IEC 61800-3 EN/IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
product certifications	UL ATEX INERIS TÜV DNV-GL CSA ATEX zone 2/22 REACH
marking	CE

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
