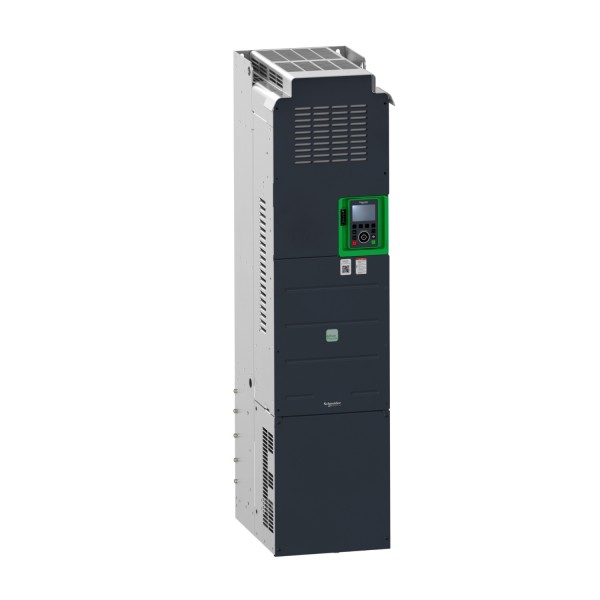

Tootekood: ATV930C11N4

Quick Overview

Saadavus: Tellimisel

8 647,66 € (ilma KM-ta)

Details

Main
range of product
Altivar Process ATV900
product or component type
Variable speed drive
device application
Industrial application
device short name
ATV930
variant
Standard version
With braking chopper
product destination
Synchronous motors
Asynchronous motors
EMC filter
Integrated with 150 m conforming to EN/IEC 61800-3 category C3
IP degree of protection
IP20 conforming to IEC 61800-5-1
IP20 conforming to IEC 60529
degree of protection
UL type 1 conforming to UL 508C
supply frequency
50...60 Hz - 5...5 %
network number of phases
3 phases
Single phase
[Us] rated supply voltage
380...480 V - 15...10 %
motor power kW
110 kW at 380...480 V (normal duty)
90 kW at 380...480 V (heavy duty)
motor power hp
150 hp at 380...480 V normal duty
125 hp at 380...480 V heavy duty
line current
201 A at 380 V (normal duty)
165 A at 480 V (normal duty)
170 A at 380 V (heavy duty)
143 A at 480 V (heavy duty)
prospective line Isc
50 kA
apparent power
121.8 kVA at 380...480 V (normal duty)
102.6 kVA at 380...480 V (heavy duty)
continuous output current
211 A at 4 kHz for normal duty
173 A at 4 kHz for heavy duty
maximum transient current
253 A during 60 s (normal duty)
259.5 A during 60 s (heavy duty)
asynchronous motor control profile
Constant torque standard
Variable torque standard
Optimized torque mode
synchronous motor control profile
Permanent magnet motor
Synchronous reluctance motor
speed drive output frequency
0…500 Hz
nominal switching frequency
2.5 kHz
switching frequency
1...8 kHz adjustable
2.5...8 kHz with derating factor
communication port protocol
Ethernet IP/Modbus TCP
Modbus
option module
Slot A: communication module for Profibus DP V1
Slot A: communication module for Profinet
Slot A: communication module for DeviceNet
Slot A: communication module for EtherCAT
Slot A: communication module for CANopen daisy chain RJ45
Slot A: communication module for CANopen SUB-D 9
Slot A: communication module for CANopen screw terminals
Slot A/slot B/slot C: digital and analog I/O extension module
Slot A/slot B/slot C: output relay extension module
Slot B: 5/12 V digital encoder interface module
Slot B: analog encoder interface module
Slot B: resolver encoder interface module
Complementary
output voltage
<= power supply voltage
motor slip compensation
Adjustable
Automatic whatever the load
Can be suppressed
Not available in permanent magnet motor law
acceleration and deceleration ramps
Linear adjustable separately from 0.01...9999 s
S, U or customized
braking to standstill
By DC injection
protection type
Thermal protection: motor
Safe torque off: motor
Motor phase break: motor
Thermal protection: drive
Safe torque off: drive
Overheating: drive
Overcurrent between output phases and earth: drive
Overload of output voltage: drive
Short-circuit protection: drive
Motor phase break: drive
Overvoltages on the DC bus: drive
Line supply overvoltage: drive
Line supply undervoltage: drive
Line supply phase loss: drive
Overspeed: drive
Break on the control circuit: drive
frequency resolution
Display unit: 0.1 Hz
Analog input: 0.012/50 Hz
electrical connection
Line side: screw terminal2 x 50...3 x 120 mm²/2 x AWG 1/0...2 x 300 kcmil
DC bus: screw terminal0.5...1.5 mm²/AWG 20...AWG 16
Control: 0.5...1.5 mm²/AWG 20...AWG 16
connector type
2 RJ45 for Ethernet IP/Modbus TCP on terminal
1 RJ45 for Modbus on terminal
physical interface
2-wire RS 485 for Modbus serial
transmission frame
RTU for Modbus serial
transmission rate
10/100 Mbit/s for Ethernet IP/Modbus TCP
4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial
data format
8 bits, configurable odd, even or no parity for Modbus serial
type of polarization
No impedance for Modbus serial
number of addresses
1…247 for Modbus serial
method of access
Slave Modbus TCP
local signalling
Local diagnostic: 3 LEDs (mono/dual colour)
5 LEDs (dual colour)
2 LEDs (dual colour)
1 LED (red)
width
320 mm
height
1205 mm
depth
393 mm
net weight
104 kg
isolation
Between power and control terminals
Environment
insulation resistance
> 1 MOhm 500 V DC for 1 minute to earth
noise level
69.9 dB conforming to 86/188/EEC
vibration resistance
1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6
1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6
shock resistance
6 gn for 11 ms conforming to IEC 60068-2-27
operating position
Vertical +/- 10 degree
maximum THDI
<48 % full load conforming to IEC 61000-3-12
electromagnetic compatibility
Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
environmental characteristic
Chemical pollution resistance class 3C3 conforming to EN/IEC 60721-3-3
Dust pollution resistance class 3S3 conforming to EN/IEC 60721-3-3
pollution degree
2 conforming to IEC 61800-5-1
relative humidity
5…95 % without condensation conforming to IEC 60068-2-3
ambient air temperature for operation
-15…50 °C (without)
50…60 °C (with derating factor)
ambient air temperature for storage
-25…70 °C
operating altitude
with current derating above 1000m
standards
UL 508C
EN/IEC 61800-3
Environment 1 category C2 EN/IEC 61800-3
Environment 2 category C3 EN/IEC 61800-3
EN/IEC 61800-5-1
IEC 61000-3-12
IEC 60721-3
IEC 61508
IEC 13849-1
product certifications
UL
CSA
TÜV
REACH
marking
CE
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
