Details
Characteristics
| range of product | Multifix | |
|---|---|---|
| range | Multifix | |

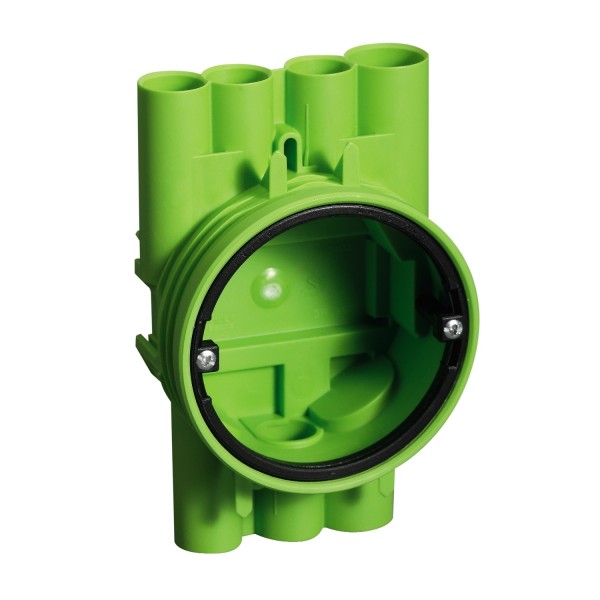

| product name | Multifix BP | |
| device short name | BP-201 | |
| product or component type | Junction box | |
| device application | Single boardDouble board | |
| quantity per set | Set of 50 |
| device mounting | Flush | |
|---|---|---|
| device composition | With stubs located 13 mm from the front edge of the box | |
| number of stubs | 5 rigid - diameter: 16 mm2 rigid - diameter: 20 mm | |
| number of gangs | 1 gang | |
| colour tint | Green (NCS 1030-G30Y) | |
| material | PEHD (polyethylene high density) | |
| diameter | 82 mm | |
| length | 130 mm | |
| width | 48 mm | |
| net weight | 0.08 kg | |
| internal depth | 46 mm | |
| maximum cable cross section | 2.5 mm² | |
| sealing | Without | |
| surface treatment | Untreated |
| environmental characteristic | Halogen free |
|---|
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) | |
| Environmental Disclosure | ||
| Circularity Profile | No need of specific recycling operations |
| Warranty | 18 months |
|---|
