Details
Characteristics
| range of product | Multifix | |
|---|---|---|
| product name | Multifix Eco | |
| device short name | JR00 | |

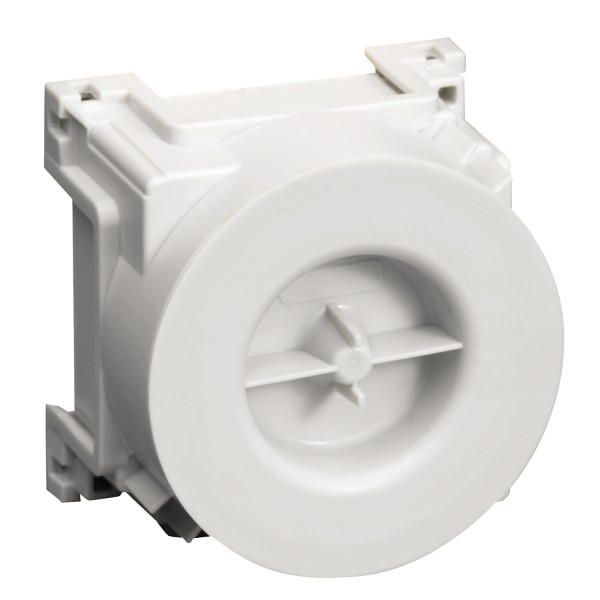

| product or component type | Apparatus box | |
| device application | Single board | |
| quantity per set | Set of 100 |
| device mounting | Flush | |
|---|---|---|
| device composition | CoverAdjustable threaded screw ringWithout stub | |
| mounting support | Board - thickness: 10…27 mm | |
| number of gangs | 1 gang | |
| colour tint | Grey (NCS 3500) | |
| material | PEHD (polyethylene high density) | |
| distance between supports | 60 mm | |
| diameter | 70 mm | |
| internal depth | 55 mm | |
| length | 71 mm | |
| width | 71 mm | |
| depth | 57 mm | |
| net weight | 0.069 kg | |
| sealing | Without | |
| connections - terminals | Snap-on |
| standards | IEC 60670-1 | |
|---|---|---|
| ambient air temperature for operation | -25…90 °C | |
| IP degree of protection | IP20 | |
| environmental characteristic | Halogen free |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) | |
| Environmental Disclosure | ||
| Circularity Profile | No need of specific recycling operations |
| Warranty | 18 months |
|---|
