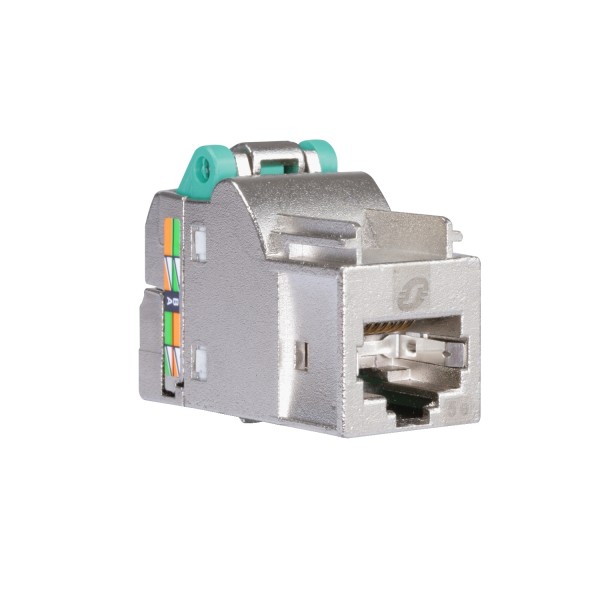

Actassi S-One Connector RJ45 Shielded Cat 5e bag x 1

Details

Main
range	Actassi
product type	RJ45 network socket
device presentation	Integrated one piece design
colour tint	Wire organizer: green (ABS + PC) Connector: silver (zamak)
Wiring Colour configuration	568 A/B
type of packing	Individual bag
quantity per set	Set of 1

Complementary
[In] rated current	1.5 A at 25 °C
voltage proof	1000 V AC/DC peak, between contacts 1500 V AC/DC peak, between contacts and shield
contact resistance	20 mOhm
insulation resistance	Initial insulation resistance: >= 500 MOhm at 100 V DC
AWG gauge	AWG 24...AWG 23
durability	750 cycles
coupling attenuation	>= 45 dB at 30…100 MHz >= 85 - 20 x log(f) dB at 100…1000 MHz
contact pins	8 pins of copper alloy and gold plated conforming to IEC 60603-7
Shield Type	Metallic: 360° self adjusting + drain wire contact Integrated short circuit barrier
pulling force	50 N during 60 s
transfer impedance	<= 0.1 Ohm at 1 MHz <= 0.2 Ohm at 10 MHz <= 1.6 Ohm at 80 MHz
transverse conversion loss	>= 50 dB >= 68 - 20 x log(f) dB at 1…100000 kHz
tool type	Without tool
cable outer diameter	0.9…1.4 mm
compatible LAN cable types	S/FTP F/FTP SF/UTP F/UTP U/FTP
communication network category	5e
supported applications	1000BASE-T
protocols	VoIP (Voice IP) PoE+ (Power over Ethernet)
product compatibility	RJ45 plug RJ11 plug
transmission frequency	0…100 MHz
type of footprint	S-One
height	28 mm
length	35 mm
width	18 mm
	Europe

Environment
operational temperature range	-40…70 °C
climatic category	40/070/21 (21 days)
flame retardance	UL94-V0 conforming to UL listed
environmental characteristic	REACH PEP (Energy depletion)
standards	ANSI/TIA-568-C.2 IEC 60603-7-2 ISO/IEC 11801:2011 Ed.2.2 UL 1863

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
