Details
Characteristics

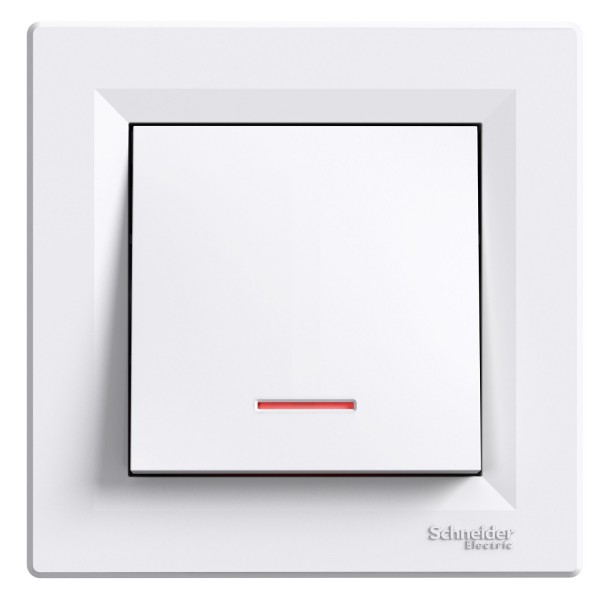

| Range | Asfora | |
|---|---|---|
| product or component type | Switch | |
| device presentation | Complete product | |
| load type | Load for energy saving lamps with ballast: 100 W | |
| colour tint | White | |
| type of packing | Flow-pack |
| device mounting | Flush | |
|---|---|---|
| switch function | 1-pole 1-way | |
| number of rocker | 1 | |
| local signalling | LED | |
| power range | 2300 W | |
| rated current | 10 AX at 250 V AC | |
| connections - terminals | Lift terminals | |
| number of cables | 2 cable(s) 2.5 mm² | |
| cable stiffness | FlexibleRigidSolid stranded | |
| wire stripping length | 13.0 mm | |
| material | ABS (acrylonitrile butadiene-styrene) | |
| surface finish | Glossy | |
| conductor material | Copper | |
| fixing mode | Screws or claws51…70 mm | |
| height | 83 mm | |
| width | 83 mm | |
| depth | 43.0 mm | |
| projecting depth | 15 mm | |
| net weight | 0.0758 kg |
| standards | IEC 60669-1 | |
|---|---|---|
| product certifications | VDE | |
| quality labels | CE | |
| IP degree of protection | IP20 | |
| ambient air temperature for operation | -5…40 °C |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information | |
| Environmental Disclosure | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
|---|
