Details
Characteristics
| Range | Asfora | |
|---|---|---|

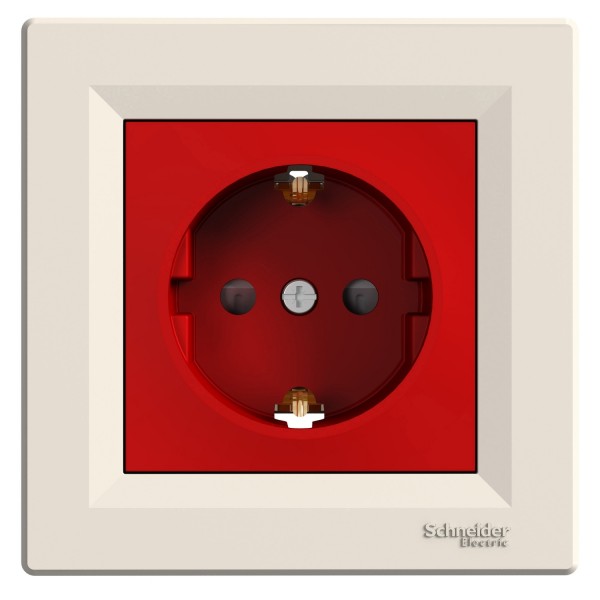

| product or component type | Socket-outlet | |
| outlet standard description | Side earth | |
| outlet poles configuration | 2P + E with shutters | |
| device presentation | Complete product | |
| socket additional information | Shuttered | |
| colour tint | Cream and red | |
| type of packing | Flow-pack |
| socket number | 1 | |
|---|---|---|
| device mounting | Flush | |
| power range | 3680 W | |
| rated current | 16 A at 250 V AC | |
| connections - terminals | Lift terminals | |
| number of cables | 2 cable(s) 2.5 mm² | |
| cable stiffness | FlexibleRigidSolid stranded | |
| wire stripping length | 13.0 mm | |
| material | ABS (acrylonitrile butadiene-styrene): cover frameABS + PC: central plate | |
| surface finish | Glossy | |
| conductor material | Copper | |
| fixing mode | Screws or claws51…69 mm | |
| height | 83 mm | |
| width | 83 mm | |
| depth | 42 mm | |
| projecting depth | 10 mm | |
| quantity per set | 1 | |
| net weight | 0.081 kg |
| standards | IEC 60884-1 | |
|---|---|---|
| product certifications | TSEVDEAENOR | |
| IP degree of protection | IP20 |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) | |
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
|---|
