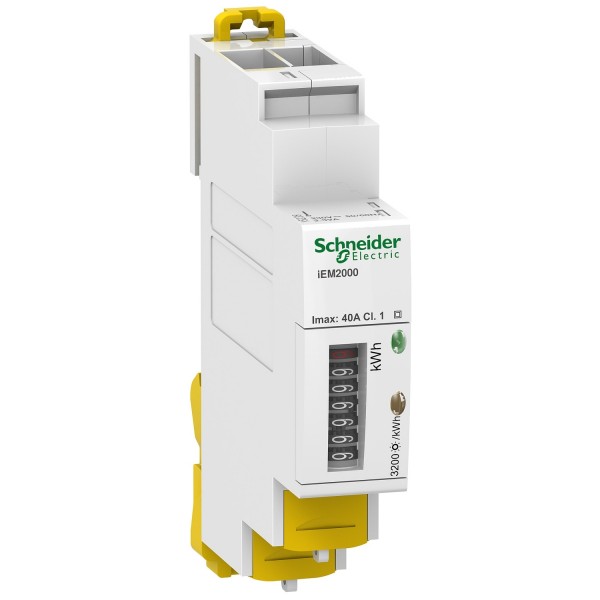

modular single phase power meter iEM2000 - 230V - 40A - Arvestid ja lugejad - Toiteallikad ja Mõõteseadmed

Details

Complementary
poles description	1P + N
type of measurement	Active power
device application	Sub billing
accuracy class	Class 1 active energy IEC 62053-21
Input type	direct input
Rated current	40 A
rated voltage	230 V +/- 20 %
network frequency	50 Hz 60 Hz
frequency measurement range	48…62 Hz
technology type	Electronic
display type	Electromechanical
sampling rate	32 samples/cycle
measurement current	0…40 A
display digits	7
maximum value measured	999999.9 kWh
communication port protocol	-
communication port support	-
local signalling	Green indicator light power ON Yellow indicator light metering and activity 3200 p/kWh
Digital inputs	0
Digital outputs	0
maximum power consumption in VA	10 VA
mounting mode	Clip-on
mounting support	DIN rail
connections - terminals	Power circuit tunnel type terminals bottom) 1 10 mm²
tightening torque	Power circuit 1,2 N.m
standards	IEC 62053-21 IEC 61557-12
product certifications	MID CE

Environment
IP degree of protection	IP40 IEC 60529
ambient air temperature for operation	-20…70 °C -20…55 °C
ambient air temperature for storage	-40…70 °C
relative humidity	0…95 % 55 °C
colour	White
9 mm pitches	2
width	18 mm
height	95 mm
depth	67 mm
net weight	0,073 kg

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
