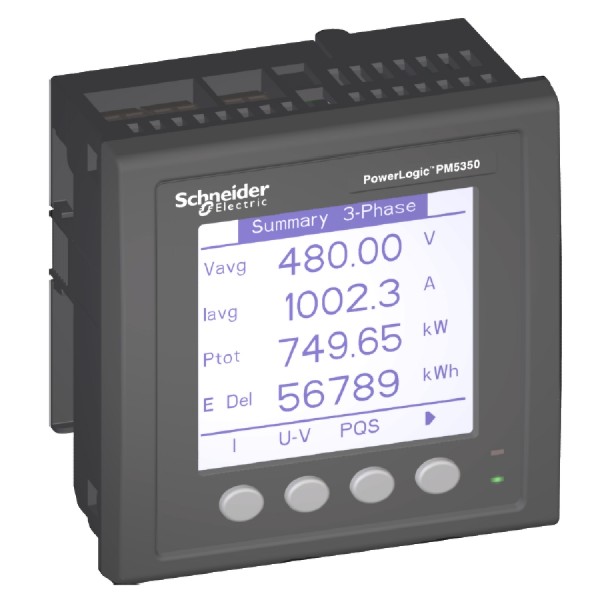

PM5350 Power & Energy meter with THD, alarming

Ülevaaded: 0

Tootekood: METSEPM5350

Quick Overview

Saadavus: Tellimisel

409,38 € (ilma KM-ta)

Details

Main
range
PowerLogic
product name
PowerLogic PM5350
device short name
PM5350
product or component type
Power meter
Complementary
power quality analysis
total demand distortion
total harmonic distortion
device application
Power monitoring
type of measurement
Current
Voltage
Frequency
Power factor
Energy
Phase angle
Apparent power
Active power
Reactive power
supply voltage
85...265 V AC 45...65 Hz
100...300 V DC
network frequency
50 Hz
60 Hz
[In] rated current
5 A
1 A
type of network
1P + N
3P + N
3P
maximum power consumption in VA
9,6 VA
ride-through time
80 ms 120 V AC typical
100 ms 230 V AC typical
100 ms 415 V AC typical
display type
Backlit LCD
display resolution
6 lines
sampling rate
32 samples/cycle
measurement current
0…1 A
0…5 A
analogue input type
current 0.05...9 A <= 0.3 Ohm)
measurement voltage
20…690 V AC phase to phase
20…400 V AC phase to neutral
frequency measurement range
45…70 Hz
number of inputs
4 digital
measurement accuracy
Current 0.3 %
Voltage 0.3 %
Frequency 0.05 %
Power factor 0.005 %
accuracy class
Class 0.5S active energy IEC 62053-22
Class 0.5 active energy IEC 61557-12
Class 3 reactive energy IEC 62053-23
Class 2 reactive energy IEC 61557-12
Class 0.5 power IEC 61557-12
number of outputs
2 relay
information displayed
Tariff 4)
communication port protocol
JBUS
Modbus RTU and ASCII 9.6, 19.2 and 38.4 kbauds
communication port support
Terminal block RS485
data recording
Min/max of instantaneous values
Alarms
connections - terminals
Voltage circuit screw terminal block4
Control circuit screw terminal block2
Current transformer screw terminal block6
Input/output circuit screw terminal block6
Relay output screw terminal block4
Ethernet network RJ45 connector
mounting mode
Flush-mounted
type of installation
Indoor installation
standards
IEC 61010-1
product certifications
CE
CULus
width
96 mm
depth
44 mm
height
96 mm
net weight
0,25 kg
Environment
electromagnetic compatibility
Limitation of voltage changes, voltage fluctuations and flicker in low-voltage IEC 61000-3-3
Electrostatic discharge IEC 61000-4-2
Susceptibility to electromagnetic fields IEC 61000-4-3
Electrical fast transient/burst immunity test IEC 61000-4-4
1.2/50 µs shock waves immunity test IEC 61000-4-5
Conducted RF disturbances IEC 61000-4-6
Immunity to impulse waves IEC 61000-4-12
Conducted and radiated emissionsclass A EN 55011
Limits for harmonic current emissions IEC 61000-3-2
overvoltage category
III
IP degree of protection
Back IP30 IEC 60529
Front face IP51 IEC 60529
relative humidity
0…95 % 50 °C
pollution degree
2
ambient air temperature for operation
-40…85 °C
ambient air temperature for storage
-25…70 °C
operating altitude
0...3000 m
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
