Details
Characteristics
| range of product | Altivar | |
|---|---|---|

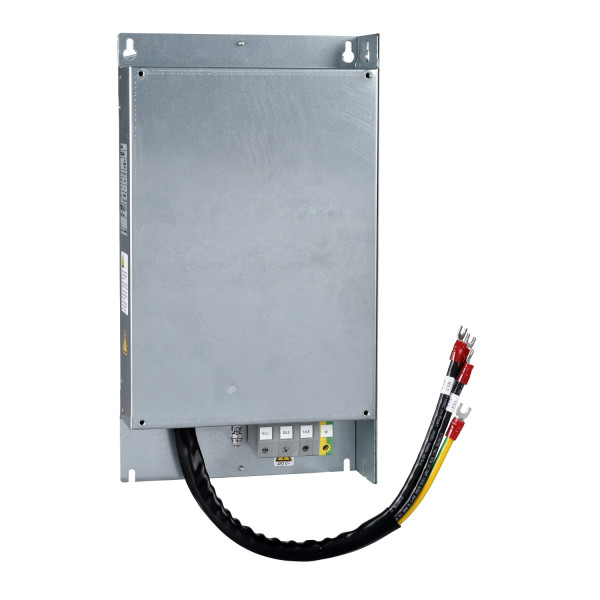

| product or component type | EMC input filter | |
| range compatibility | Altivar 71Altivar 61 | |
| product compatibility | ATV61HD15N4ATV71HD15N4ATV71WD15N4 | |
| product specific application | Radio interference input filter | |
| network number of phases | Three phase |
| electrical connection | Terminal 25 mm² AWG 2 | |
|---|---|---|
| tightening torque | 4 N.m | |
| maximum earth leakage current | 14 mA at 400 V 50 Hz14 mA at 230 V 50 Hz | |
| power supply voltage | 380…500 V200…240 V | |
| tolerance | 10 % | |
| net weight | 12 kg |
| IP degree of protection | IP20IP41 (upper part) | |
|---|---|---|
| relative humidity | 0…93 % conforming to IEC 68-2-3 | |
| ambient air temperature for operation | -10…50 °C | |
| ambient air temperature for storage | -40…65 °C | |
| operating altitude | <= 1000 m without current derating1000...3000 m with current derating 1 % per 100 m | |
| vibration resistance | 1 gn (f= 13…150 Hz) conforming to IEC 60068-2-61.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6 | |
| shock resistance | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 | |
| standards | EN 133200 EN/IEC 61800-3 |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
|---|---|---|
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation |
| Warranty | 18 months |
|---|
