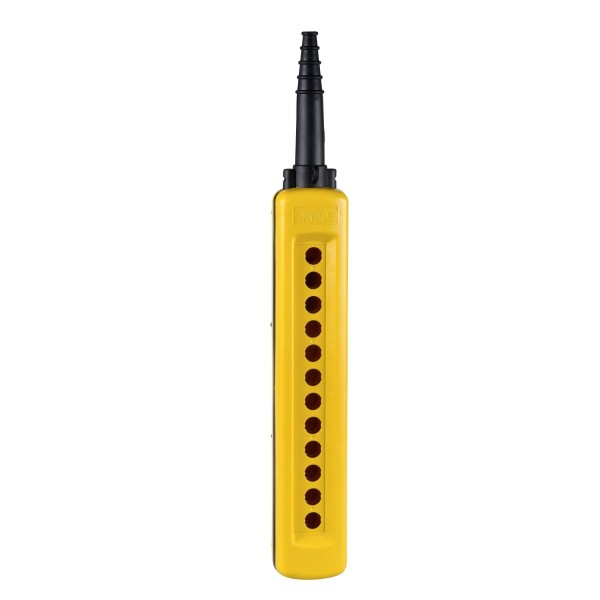

empty pendant control station XAC-A - 12 openings in 1 column

Details

Complementary
control station type	Double insulated
enclosure material	Polypropylene
electrical circuit type	Control circuit
enclosure type	Empty enclosure
number of cut-out	12 cut-outs
control station colour	Yellow
cable entry	Rubber sleeve with stepped entry 8…26 mm
guard rail	Without
vertical operator cut-out centre	30 mm
standards	CSA C22.2 No 14 EN/IEC 60947-5-1 UL 508 EN/IEC 60204-32
product certifications	UL CSA CCC GOST
protective treatment	TH
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
shock resistance	100 gn conforming to IEC 60068-2-27
overvoltage category	Class II conforming to IEC 61140
IP degree of protection	IP65 conforming to IEC 60529
IK degree of protection	IK08 conforming to EN 50102
mechanical durability	1000000 cycles
net weight	1 kg

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile

Contractual warranty
Warranty	18 months
