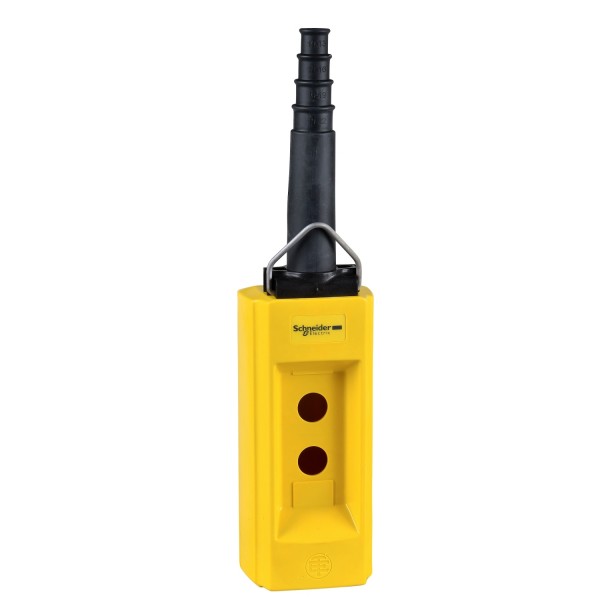

empty pendant control station XAC-B

Details

Complementary
control station type	Double insulated
enclosure material	Glass reinforced polyester
electrical circuit type	Power circuit Control circuit
enclosure type	Empty enclosure
number of cut-out	2 cut-outs
control station colour	Yellow
cable entry	Rubber sleeve with stepped entry 10…22 mm
guard rail	Without
vertical operator cut-out centre	40 mm
standards	EN/IEC 60947-5-1 CSA C22.2 No 14
product certifications	CSA type 4
protective treatment	TH
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
shock resistance	100 gn conforming to IEC 60068-2-27
overvoltage category	Class II conforming to IEC 61140
IP degree of protection	IP65 conforming to IEC 60529
IK degree of protection	IK08 conforming to EN 50102
mechanical durability	1000000 cycles
net weight	0.76 kg

Offer Sustainability
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration

Contractual warranty
Warranty	18 months
