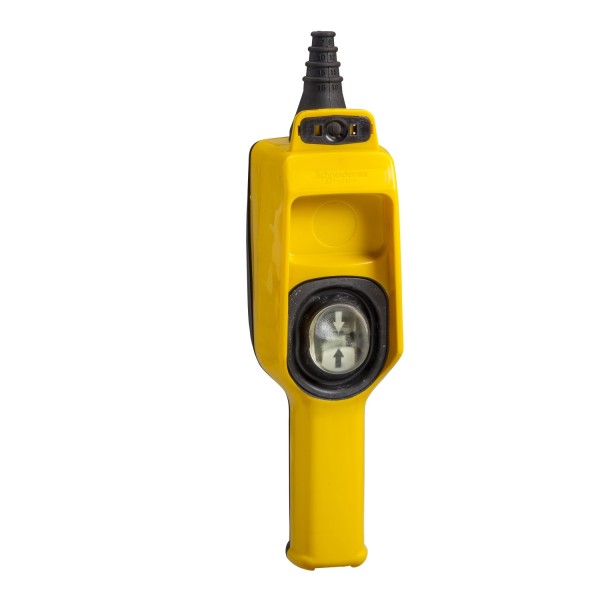

empty pendant control station XAC-D - directional operator, 1 opening

Details

Complementary
control station type	Double insulated
enclosure material	Polypropylene
control type	Intuitive
electrical circuit type	Control circuit Power circuit
enclosure type	Empty enclosure
number of cut-out	1 cut-out
control station colour	Yellow
cable entry	Rubber sleeve with stepped entry 7…18 mm
guard rail	Without
standards	UL 508 EN/IEC 60947-5-1 CSA C22.2 No 14
protective treatment	TH
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	15 gn 10…500 Hz)IEC 60068-2-6
shock resistance	70 gn IEC 60068-2-27
overvoltage category	Class II IEC 61140
IP degree of protection	IP65 IEC 60529
IK degree of protection	IK08 EN 50102
mechanical durability	1000000 cycles
net weight	0,345 kg

Offer Sustainability
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon

Contractual warranty
Garantii	18 months
